No. Name
Upstream unit connector
[4]
Downstream unit connector
[5]
FG terminal block
[6]

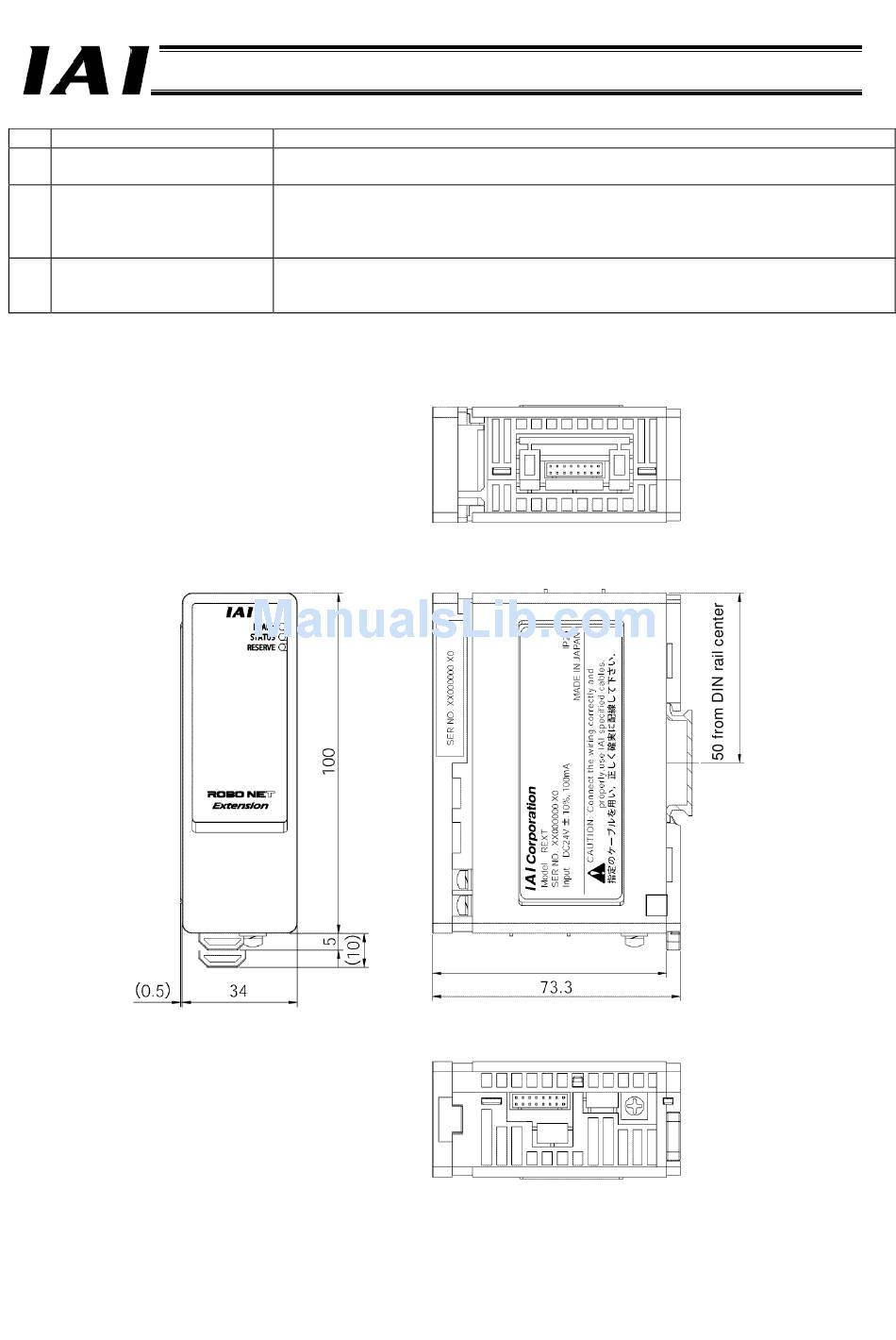

6.4.2 External Dimensions

This connector is used to connect a group of upstream units (units in the upper stage)
using a unit link cable (CB-REXT-SIO).
This connector is used to connect a group of downstream units (units in the lower stage)
using a unit link cable (CB-REXT-SIO).
To establish connection via external SIO link, use a controller connection cable
(CB-REXT-CTL).
This terminal block is used to connect grounding wires (M3 round terminals).
It functions as a terminal block for connecting the shielded wire of the unit link cable
(CB-REXT-SIO) or controller connection cable (CB-REXT-CTL).
Description
69.3 from DIN rail surface
(69.3 from DIN rail surface)
Part 1 Specification
231
