(5)
Clamp filter
Install clamp filters of the following type on the field network cable, motor cable and encoder cable. Install them
immediately near the cable connectors on the controller unit.
One clamp filter is required for each gateway unit, and two for each controller unit. On the field network cable, install
each clamp filter by looping it twice around the cable.
Manufacturer: TDK Corp.
Model: ZCAT3035-1330

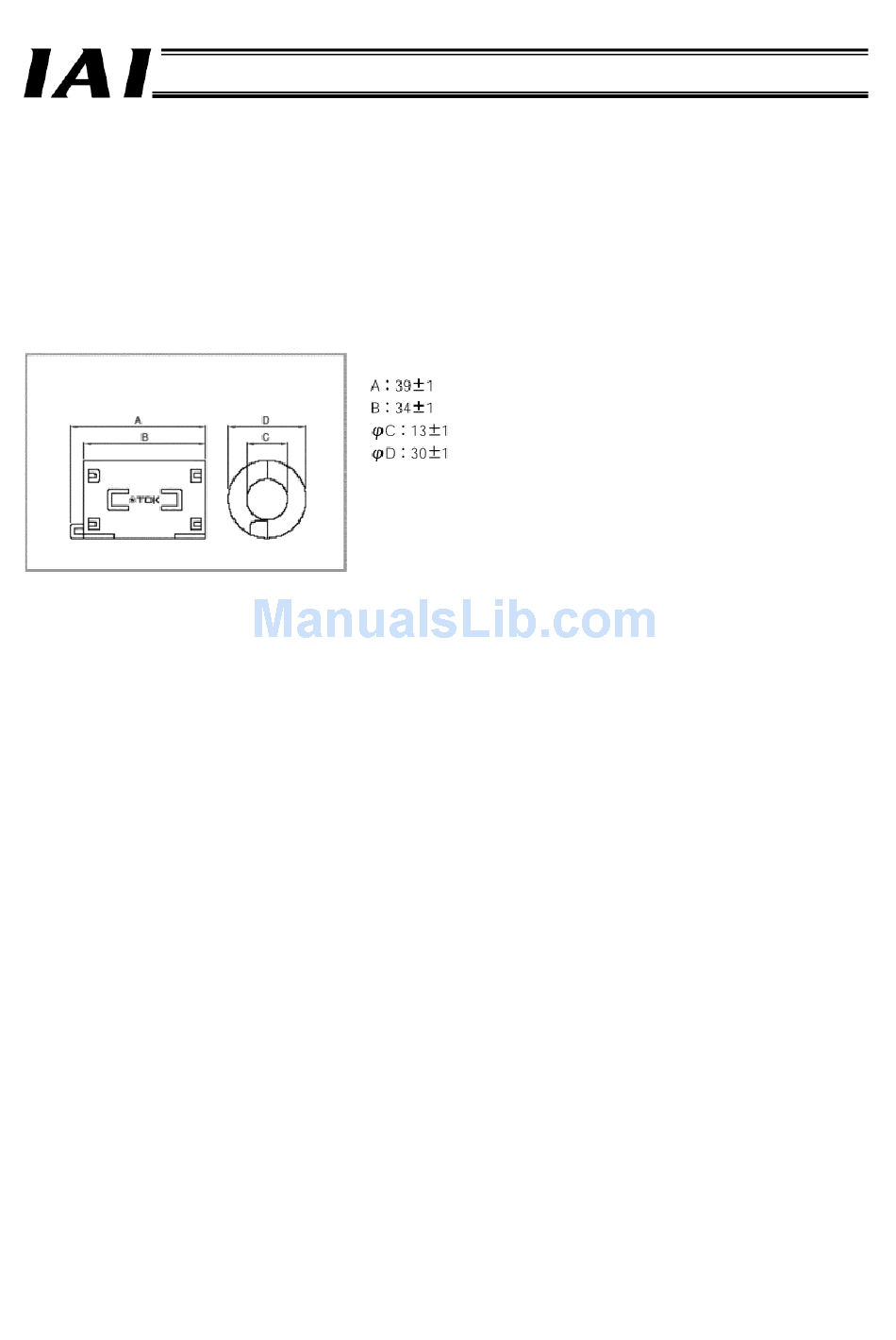

Shape/dimensions
ZCAT type
External View of Clamp Filter
Shape/dimensions (mm)
CE Mark
