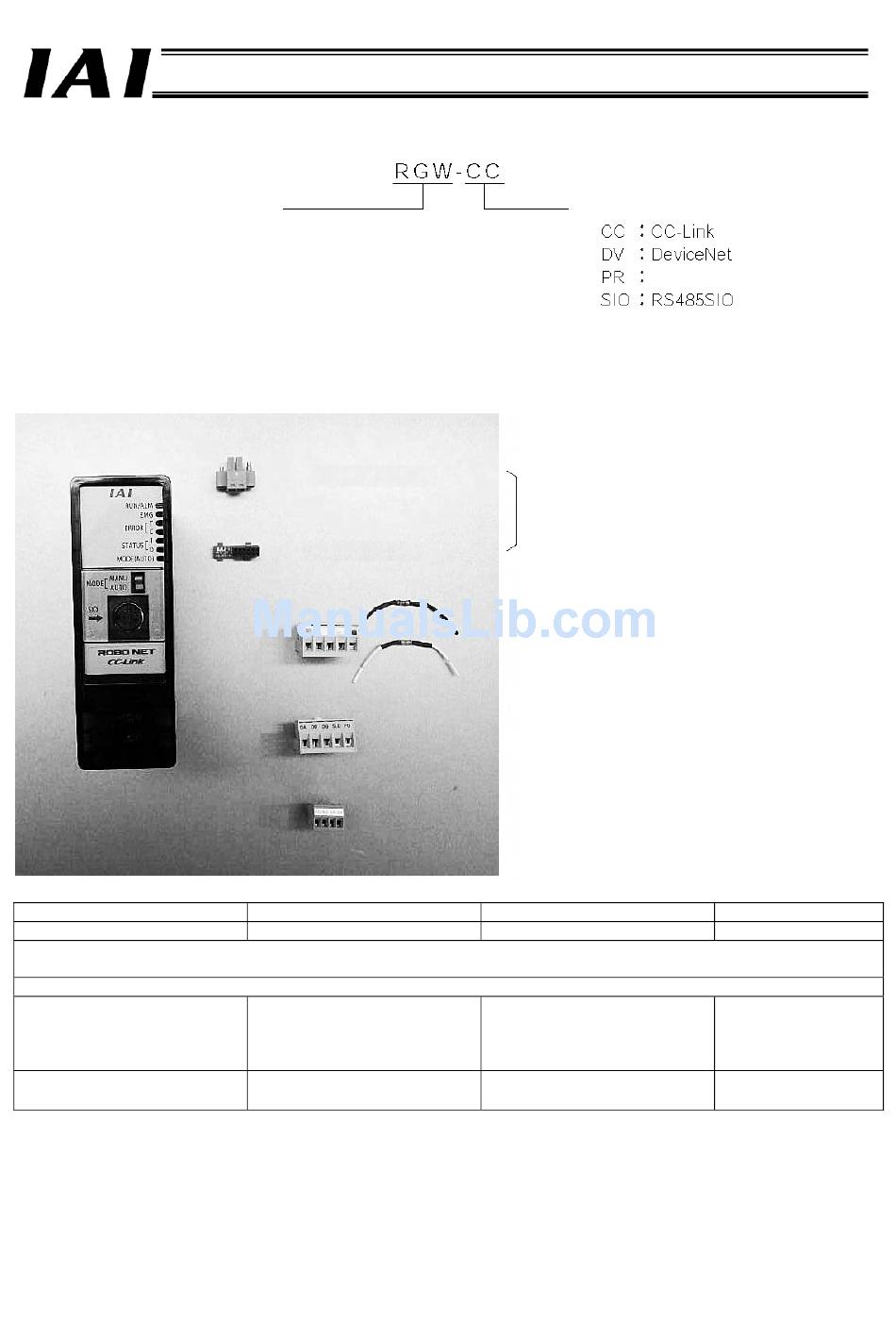

3.2 How to Read the Model Name
Dedicated GateWayR unit for ROBONET
3.3

GateWayR unit and Accessories

The four types of units each come with a different set of accessories appropriate for the applicable field network.
Main unit
CC-Link
Fig. [1]
• CC-Link communication
connector
MSTB2.5/5-ST-5.08ABGYAU
(by Phoenix Contact)
• Terminal resistors
110 Ω, 130 Ω (1/2 W)
Base model
EMG connector
Terminal resistor circuit board
[1]
[2]
[3]
DeviceNet
Fig. [2]
MC1.5/2-STF-3.81 (by Phoenix Contact)
Terminal resistor circuit board (model TN-1)
• DeviceNet communication
connector
MSTB2.5/5-ST-5.08ABGYAU
(by Phoenix Contact)
None
Common accessories
Dedicated accessories for CC-Link type
Communication connector, terminal resistors
Dedicated accessory for DeviceNet type
Communication connector
Dedicated accessory for RS485 SIO communication type
Communication connector
RS485 SIO communication
EMG connector
• RS485 SIO communication
MC1.5/4-ST-3.5
(by Phoenix Contact)
Part 1 Specification
Supported field network
PROFIBUS
Fig. [3]
connector
None
PROFIBUS
-
None
None
