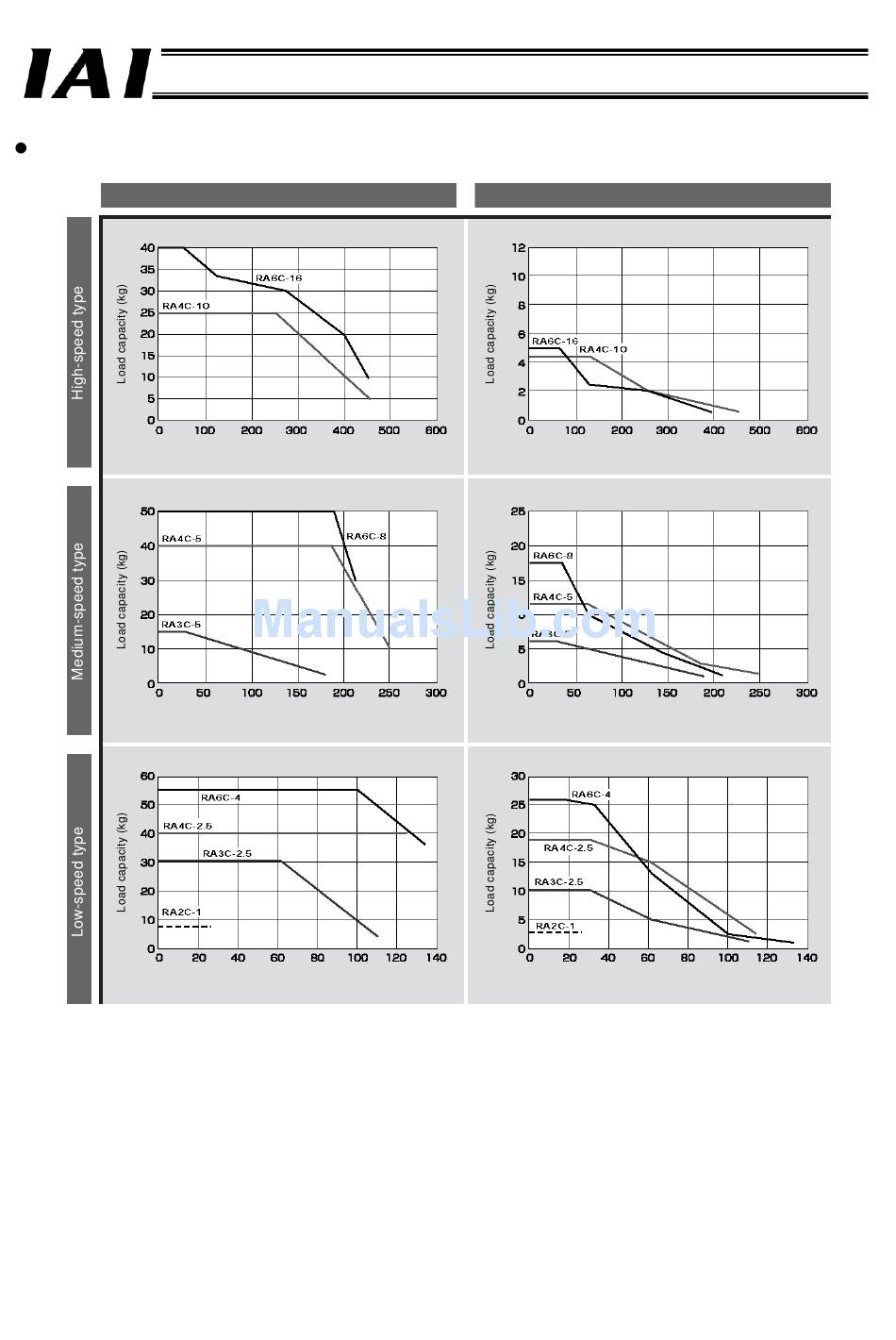

Correlation Diagrams of Speed and Load Capacity – Standard Rod Type
Horizontal installation
(Note) In the above graphs, the number following the type name indicates the lead.
(Note 1) The figures for horizontal installation assume use of an external guide or guides.
(Note 1)
Speed (mm/sec)
Speed (mm/sec)
Speed (mm/sec)
Appendix
Vertical installation
Speed (mm/sec)
Speed (mm/sec)
Speed (mm/sec)
