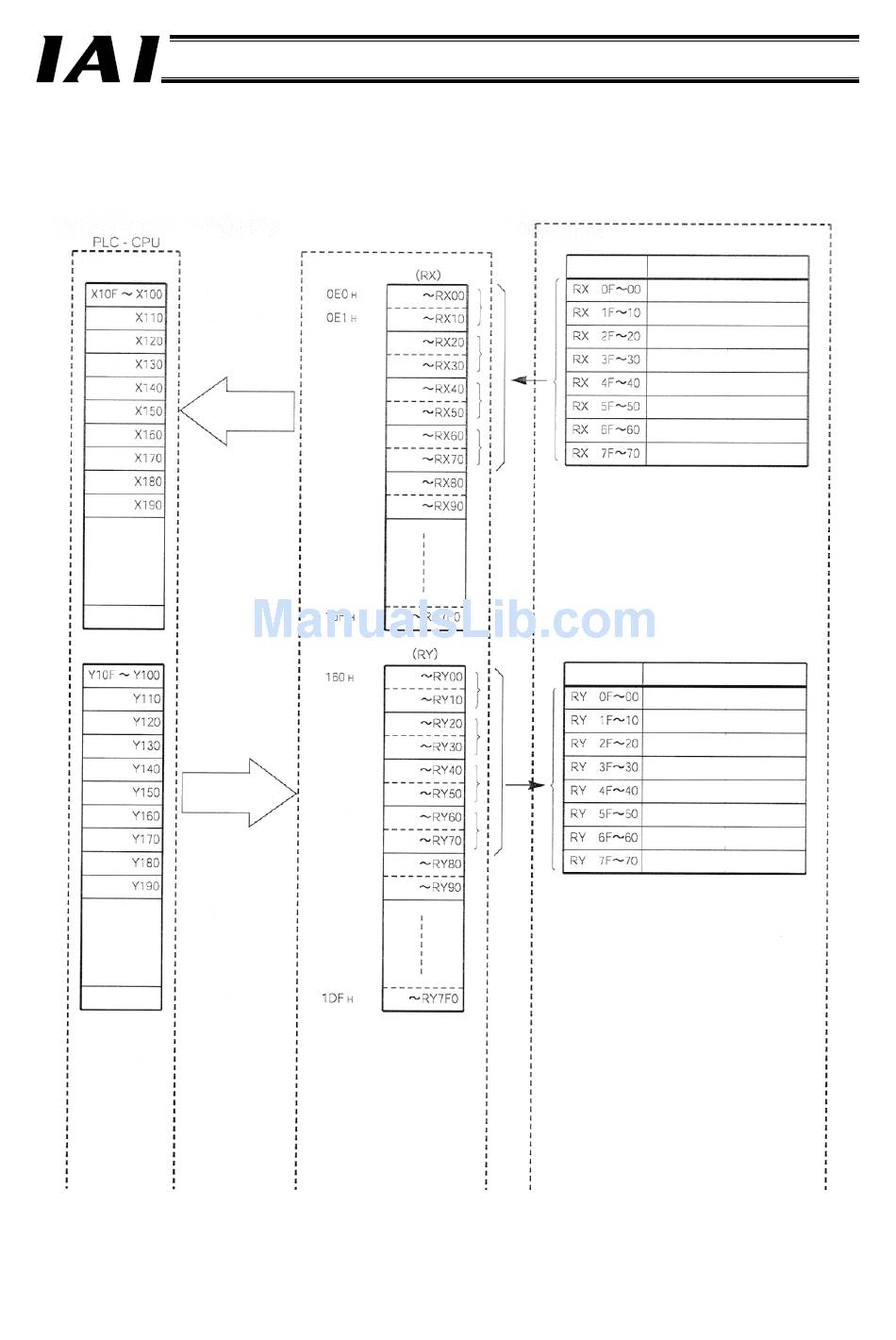

5.4.1 Address Correlation Diagram for CC-Link System (Example)

automatically.
Refreshed
automatically.
336
Buffer memory of master station
(station number 0)
Refreshed
Part 2 Startup Chapter
Gateway R unit (RGW-CC) (station number 1)
Input register Upper byte
Gateway status signal 0
Gateway status signal 1
Response command
Data 0
Data 1
Data 2
Data 3
(Cannot be used)
Output register Upper byte
Gateway control signal 0
Gateway control signal 1
Request command
Data 0
Data 1
Data 2
Data 3
(Cannot be used)
Lower byte
Lower byte
