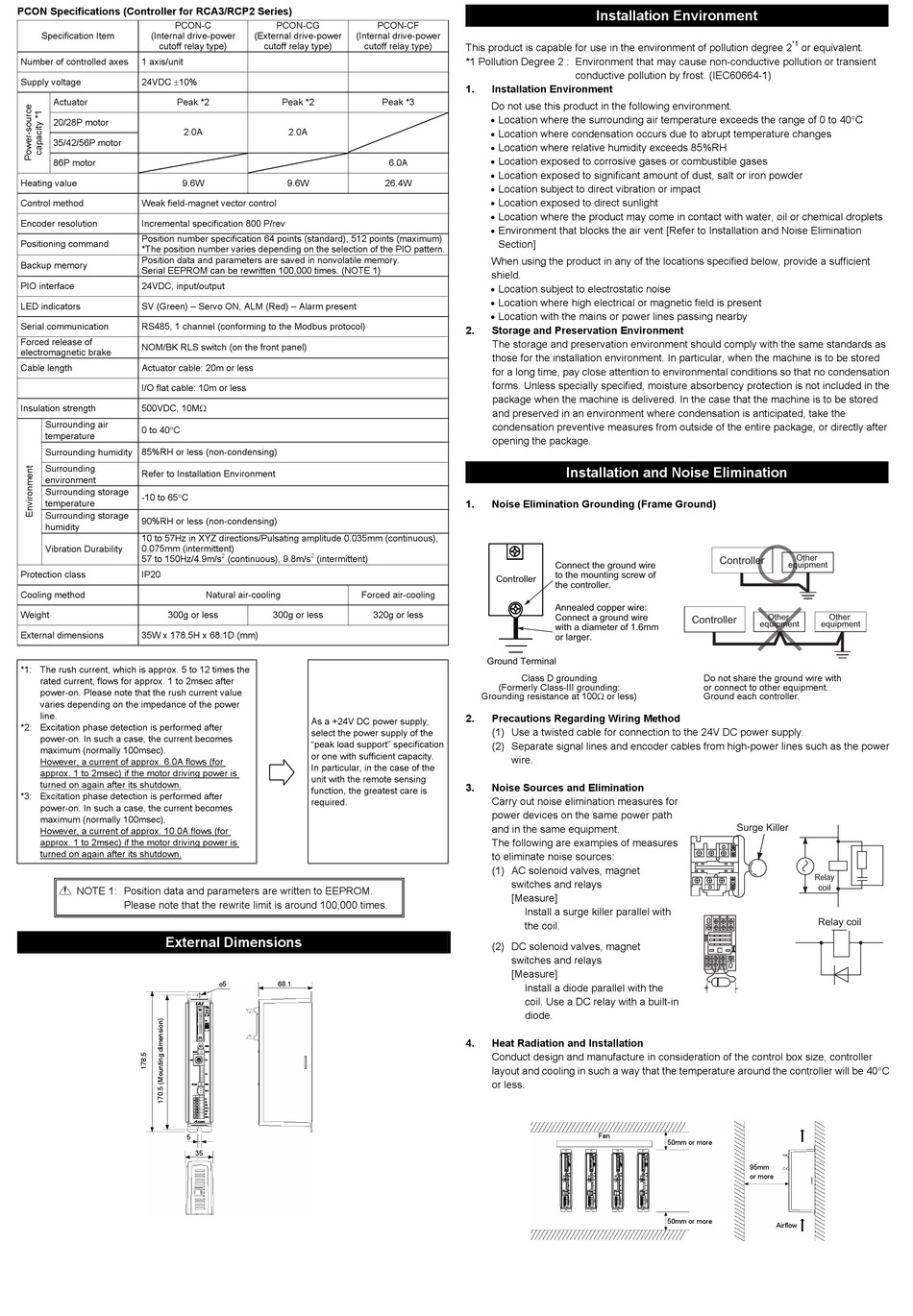

PCON Specifications (Controller for RCA3/RCP2 Series)
PCON-C
Specification Item (Internal drive-power
cutoff relay type)
Number of controlled axes 1 axis/unit
24VDC 10%
Supply voltage
Actuator Peak *2
20/28P motor
2.0A
35/42/56P motor
86P motor
Heating value 9.6W
Control method Weak field-magnet vector control
Encoder resolution Incremental specification 800 P/rev
Position number specification 64 points (standard), 512 points (maximum)
Positioning command
*The position number varies depending on the selection of the PIO pattern.
Position data and parameters are saved in nonvolatile memory.
Backup memory
Serial EEPROM can be rewritten 100,000 times. (NOTE 1)
PIO interface 24VDC, input/output
LED indicators SV (Green) – Servo ON, ALM (Red) – Alarm present
Serial communication RS485, 1 channel (conforming to the Modbus protocol)
Forced release of
NOM/BK RLS switch (on the front panel)
electromagnetic brake
Cable length Actuator cable: 20m or less
I/O flat cable: 10m or less
Insulation strength 500VDC, 10M
Surrounding air
0 to 40C
temperature
Surrounding humidity 85%RH or less (non-condensing)
Surrounding
Refer to Installation Environment
environment
Surrounding storage
-10 to 65C
temperature
Surrounding storage
90%RH or less (non-condensing)
humidity
10 to 57Hz in XYZ directions/Pulsating amplitude 0.035mm (continuous),
Vibration Durability 0.075mm (intermittent)
57 to 150Hz/4.9m/s
Protection class IP20
Cooling method
Weight 300g or less

External dimensions

35W x 178.5H x 68.1D (mm)
*1: The rush current, which is approx. 5 to 12 times the
rated current, flows for approx. 1 to 2msec after
power-on. Please note that the rush current value
varies depending on the impedance of the power
line.
*2: Excitation phase detection is performed after
power-on. In such a case, the current becomes
maximum (normally 100msec).
However, a current of approx. 6.0A flows (for
approx. 1 to 2msec) if the motor driving power is
turned on again after its shutdown.
*3: Excitation phase detection is performed after
power-on. In such a case, the current becomes
maximum (normally 100msec).
However, a current of approx. 10.0A flows (for
approx. 1 to 2msec) if the motor driving power is
turned on again after its shutdown.
NOTE 1: Position data and parameters are written to EEPROM.
Please note that the rewrite limit is around 100,000 times.
External Dimensions
5
PCON-CG
(External drive-power (Internal drive-power
cutoff relay type) cutoff relay type)
Peak *2
2.0A
9.6W
2 2
(continuous), 9.8m/s (intermittent)
Natural air-cooling Forced air-cooling
300g or less
As a +24V DC power supply,
select the power supply of the
"peak load support" specification
or one with sufficient capacity.
In particular, in the case of the
unit with the remote sensing
function, the greatest care is
required.
5
68.1
35
PCON-CF
This product is capable for use in the environment of pollution degree 2
*1 Pollution Degree 2 : Environment that may cause non-conductive pollution or transient
1.

Installation Environment

Peak *3
Do not use this product in the following environment.
 Location where the surrounding air temperature exceeds the range of 0 to 40C
 Location where condensation occurs due to abrupt temperature changes
Location where relative humidity exceeds 85%RH

 Location exposed to corrosive gases or combustible gases
6.0A
 Location exposed to significant amount of dust, salt or iron powder
26.4W
 Location subject to direct vibration or impact
 Location exposed to direct sunlight
Location where the product may come in contact with water, oil or chemical droplets

 Environment that blocks the air vent [Refer to Installation and Noise Elimination
Section]
When using the product in any of the locations specified below, provide a sufficient
shield.
 Location subject to electrostatic noise
 Location where high electrical or magnetic field is present
Location with the mains or power lines passing nearby

2. Storage and Preservation Environment
The storage and preservation environment should comply with the same standards as
those for the installation environment. In particular, when the machine is to be stored
for a long time, pay close attention to environmental conditions so that no condensation
forms. Unless specially specified, moisture absorbency protection is not included in the
package when the machine is delivered. In the case that the machine is to be stored
and preserved in an environment where condensation is anticipated, take the
condensation preventive measures from outside of the entire package, or directly after
opening the package.
1. Noise Elimination Grounding (Frame Ground)
Controller
320g or less
Ground Terminal
Class D grounding
(Formerly Class-III grounding:
Grounding resistance at 100 or less)
2. Precautions Regarding Wiring Method
(1) Use a twisted cable for connection to the 24V DC power supply.
(2) Separate signal lines and encoder cables from high-power lines such as the power
wire.
3. Noise Sources and Elimination
Carry out noise elimination measures for
power devices on the same power path
and in the same equipment.
The following are examples of measures
to eliminate noise sources:
(1) AC solenoid valves, magnet
switches and relays
[Measure]
Install a surge killer parallel with
the coil.
(2) DC solenoid valves, magnet
switches and relays
[Measure]
Install a diode parallel with the
coil. Use a DC relay with a built-in
diode.
4. Heat Radiation and Installation
Conduct design and manufacture in consideration of the control box size, controller
layout and cooling in such a way that the temperature around the controller will be 40C
or less.
Installation Environment
conductive pollution by frost. (IEC60664-1)

Installation and Noise Elimination

Controller
Connect the ground wire
to the mounting screw of
the controller.
Annealed copper wire:
Connect a ground wire
Controller
with a diameter of 1.6mm
or larger.
Do not share the ground wire with
or connect to other equipment.
Ground each controller.
+
Fan
50mm or more
50mm or more
*1
or equivalent.
Other
equipment
Other Other
equipment equipment
Surge Killer
Relay
coil
Relay coil
-
95mm
or more
Airflow
