Name Of Each Part And External Dimensions; Name Of Each Part - IAI RoboNet Operation Manual

6.4

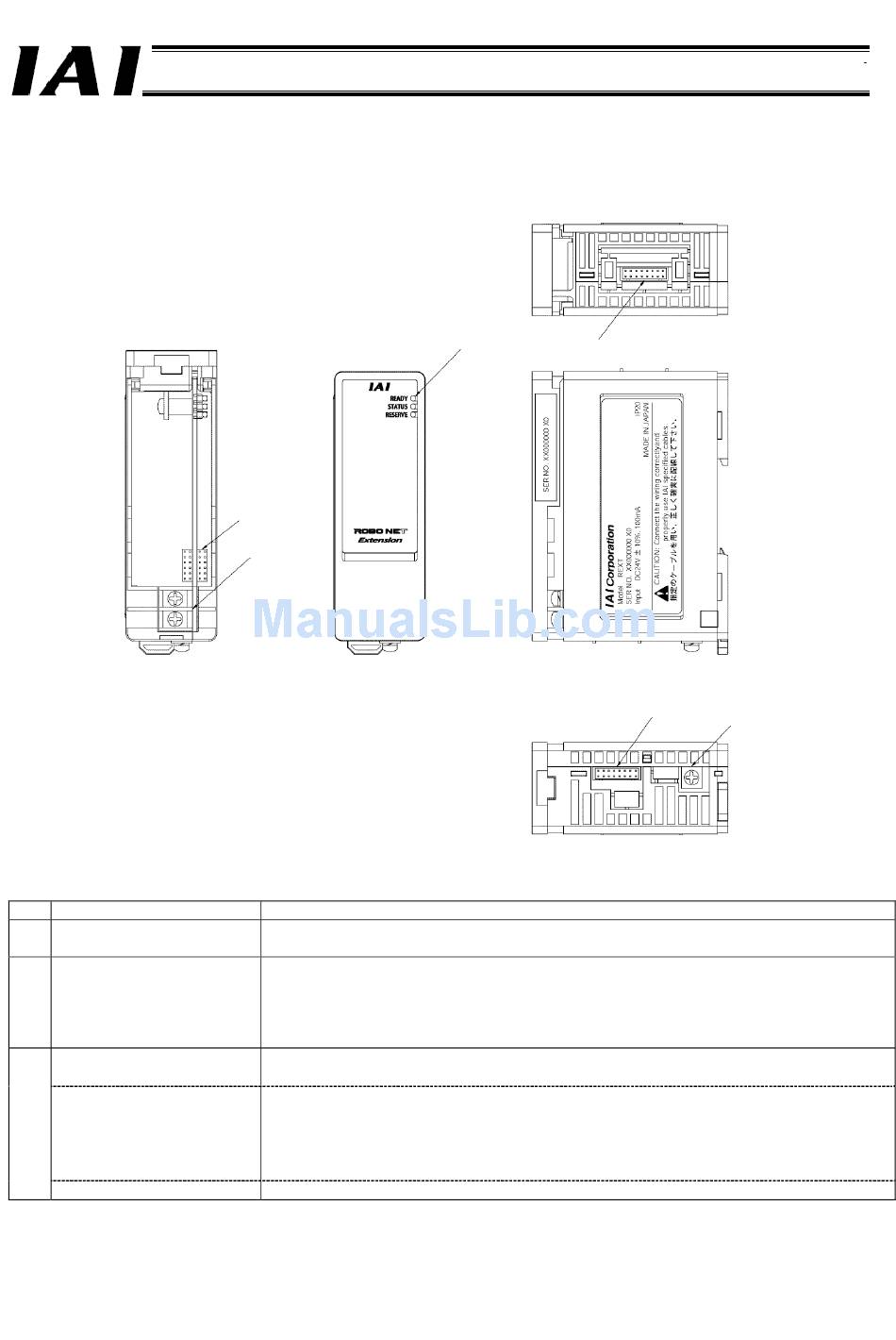

Name of Each Part and External Dimensions

6.4.1 Name of Each Part

No. Name
ROBONET communication
[1]
connector
Power-supply terminal block These are 24-VDC input terminals for the unit. The top terminal is +24 V, while the bottom
[2]
Indicator LEDs
READY
STATUS
[3]
RESERVE
230
[1]
[2]
This communication connector is used to connect a unit in the same row (same stage).
It is connected using a ROBONET communication connection circuit board (JB-1).
terminal is 0 V. To connect a power-supply wire, use a M3 round terminal of 6 mm or less
in width.
Connection with a unit in the same row (same stage) uses a power-supply connection
plate (PP-1).
This LED indicates the status of the internal power supply (5 V) of the unit.
• Green light: Normal
This LED indicates the connection statuses of connectors [4] and [5].
• Green light: Normal (Only one connector is connected.)
• Red light: Abnormal (Both connectors are connected.)
• Unlit: Abnormal (Neither connector is connected.)
When used in the external SIO link connection, this LED is unlit.
This LED is not used and remains unlit at all times.
Part 1 Specification
[4]
[3]
Description
•
Unlit: Internal power supply error
[5]
[6]
