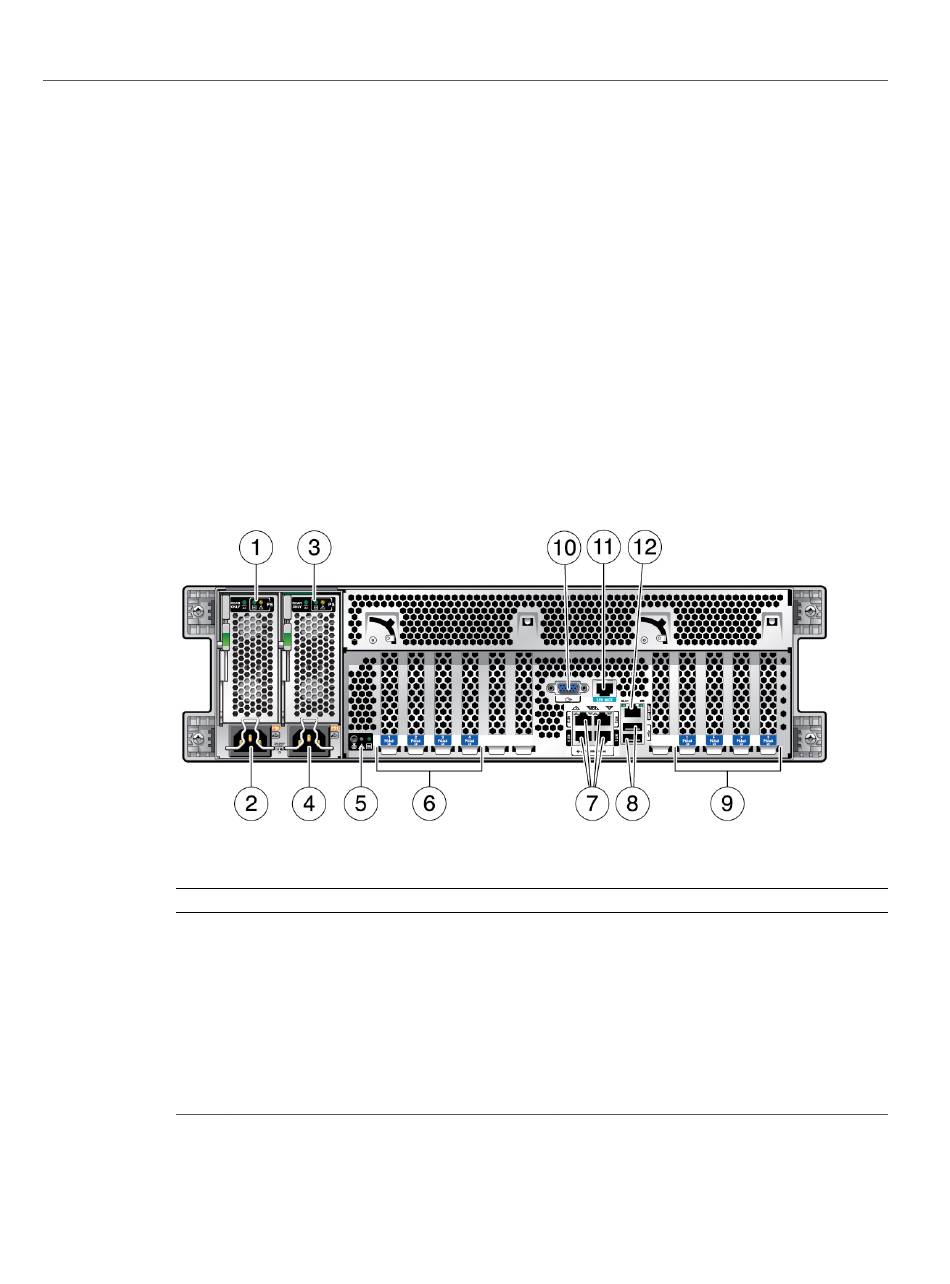

Rear Panel Components (Service)

No.
1
2
3
4
5
6
7
8
Description
Power supply 0 status indicator LEDs
Power supply 0 AC inlet
Power supply 1 status indicator LEDs
Power supply 1 AC inlet
Server status LEDs
PCIe card slots 1 to 4 (left to right)
NET 10/100/1000 ports (4): NET 0 to NET 3
USB 3.0 connectors (2)
Rear Panel Components (Service)
Links
"Servicing Power Supplies" on page 85
"Servicing Power Supplies" on page 85
"Rear Panel Controls and LEDs" on page 38
"Servicing PCIe Cards" on page 125
