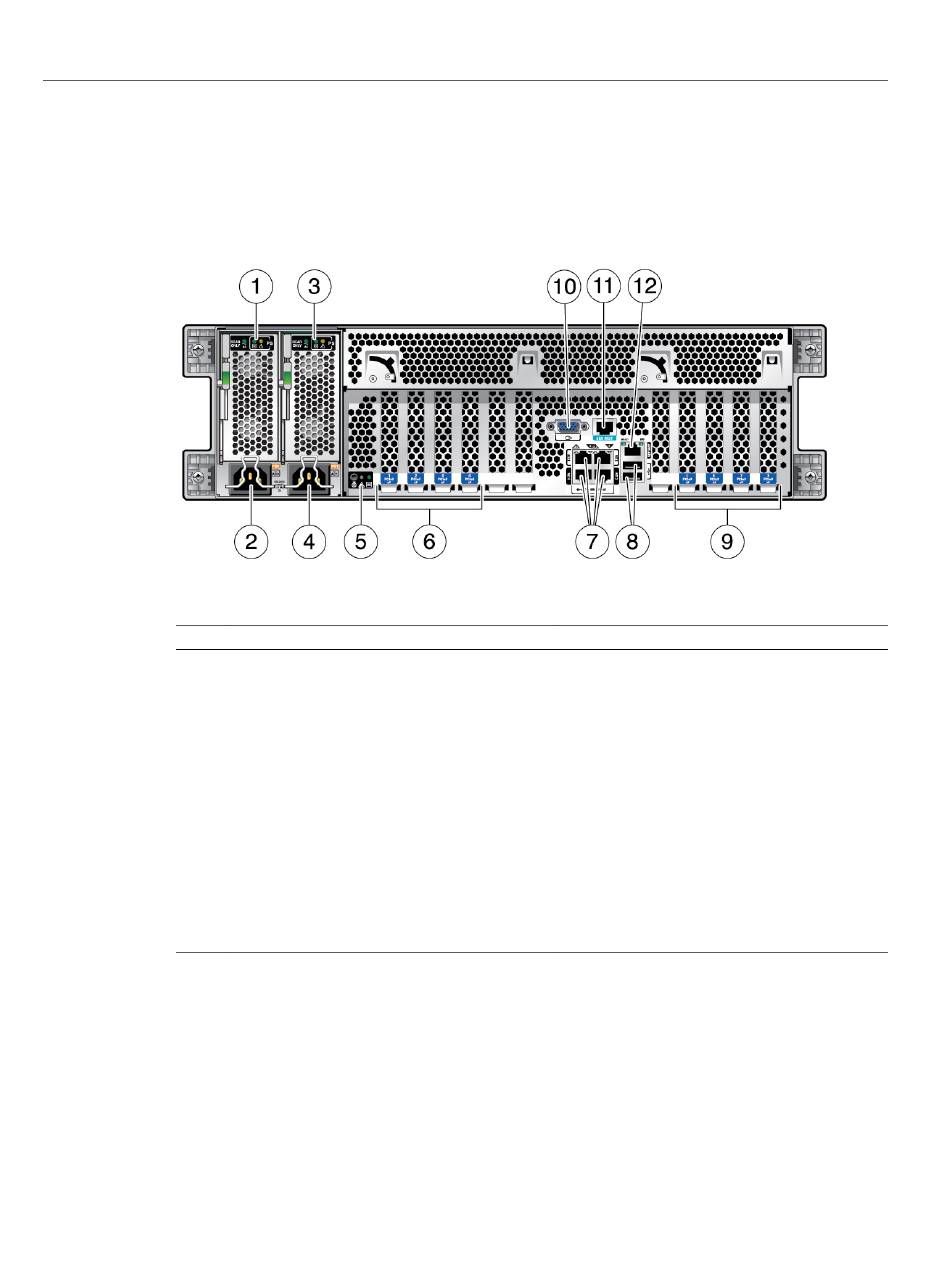

Rear Panel Components (Service)

No.
1
2
3
4
5
6
7
8
9
10
11
12

Internal System Cables

The following table identifies the internal system cables used in the server.
Description
Power supply 0 status indicator LEDs
Power supply 0 AC inlet
Power supply 1 status indicator LEDs
Power supply 1 AC inlet
Server status LEDs
PCIe card slots 1 to 4 (left to right)
NET 10/100/1000 ports (4): NET 0 to NET 3
USB 3.0 connectors (2)
PCIe card slots 5 to 8 (left to right)
DB-15 video connector
SER MGT/RJ-45 serial port
NET MGT port

Rear Panel Components (Service)

Links
"Servicing Power Supplies" on page 83
"Servicing Power Supplies" on page 83
"Rear Panel Controls and LEDs" on page 36
"Servicing PCIe Cards" on page 119
"Servicing PCIe Cards" on page 119
