Installation and Maintenance Manual

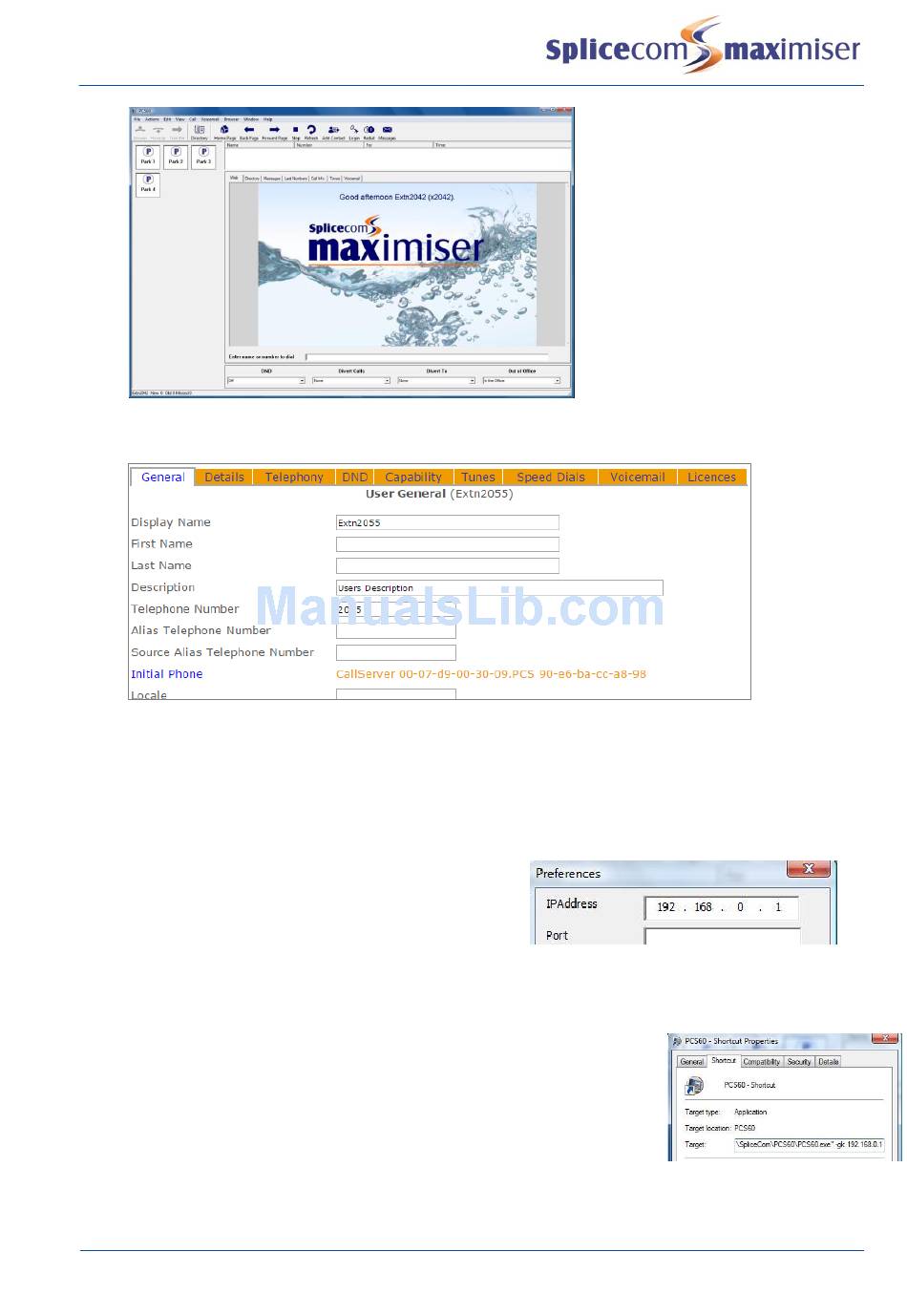

The User's Initial Phone field displays the PCS 60 that the User is assigned to, identified by the
hardware address of the PC.
Connect to the Call Server remotely
If the PCS 60 is to be run remotely over, a different subnet, a VPN, for example, the application must be
configured with the IP address of the gatekeeper, in other words the Call Server, before the registration
process can take place. This can be done in two ways:
1 Using PCS 60 Preferences
a From the File menu select Preferences
b In the IP Address field enter the IP address of
the Call Server, eg 192.168.0.1
c Select OK (Window only
d Close down the PCS 60 and run the software
again.
2 Using the PCS 60's short cut properties
a Open the Properties of the PCS 60's short cut
b In the Target field add
-gk <ip address of Call Server>, eg –gk 192.168.0.1
so that the Target path reads as per the following example:
"C:\Program Files\SpliceCom\PCS60\PCS60.exe" –gk 192.168.0.1
c Select OK.
d Double click on the short cut to run the PCS 60.
System Configuration
Installation and Maintenance Manual v4/0615/10 69
