Installation and Maintenance Manual

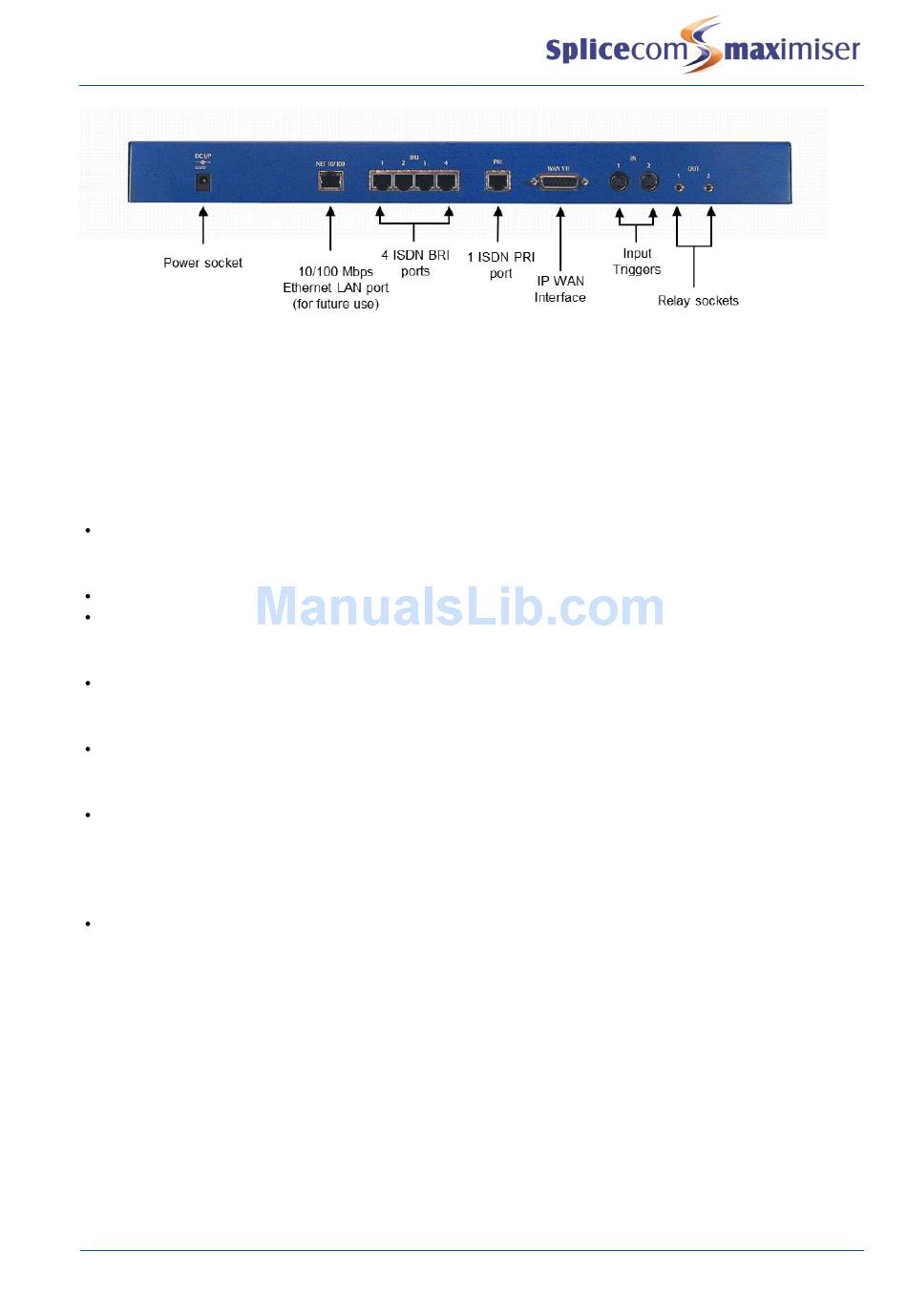

Powering up the 5100/5108 Call Server
1 Power up the Call Server by plugging in the power supply provided.
2 On the 5100 and 5108 Call Servers the Disk Drive LED will flash to indicate a system check. (On the
4100 and 4140 Call Servers the NET LED will flash to indicate a system check.)
3 The SpliceCom LED will become solid when the unit is ready.
Once the 5100/5108 Call Server has been powered up the following should be noted:
If the Call Server's DHCP Server functionality has been enabled the Call Server will give out an
address range of 192.168.0.2 to 192.168.0.250, with 192.168.0.250 being the first address given out.
(For further information please refer to the
Setting DHCP section from page 12 for further details.)
When connecting to the LAN ports on the front of the 5100, 5108 or 4100 Call Server straight or
crossover cables can be used because each port automatically changes to MDI/MDX. (When
connecting to the LAN port at the back of the 4140 Remote Call Server a crossover cable is required.)
The ISDN Trunk ports available on a Call Server can be used to connect to the exchange or to
another system. Please refer to the Working with Trunks section from page 182 for further
information.
The system operates in native mode at G.711 64k with echo cancellation. If the maximiser system is
connected to the company LAN and that LAN is used to carry voice then that LAN must provide
Quality of Service via LAN switches.
The 5100 and 5108 Call Server and the 4140 Remote Call Server provide 16/4/8 analogue extension
ports respectively. When either of these Call Servers is the first to be installed each port will be
automatically assigned to a User named Extn2001, Extn2002 etc and given an extension numbers of
2001, 2002 etc. Please refer to the Connecting an Analogue Phone section from page 48 for further
information.
Please note that the first 8 analogue ports on the 5100 Call Server are activated, the remaining 8
ports will require a POTS licence to activate each port. Please refer to the Licenc section from page
20 for further information.
Please now go to the System Configuration section from page 7 to start configuring the system.
6
Installing a System
Installation and Maintenance Manual v4/0615/10
