Installation and Maintenance Manual
17

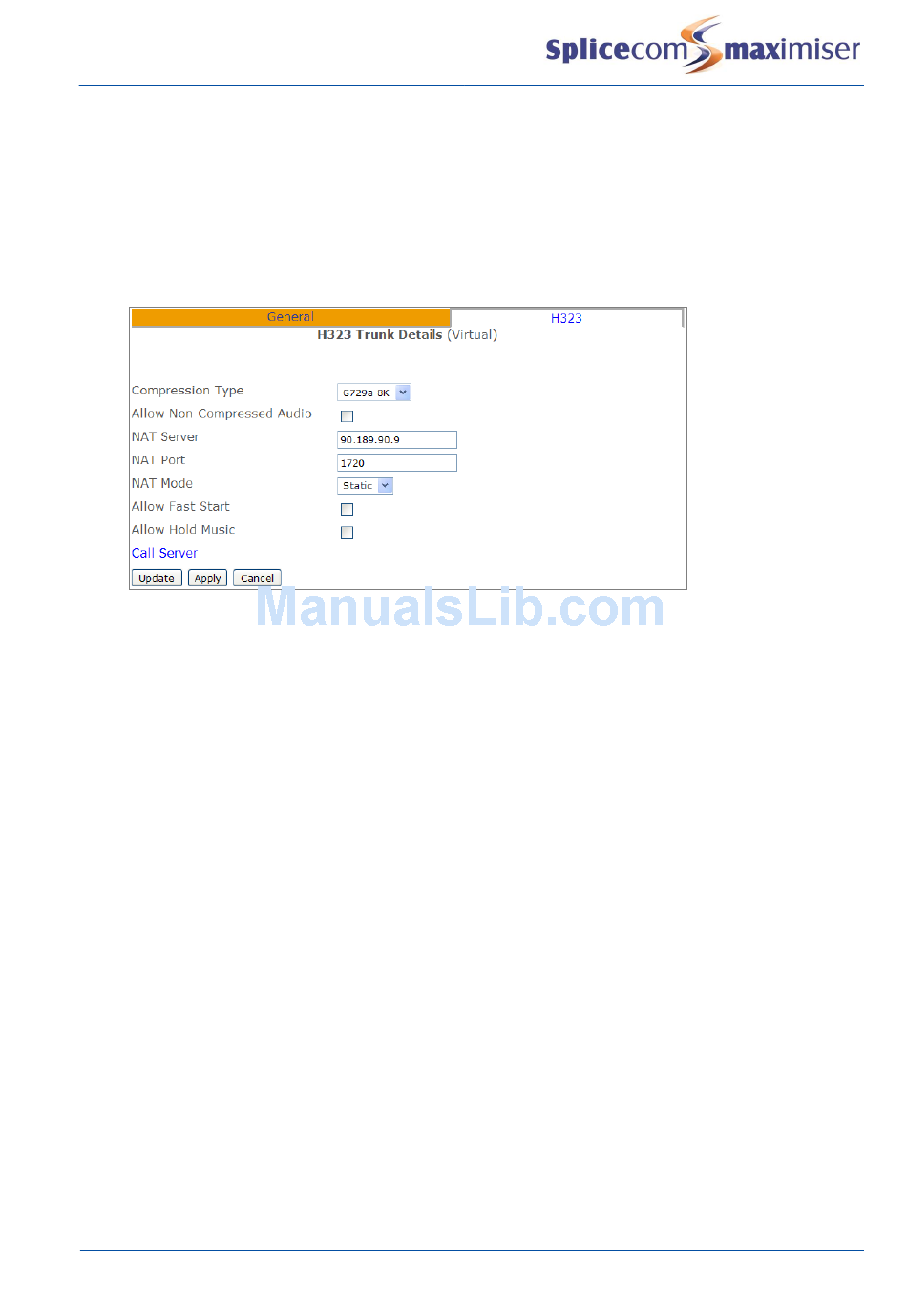

Select the H323 Trunk page
18
From the Compression Type list box select G729A8K, if required, otherwise select None.
19
If the link is going across the Internet, in the NAT Server field enter the IP address allocated by the
ADSL provider, otherwise leave this field blank.
20
If the link is going across the Internet, in the NAT Port field enter
blank.
21
If the link is going across the Internet, from the NatMode field select Static, otherwise select None.
22
Select Update or Apply when ready.
Creating a SIP trunk
A Call Server can support SIP Proxy Server and SIP Trunk services and can be configured as follows.
Please note that when using a 4100 Call Server or 4140 Remote Call Server a Voice Compression Module
or card is required to use this facility (please refer to page 36 for further details) together with the
required number of Trunk licences, one per channel (please refer to the Licencing section from page 20
for further details).
1
In Manager select Modules
2
From the Module list select the Add SIP Gateway button
3
In the Name field enter a name to identify this external gateway
4
Enter the IP address of the remote end, or the name, e.g. sip.example.com, if required instead
5
Select Apply
6
Select the Call Server field
7
From the Select Call Server list select the Call Server to which this SIP Gateway is to be registered.
8
Select Update or Apply when ready.
190
1720
, otherwise leave this field
Configuring system functionality
Installation and Maintenance Manual v4/0615/10
