Installation and Maintenance Manual

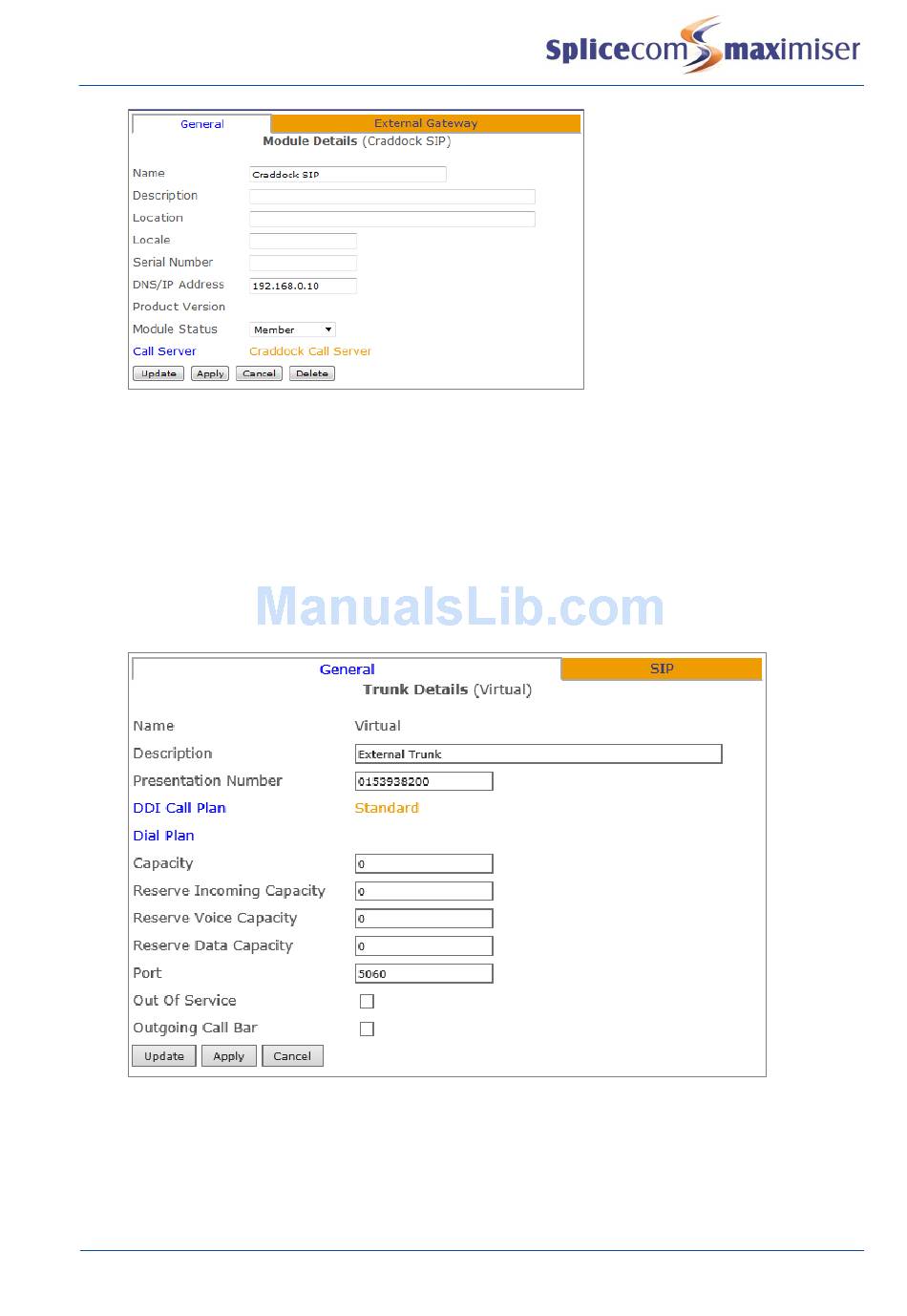

9 From the navigation pane select Trunks
10 Select the Module created above
11 From the Trunks List select Virtual
12 In the Presentation Number field enter the number to be sent on this Trunk. (This may be the
account number supplied by the SIP provider.)
13 Select Apply
14 Select the DDI Call Plan field
15 From the Select DDI Plan list select the DDI Plan required
16 In the Capacity field enter the number of connections to be allowed on this link. (Please note that
the required number of Trunk licences must been previously installed and be available.)
17 Select Apply
18 Select the SIP page
19 From the Compression Type list box select
a G729A 8K – if supported by the SIP Provider, or
b Relay – for G711
Configuring system functionality
