Installation and Maintenance Manual

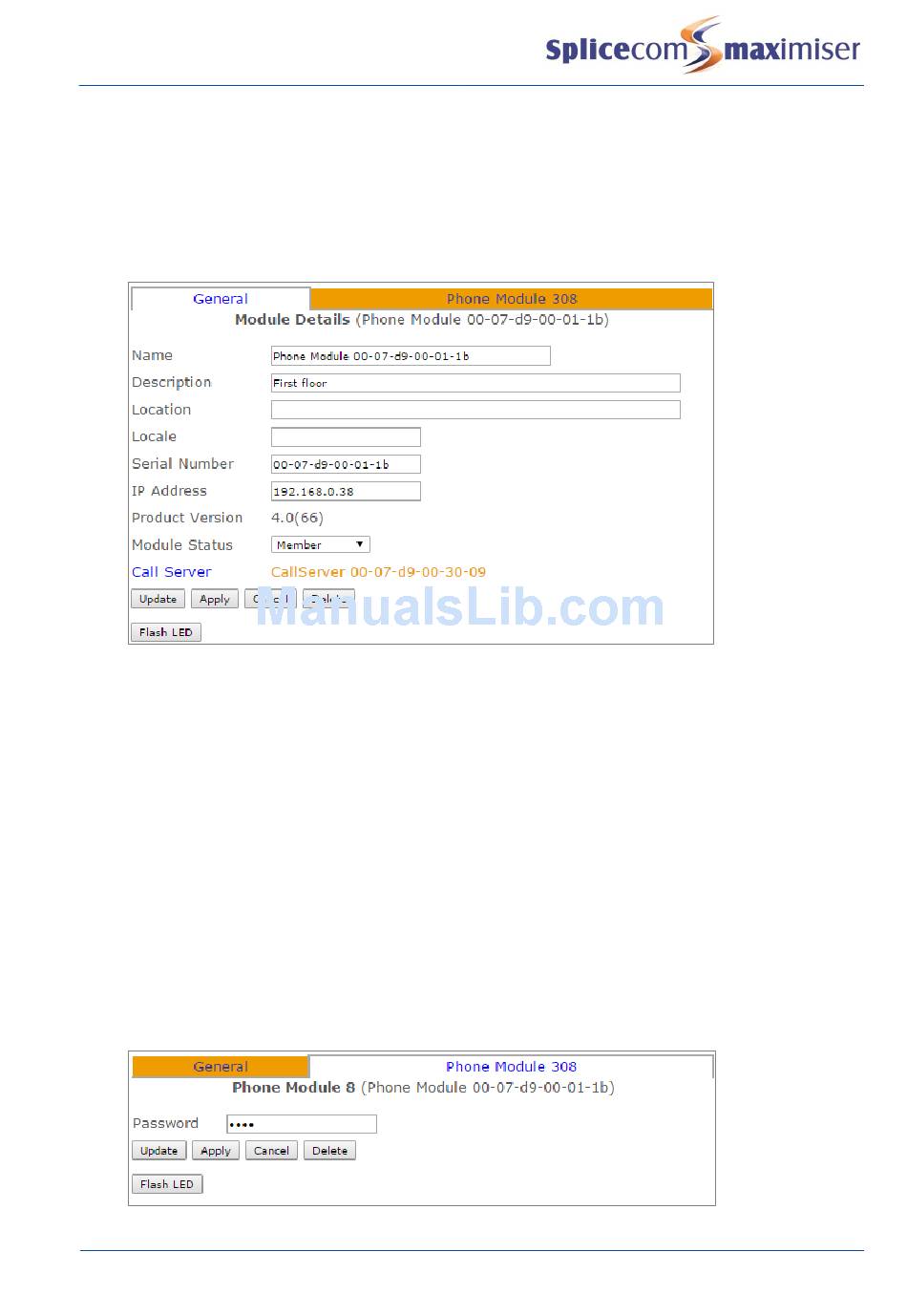

Call Server - indicates to which Call Server the P308 is registered. The Call Server is responsible for
replicating relevant configuration information to the P308. In turn the P308 will store in RAM
configuration information relevant to its functionality. The P308 will pass back configuration
changes, eg User configuration, to the Call Server.
The Flash LED button will instruct the P308's SpliceCom LED to flash. This feature is useful when
multiple P308s are being used on a system and will identify the physical P308 from its
corresponding configuration form.
4 Select Update or Apply when ready.
Each port on the P308 can now be configured independently, see the Configuring an Analogue Extension
Port from page 89 for further details.
Changing the Password
When accessing the configuration web pages for an P308 as described below, the module's password is
entered on connection. When accessing the P308 via a ssh terminal window the login name is diag and
then the password for the module is entered. By default this password is set to 7388. However this
password can be changed as follows:
1 In Manager select Modules
2 Select the P308 required
3 Select the Phone Module 308 page
4 In the Password field enter the password required
5 Select Update or Apply when ready.
6 Reboot the Phone Module via the Reset switch
42
