BODY PANELS/EXHAUST SYSTEM
DISASSEMBLY/ASSEMBLY

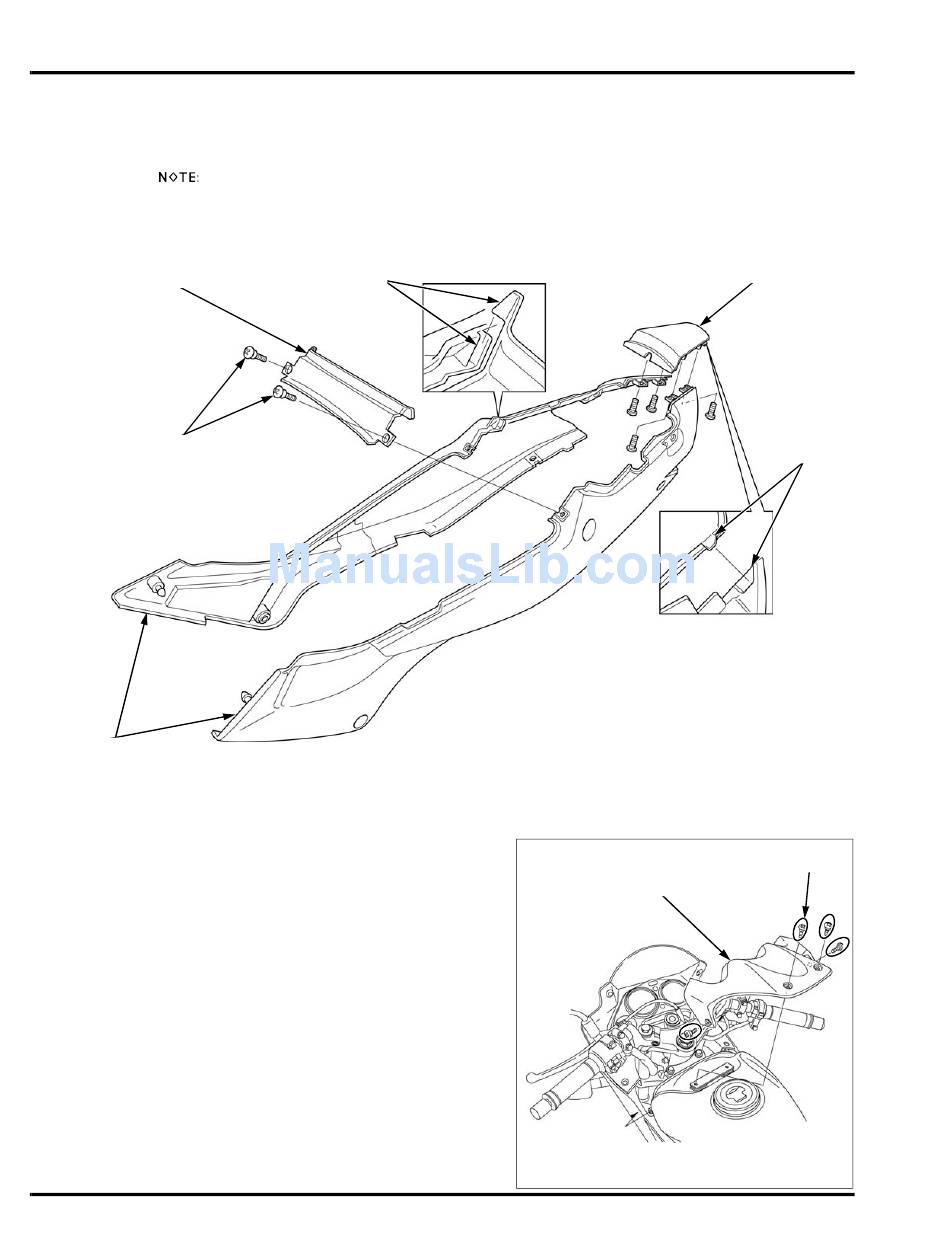

Remove the screws, rear center cowl A and B from
the rear cowls.
Assembly is in the reverse order of disassembly.
Install the rear center cowl A and B by aligning its
tabs with the slits of the both rear cowls.
REAR CENTER COWL A
SCREWS
REAR COWLS

FUEL TANK COVER

REMOVAL/INSTALLATION
Remove the screws and fuel tank cover.
Install the fuel tank cover and screws.
2-6
Align
REAR CENTER COWL B
Align
SCREWS
COVER
