9
Start-Up Operating Area

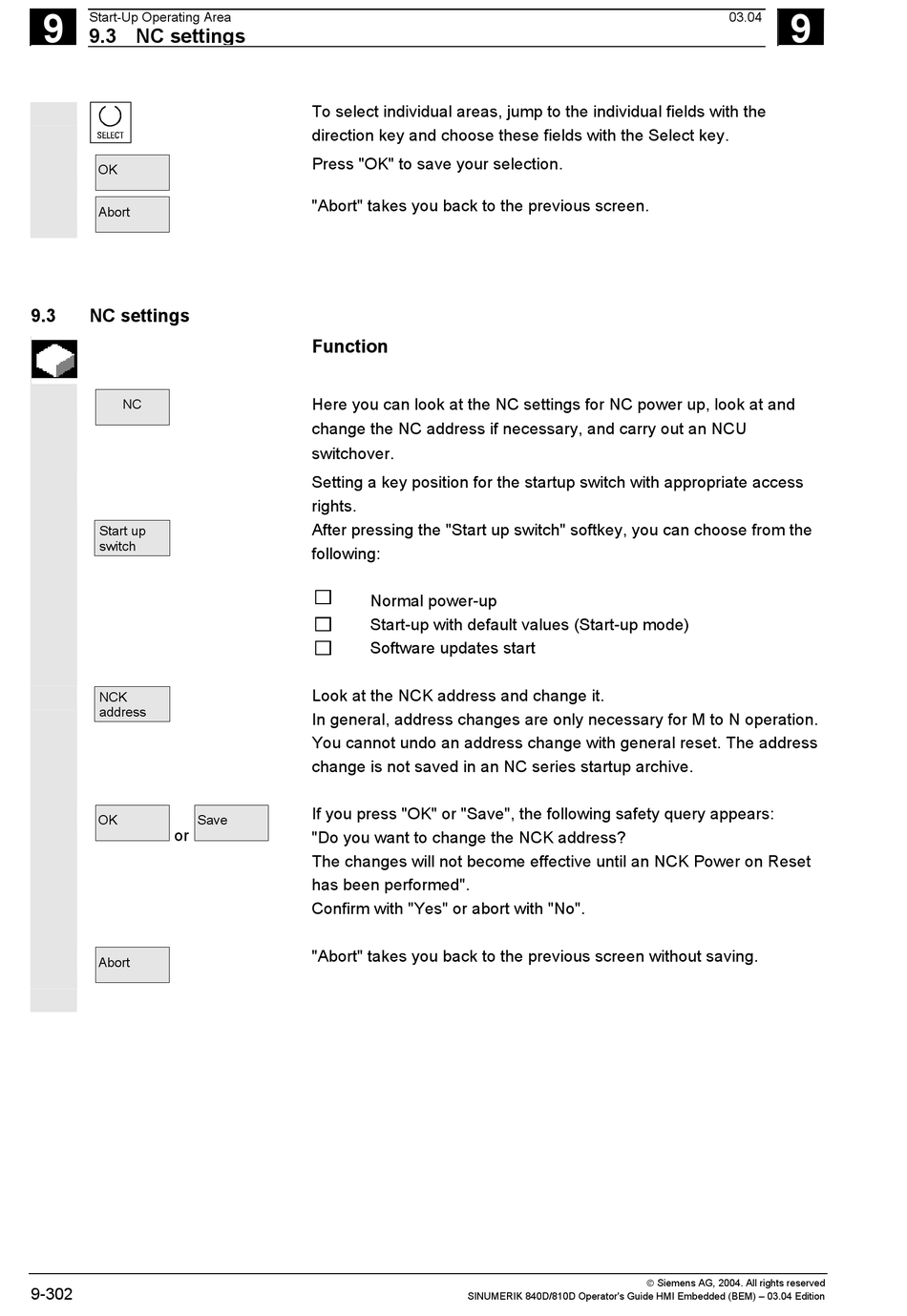

9.3 NC settings

OK
Abort
9.3

NC settings

NC
Start up
switch
NCK
address
OK Save
or
Abort
9-302
To select individual areas, jump to the individual fields with the
direction key and choose these fields with the Select key.
Press "OK" to save your selection.
"Abort" takes you back to the previous screen.
Function
Here you can look at the NC settings for NC power up, look at and
change the NC address if necessary, and carry out an NCU
switchover.
Setting a key position for the startup switch with appropriate access
rights.
After pressing the "Start up switch" softkey, you can choose from the
following:
Normal power-up
Start-up with default values (Start-up mode)
Software updates start
Look at the NCK address and change it.
In general, address changes are only necessary for M to N operation.
You cannot undo an address change with general reset. The address
change is not saved in an NC series startup archive.
If you press "OK" or "Save", the following safety query appears:
"Do you want to change the NCK address?
The changes will not become effective until an NCK Power on Reset
has been performed".
Confirm with "Yes" or abort with "No".
"Abort" takes you back to the previous screen without saving.
SINUMERIK 840D/810D Operator's Guide HMI Embedded (BEM) – 03.04 Edition
9
03.04
 Siemens AG, 2004. All rights reserved
