Hub-spoke VPLS configuration example

Network requirements
Configure a hub-spoke VPLS network to centralize management of the traffic from each site. The
VPLS uses LDP as the PW signaling protocol.

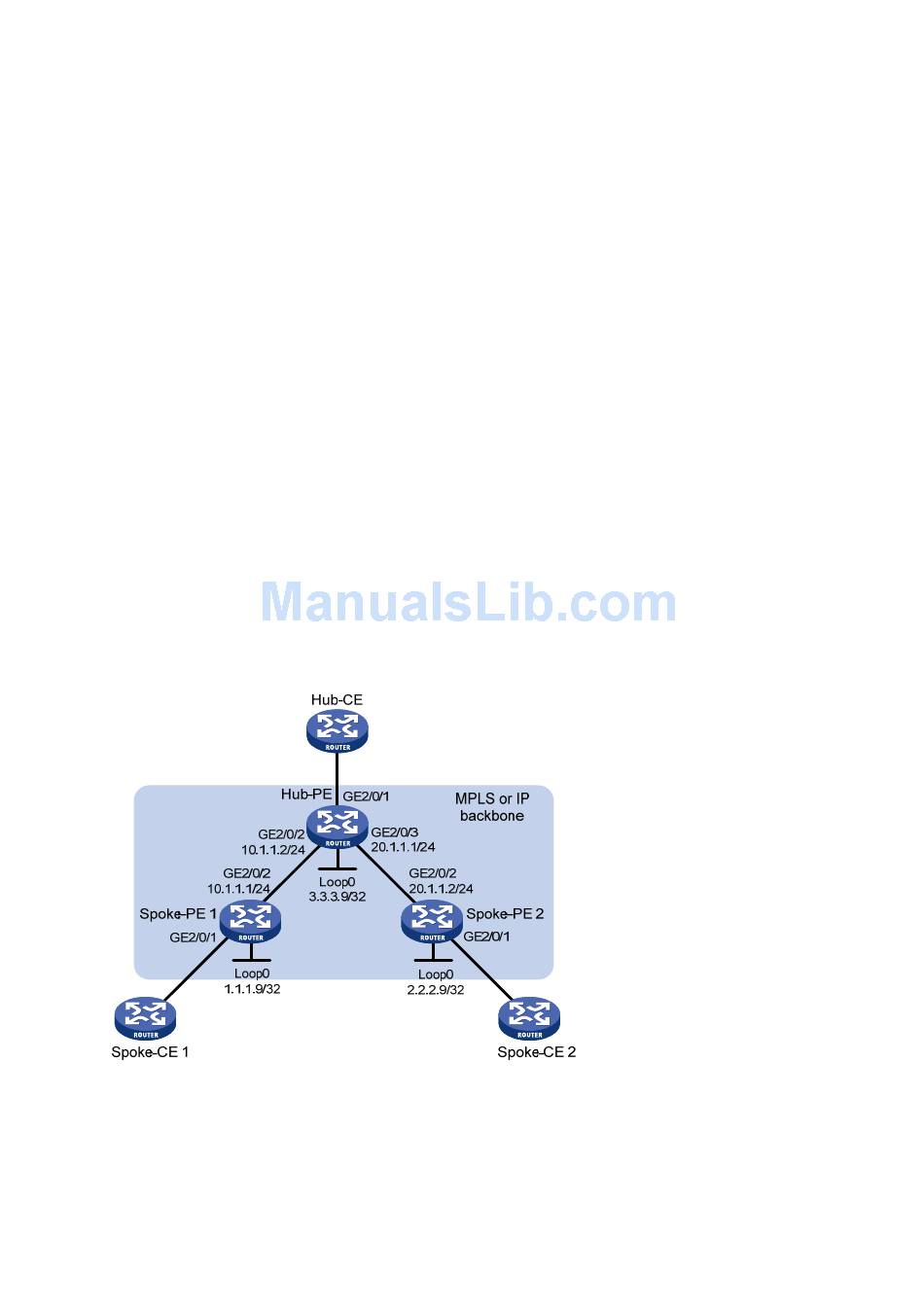

Figure 128 Network diagram
Configuration procedure
1. Configure an IGP and public tunnels on each PE. (Details not shown.)
2. Configure Spoke-PE 1:
# Configure basic MPLS.
<Spoke-PE1> system-view
[Spoke-PE1] interface loopback 0
: 8 PW State : Up
: 1279 Out Label: 1278
: 1500
: Main
: -
: -
: 0x660000000
: 1031
PW ID: 500
: LDP
: 9 PW State : Up
: 1277 Out Label: 1277
: 1500
: Main
: -
: -
: 0x670000000
: 1032
