HP HPE FlexNetwork MSR Router Series Configuration Manual page 149

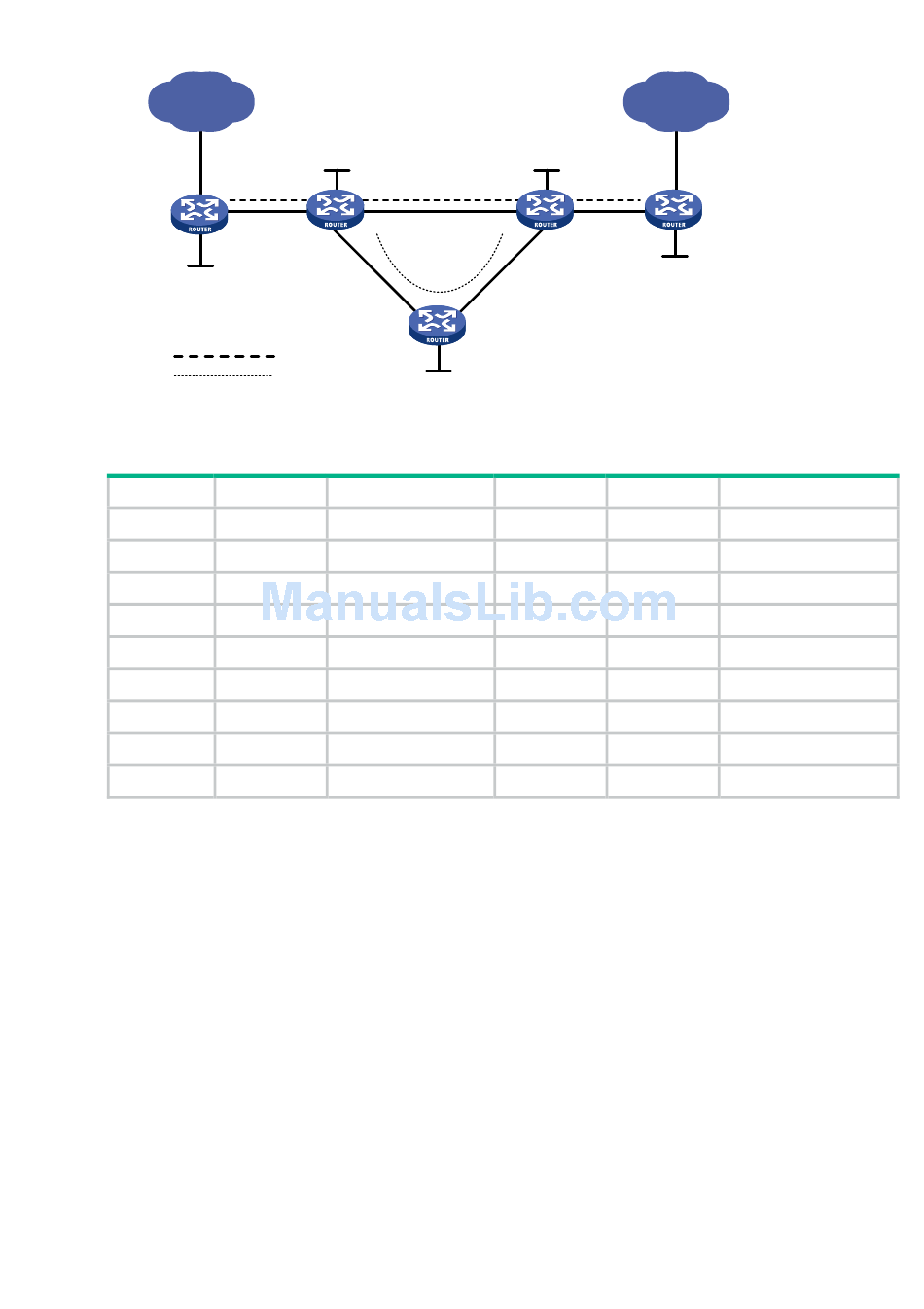

Figure 38 Network diagram
IP network
GE2/0/2
Router A
Loop0
Table 7 Interface and IP address assignment
Device
Router A
Router D
Router E
Configuration procedure
1. Configure IP addresses and masks for interfaces. (Details not shown.)
2. Configure IS-IS to advertise interface addresses, including the loopback interface address.
(Details not shown.)
3. Configure an LSR ID, and enable MPLS, MPLS TE, and RSVP-TE on each router. Enable BFD
for RSVP-TE on Router B and Router C:
# Configure Router A.
<RouterA> system-view
[RouterA] mpls lsr-id 1.1.1.1
[RouterA] mpls te
[RouterA-te] quit
[RouterA] rsvp
[RouterA-rsvp] quit
[RouterA] interface gigabitethernet 2/0/1
[RouterA-GigabitEthernet2/0/1] mpls enable
[RouterA-GigabitEthernet2/0/1] mpls te enable
[RouterA-GigabitEthernet2/0/1] rsvp enable
Router B
Loop0
GE2/0/1
GE2/0/2
GE2/0/1
POS2/2/0
POS2/2/0
Primary CRLSP
Bypass tunnel
Interface IP address
Loop0 1.1.1.1/32
GE2/0/1 2.1.1.1/24
GE2/0/2 100.1.1.1/24
Loop0 4.4.4.4/32
GE2/0/1 4.1.1.2/24
GE2/0/2 100.1.2.1/24
Loop0 5.5.5.5/32
POS2/2/0 3.2.1.2/24
POS2/2/1 3.3.1.1/24
Router C
Loop0
GE2/0/2 GE2/0/1
POS2/2/0
POS2/2/1
Loop0
Router E
Device
Router B
Router C
139
IP network
GE2/0/2
Router D
GE2/0/1
Loop0
Interface IP address
Loop0 2.2.2.2/32
GE2/0/1 2.1.1.2/24
GE2/0/2 3.1.1.1/24
POS2/2/0 3.2.1.1/24
Loop0 3.3.3.3/32
GE2/0/1 4.1.1.1/24
GE2/0/2 3.1.1.2/24
POS2/2/0 3.3.1.2/24
