Kubota M5040 Workshop Manual page 361

M5040, M6040, M7040, WSM

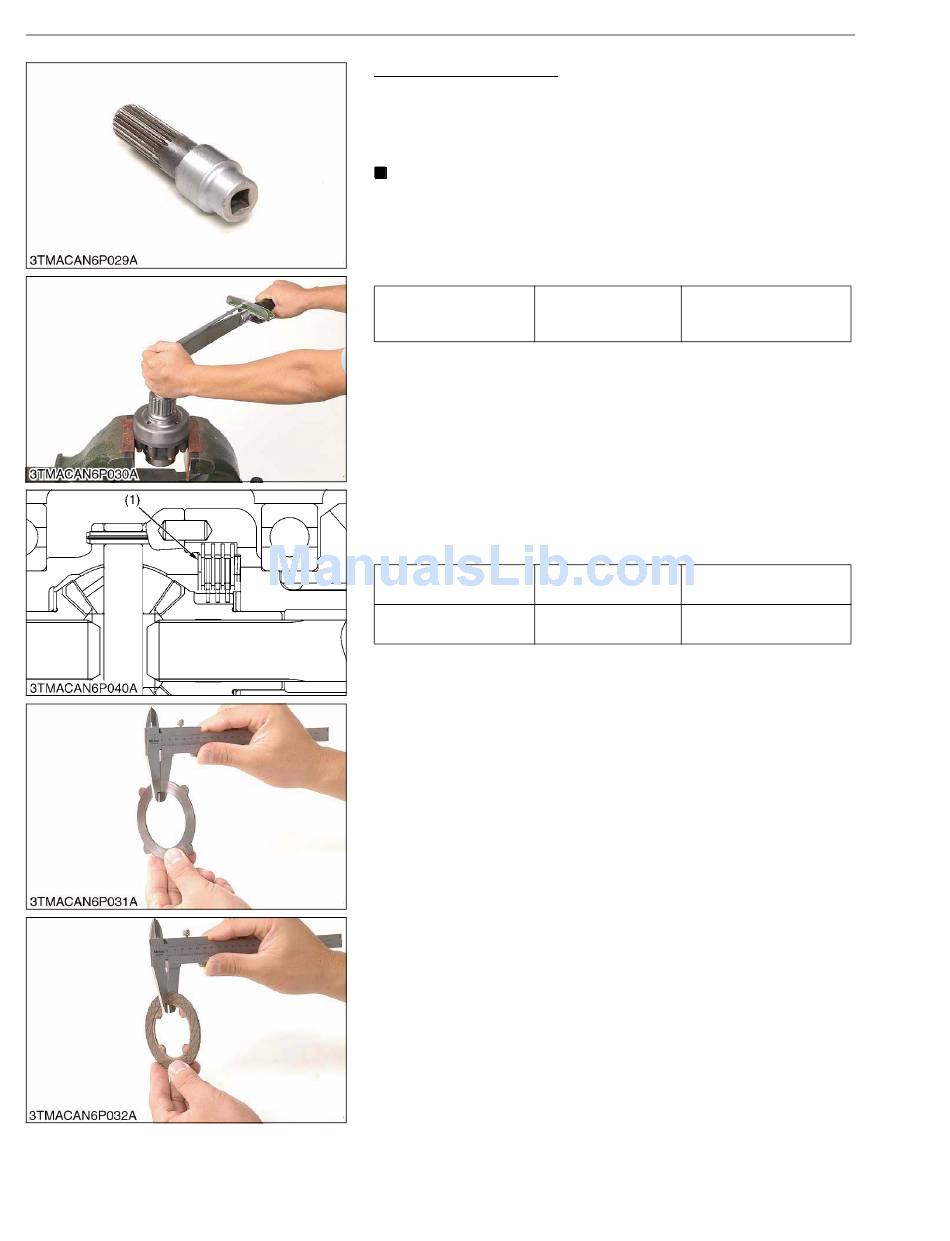

Slip Torque of LSD Disc
1. Set the differential assembly in the vice securely.
2. Check the LSD slip torque using a jig as shown in the photo.
3. If the LSD slip torque is not within the factory specification, adjust
with LSD shim (1).
IMPORTANT
• When measuring the slip torque for LSD, apply ample
lubricant to the LSD disc.
• Turn the LSD side gear using a jig to clockwise and
counterclockwise each direction several times to mesh the
LSD disc and steel plate.
LSD slip torque Factory spec.
(Reference)
• Jig in the photo is : Spline from yoke shaft and welded with box
wrench. (Refer to "8. SPECIAL TOOLS" at "G. GENERAL"
section.)
• Thickness of LSD shim :
0.1 mm (0.004 in.) [Code No.: 35533-43010]
0.2 mm (0.008 in.) [Code No.: 35533-43020]
0.4 mm (0.016 in.) [Code No.: 35533-43030]
0.8 mm (0.032 in.) [Code No.: 35533-43040]
1.0 mm (0.039 in.) [Code No.: 35533-43050]
1.2 mm (0.047 in.) [Code No.: 35533-43060]
Thickness of steel plate Factory spec.
Thickness of LSD disc Factory spec.
• Slip torque changes per 0.1 mm (0.004 in.) shim :
Approx. 5 to 7 N·m (0.5 to 0.7 kgf·m, 3.6 to 5.1 lbf·ft)
(1) Shim
6-S24
FRONT AXLE
34 to 44 N·m
3.5 to 4.5 kgf·m
25.4 to 32.5 lbf·ft
1.32 to 1.48 mm
0.05197 to 0.05827 in.
2.55 to 2.65 mm
0.10039 to 0.10433 in.
W1022263
KiSC issued 06, 2008 A
