Carburetor Removal - Honda TRX450R Service Manual

FUEL SYSTEM (After '05)

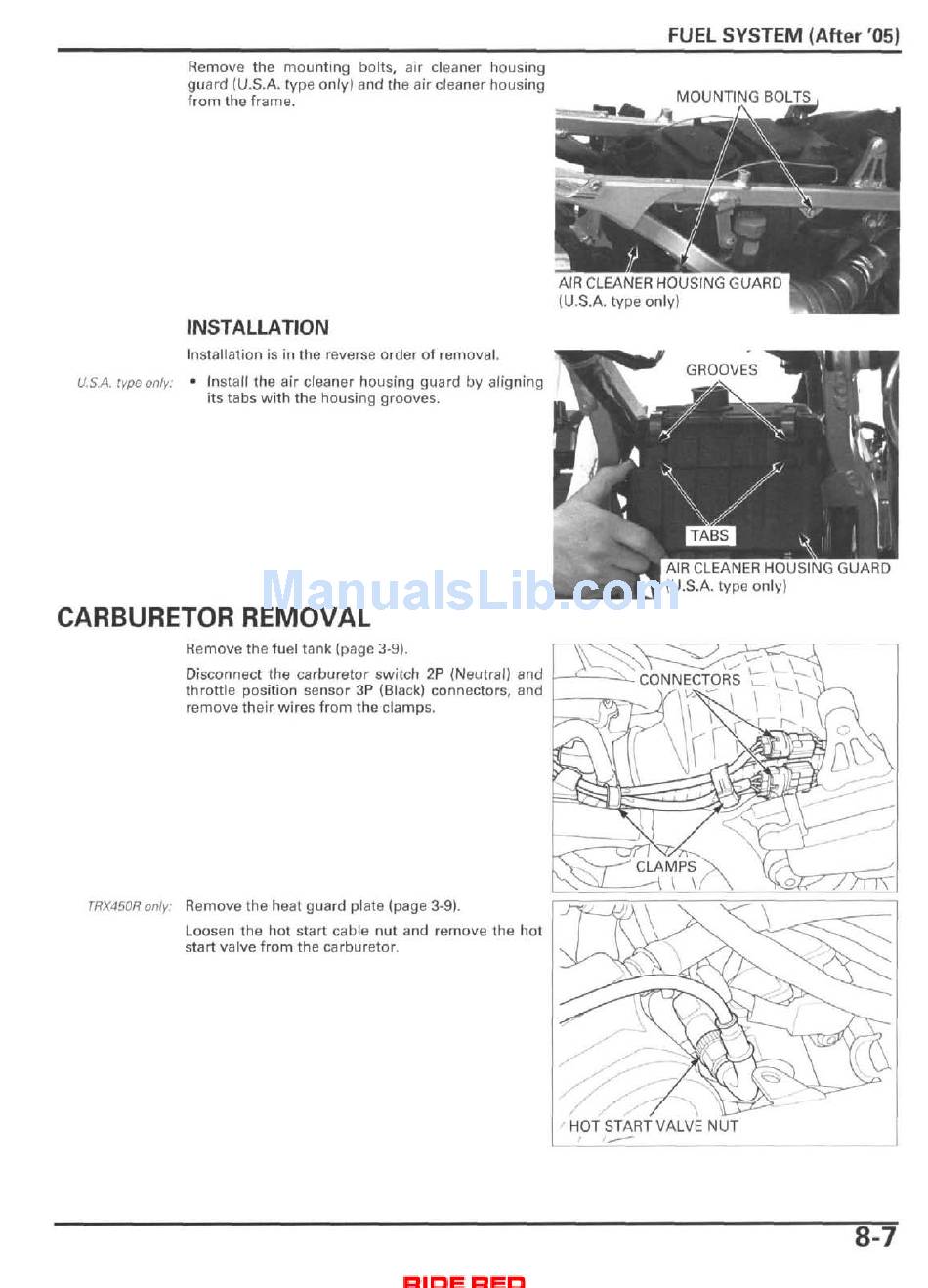

Remove the mounting bolts, air cleaner housing
guard (U.S.A. type only) and the air cleaner housing
from the frame.
MOUNTING BOLTS
AIR CLEANER HOUSING GUARD
(U.S.A. type only)
U.S.A. type only:
INSTALLATION
Installation is in the reverse order of removal.
• Install the air cleaner housing guard by aligning
its tabs with the housing grooves.
AIR CLEANER HOUSING GUARD
(U.S.A. type only)
CARBURETOR REMOVAL
Remove the fuel tank (page 3-9).
Disconnect the carburetor switch 2P (Neutral) and
throttle position sensor 3P (Black) connectors, and
remove their wires from the clamps.
TRX450R only: Remove the heat guard plate (page 3-9).
Loosen the hot start cable nut and remove the hot
start valve from the carburetor.
HOT START VALVE NUT
