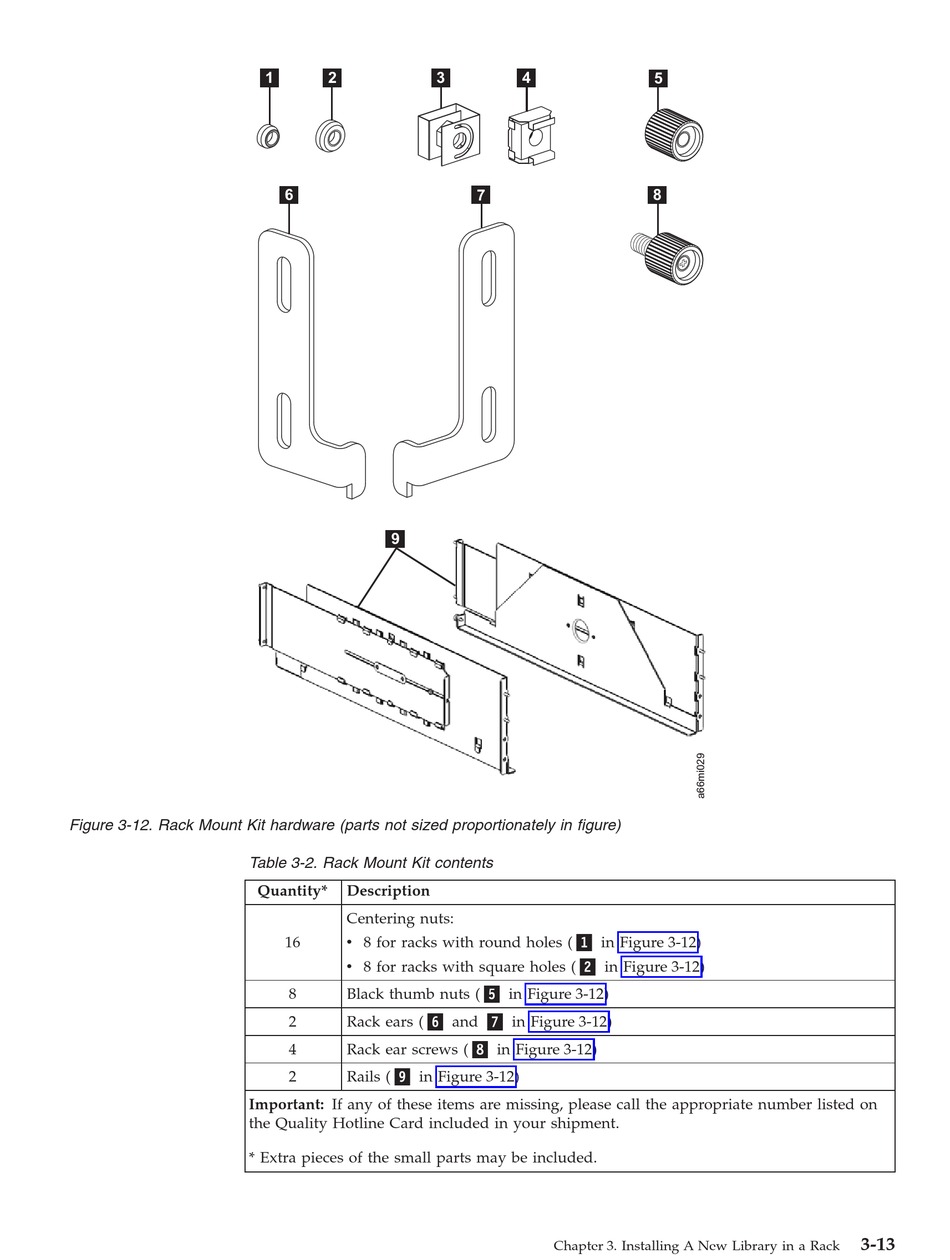

Figure 3-12. Rack Mount Kit hardware (parts not sized proportionately in figure)
2
1
6
9
Table 3-2. Rack Mount Kit contents
Quantity* Description
Centering nuts:
v 8 for racks with round holes ( 1 in Figure 3-12)
16
v 8 for racks with square holes ( 2 in Figure 3-12)
Black thumb nuts ( 5 in Figure 3-12)
8
Rack ears ( 6 and 7 in Figure 3-12)
2
Rack ear screws ( 8 in Figure 3-12)
4
Rails ( 9 in Figure 3-12)
2
Important: If any of these items are missing, please call the appropriate number listed on
the Quality Hotline Card included in your shipment.
* Extra pieces of the small parts may be included.
4
3
7
Chapter 3. Installing A New Library in a Rack
5
8
3-13
