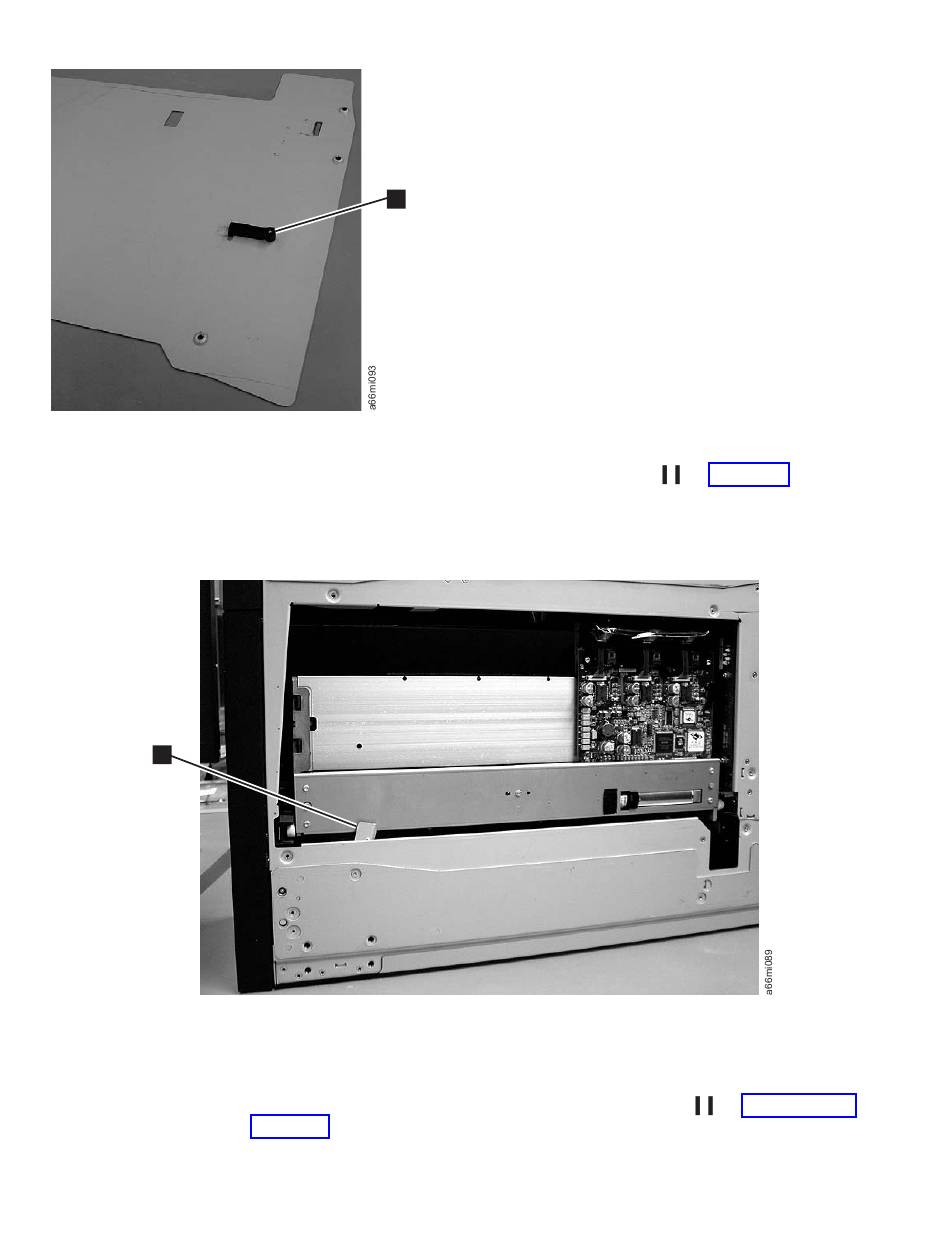

Figure 3-8. Home sensor on inner side of bottom cover
1
Figure 3-9. Bottom view of picker assembly lock mechanism
4. Return the 5U control module to the upright position.
5. Ensure that the front and rear gear racks of both the control module and the
6. Turn the expansion module on its side and install the bottom cover, using the 5
7. Return the expansion module to the upright position.
3-10
TS3310 Tape Library Setup and Operator Guide
1
Important: Ensure that the picker lock mechanism ( 1 in Figure 3-9) is
engaged as shown. This will prevent the picker mechanism from
falling out of the bottom of the 5U control module when it is
returned to the upright position without a bottom cover installed.
expansion module are locked in the upper position (see 2 in Figure 3-19 on
page 3-21).
- T10 Torx screws.
