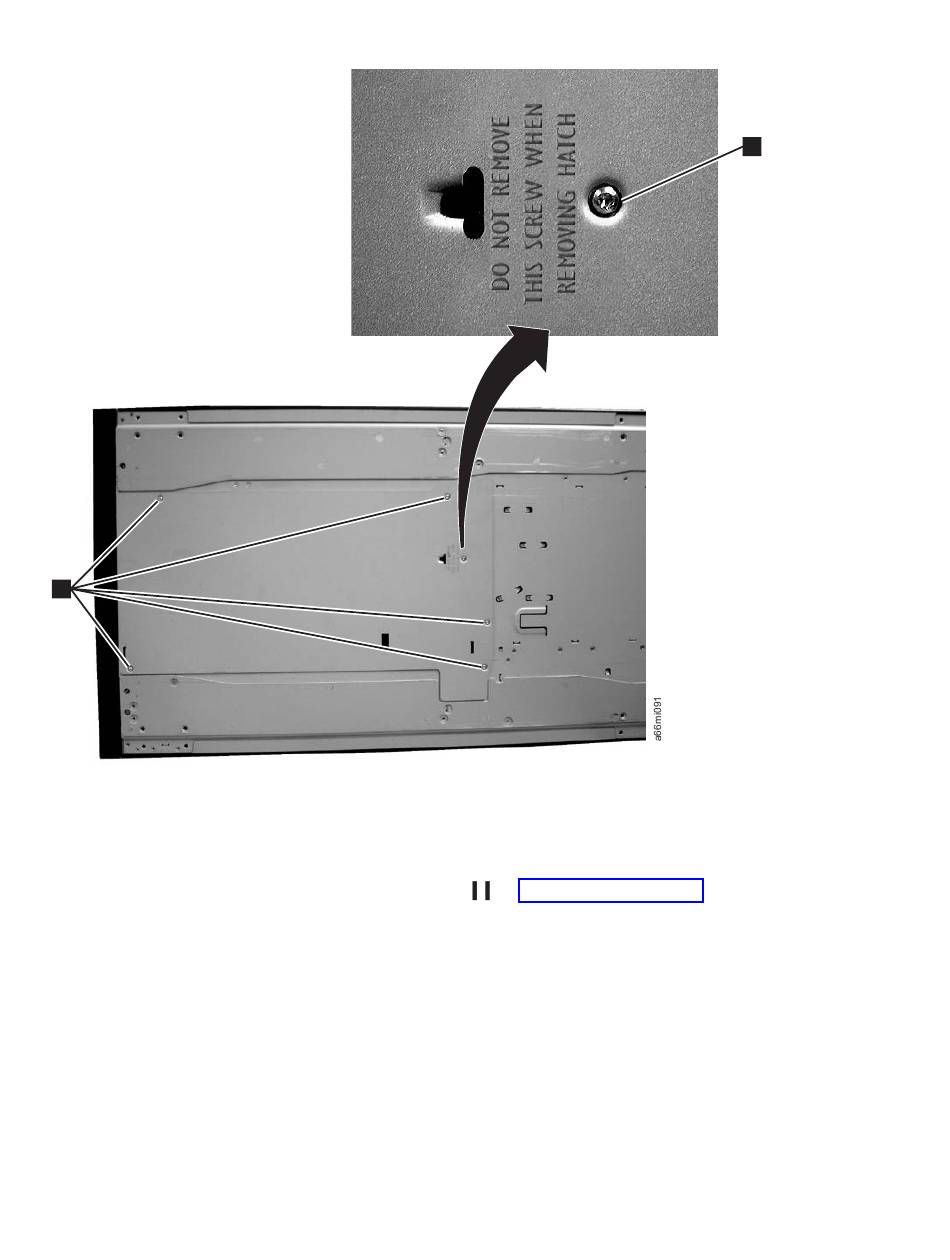

Figure 4-8. Bottom cover of the 5U control module
|
|
|
|
4-10
TS3310 Tape Library Setup and Operator Guide
3. Remove the bottom cover from the 5U control module.
Note: Ensure that the home sensor plastic piece is mounted on the inner side
of the bottom cover ( 1 in Figure 4-9 on page 4-11).
