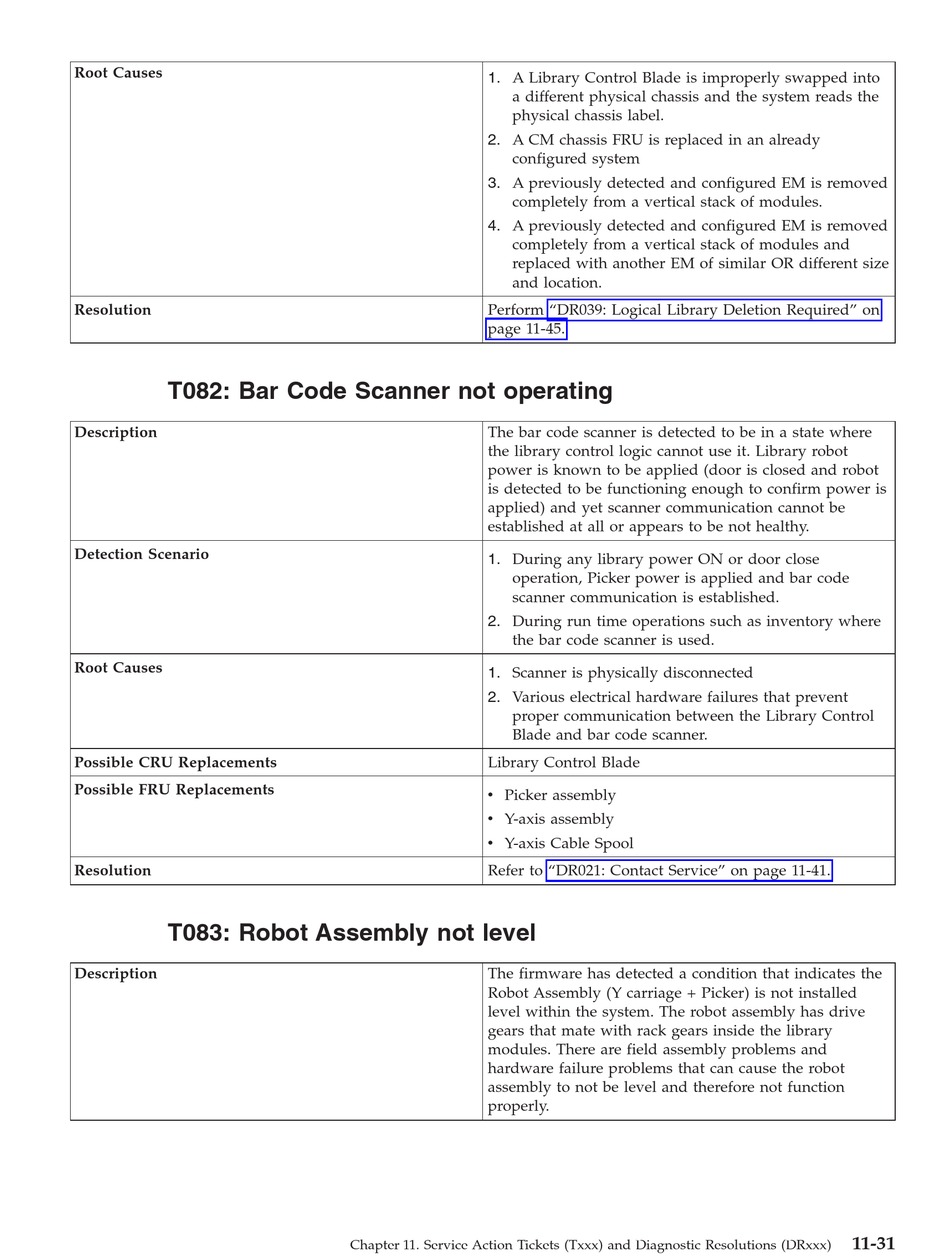

Root Causes
Resolution

T082: Bar Code Scanner not operating

Description
Detection Scenario
Root Causes
Possible CRU Replacements
Possible FRU Replacements
Resolution

T083: Robot Assembly not level

Description
1. A Library Control Blade is improperly swapped into
a different physical chassis and the system reads the
physical chassis label.
2. A CM chassis FRU is replaced in an already
configured system
3. A previously detected and configured EM is removed
completely from a vertical stack of modules.
4. A previously detected and configured EM is removed
completely from a vertical stack of modules and
replaced with another EM of similar OR different size
and location.
Perform "DR039: Logical Library Deletion Required" on
page 11-45.
The bar code scanner is detected to be in a state where
the library control logic cannot use it. Library robot
power is known to be applied (door is closed and robot
is detected to be functioning enough to confirm power is
applied) and yet scanner communication cannot be
established at all or appears to be not healthy.
1. During any library power ON or door close
operation, Picker power is applied and bar code
scanner communication is established.
2. During run time operations such as inventory where
the bar code scanner is used.
1. Scanner is physically disconnected
2. Various electrical hardware failures that prevent
proper communication between the Library Control
Blade and bar code scanner.
Library Control Blade
v Picker assembly
v Y-axis assembly
v Y-axis Cable Spool
Refer to "DR021: Contact Service" on page 11-41.
The firmware has detected a condition that indicates the
Robot Assembly (Y carriage + Picker) is not installed
level within the system. The robot assembly has drive
gears that mate with rack gears inside the library
modules. There are field assembly problems and
hardware failure problems that can cause the robot
assembly to not be level and therefore not function
properly.
Chapter 11. Service Action Tickets (Txxx) and Diagnostic Resolutions (DRxxx)
11-31
