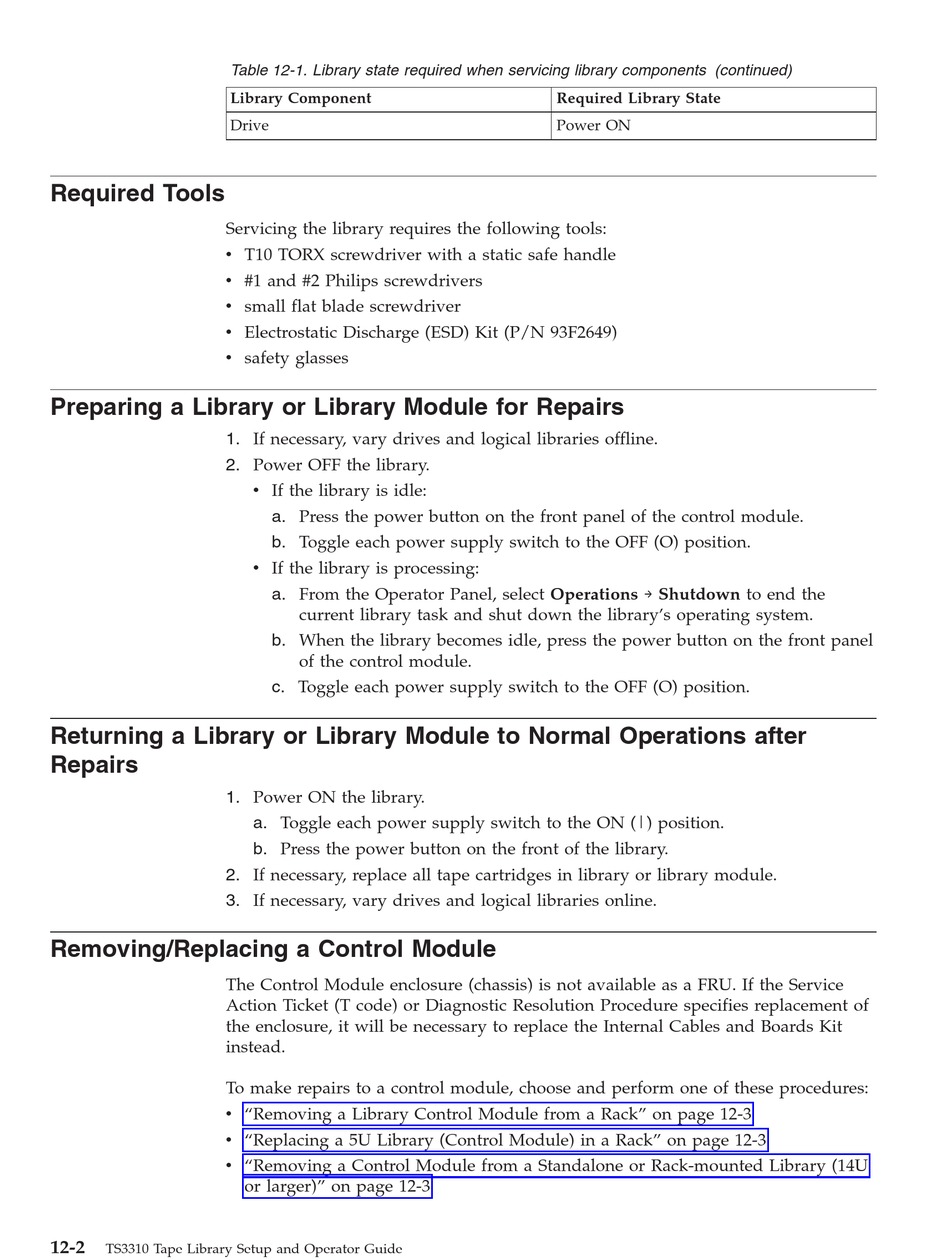

Required Tools

Servicing the library requires the following tools:
v T10 TORX screwdriver with a static safe handle
v #1 and #2 Philips screwdrivers
v small flat blade screwdriver
v Electrostatic Discharge (ESD) Kit (P/N 93F2649)
v safety glasses

Preparing a Library or Library Module for Repairs

1. If necessary, vary drives and logical libraries offline.
2. Power OFF the library.
Returning a Library or Library Module to Normal Operations after
Repairs
1. Power ON the library.
2. If necessary, replace all tape cartridges in library or library module.
3. If necessary, vary drives and logical libraries online.

Removing/Replacing a Control Module

The Control Module enclosure (chassis) is not available as a FRU. If the Service
Action Ticket (T code) or Diagnostic Resolution Procedure specifies replacement of
the enclosure, it will be necessary to replace the Internal Cables and Boards Kit
instead.
To make repairs to a control module, choose and perform one of these procedures:
v "Removing a Library Control Module from a Rack" on page 12-3
v "Replacing a 5U Library (Control Module) in a Rack" on page 12-3
v "Removing a Control Module from a Standalone or Rack-mounted Library (14U
12-2
TS3310 Tape Library Setup and Operator Guide
Table 12-1. Library state required when servicing library components (continued)
Library Component
Drive
v If the library is idle:
a. Press the power button on the front panel of the control module.
b. Toggle each power supply switch to the OFF (O) position.
v If the library is processing:
a. From the Operator Panel, select Operations → Shutdown to end the
current library task and shut down the library's operating system.
b. When the library becomes idle, press the power button on the front panel
of the control module.
c. Toggle each power supply switch to the OFF (O) position.
a. Toggle each power supply switch to the ON (|) position.
b. Press the power button on the front of the library.
or larger)" on page 12-3
Required Library State
Power ON
