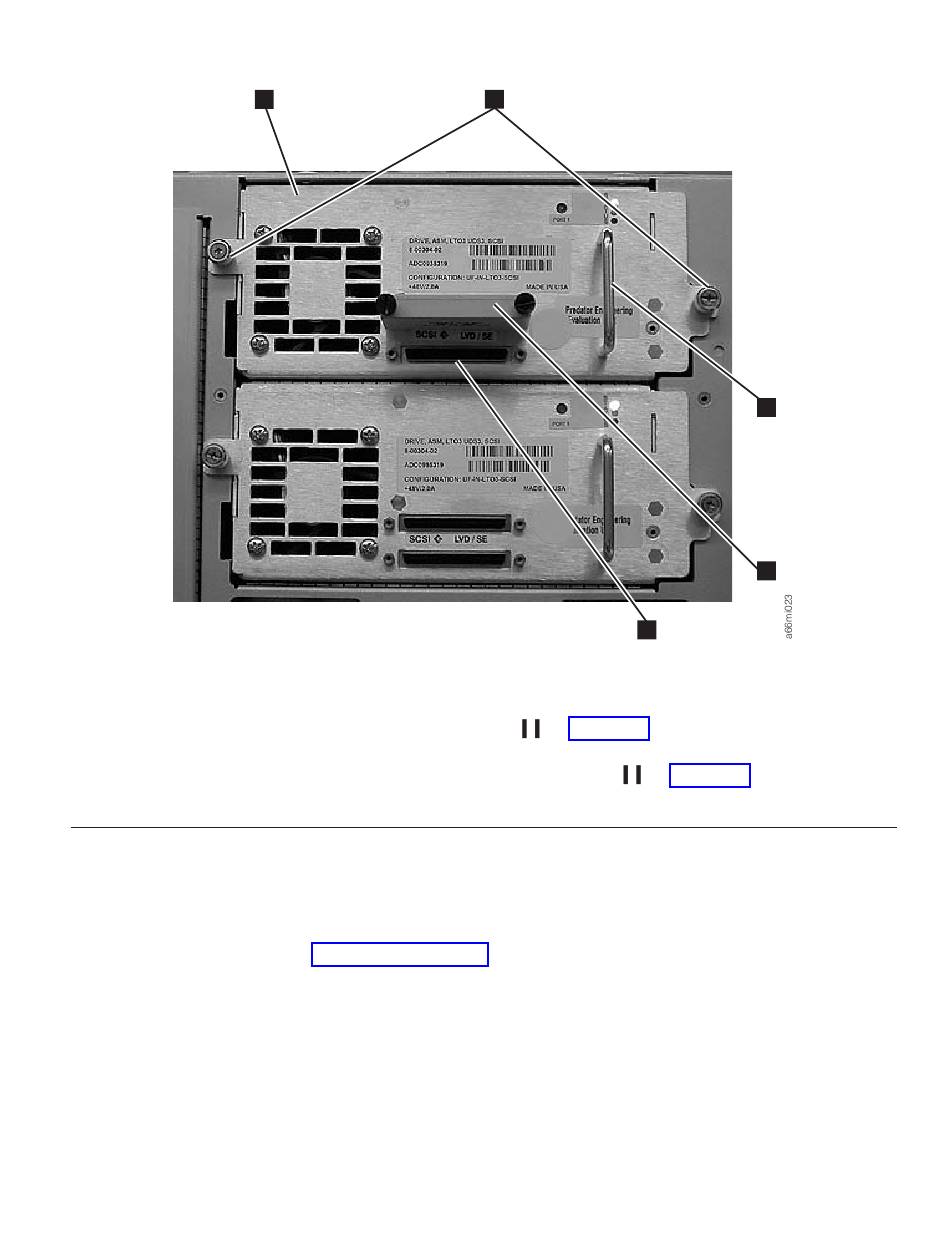

| Figure 4-5. SCSI Drive Sled (detail)
|
|
|
|
|
|
|

Choosing a Desktop Configuration

|
|
|
|
|
|
1
For each installed drive:
1. Loosen the two thumb screws ( 2 in Figure 4-5) that hold the drive sled in
place by turning them counterclockwise.
2. To remove the drive sled, grasp the handle ( 5 in Figure 4-5) and slowly pull
it toward you, while supporting the drive sled from underneath.
A desktop library can have a maximum of one expansion module. The expansion
module can be either the top or the bottom module in the library.
Refer to Figure 4-6 on page 4-8 and select one of the recommended configurations
for your library installation.
2
4
Chapter 4. Installing a New Standalone Library on a Desktop
5
3
4-7
