TRENDnet TPE-4840WS User Manual

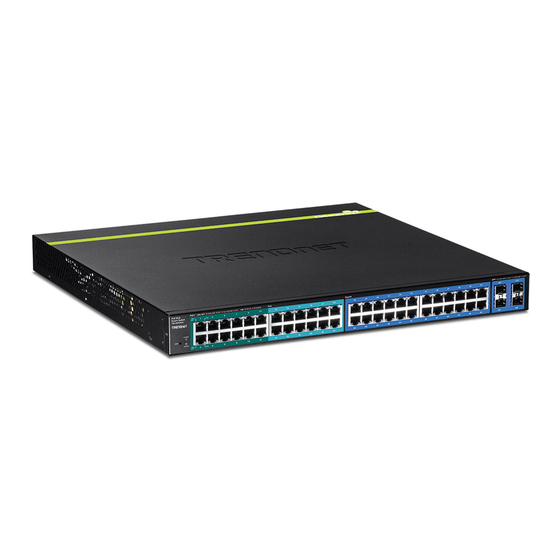

48-port gigabit web sart poe+ switch
Hide thumbs Also See for TPE-4840WS:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TPE-4840WS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TRENDnet TPE-4840WS

Summary of Contents for TRENDnet TPE-4840WS

  • Page 2: Table Of Contents

    ONFIGURATION DHCP S ..........................96 NOOPING LLDP (L ) ................ 100 AYER ISCOVERY ROTOCOL ............................103 TATISTIC ......................105 WITCH AINTENANCE ......................113 ETTINGS TO LASH WEB SMART SWITCH MANAGEMENT UTILITY ..........114 © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 3: Product Overview

    Features Access Controls TRENDnet’s 48-Port Gigabit Web Smart PoE+ Switch, model TPE-4840WS, Features such as ACL, SSL, MAC/port filtering, Denial of Service controls, offers 12 x Gigabit PoE+ ports (Ports 1-12 802.3at), 12 x Gigabit PoE ports 802.1X, TACACS+, and RADIUS are compatible with layered network...

  • Page 4: Front View

    The TPE-4840WS had system failure. The TPE-4840WS is not powered. PoE Max LED When the total PoE output power achieve max power budget (370W). TPE-4840WS has spared power for new PoE PD (power devices). PoE+ Ports PoE Ports Gigabit Ports...
  • Page 5 No link. Amber No link PoE LED (per PoE and PoE+ port) Green Power Device (PD) is detected and PoE working normally. Amber The power supply is overload or short circuit. No link. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 6: Rear View

    Power cord (1.8 m / 6 ft.) Rack mount hardware • If any package content is missing or damaged, please contact the retail store, online retailer, or reseller/distributor from which the product was purchased. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 7: Rack Mount Hardware Installation

    Basic Installation The switch can be mounted in an EIA standard-size, 19-inch rack, which 1. Power on your TPE-4840WS and connect your computer to the switch. can be placed in a wiring closet with other equipment. Attach the mounting brackets at the switch’s front panel (one on each side), and secure them with the provided screws.
  • Page 8 7. Click Save Settings to Flash on the bottom of the menu. button, then click OK. 8. Click Note: Once the settings are saved, you can connect the switch to your network. 5. Click System and then click IPv4 Setup. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 9: Connect Additional Devices To Your Switch

    Note: If you encounter issues connecting to your network, there may be a problem with your computer or device network settings. Please ensure that your computer or device network settings (also called TCP/IP settings) are configured properly within the network subnet your switch is connected. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 10: Configure Your Switch

    Access your switch management page You can view your switch status information here. Note: Your switch default management IP address http://192.168.10.200. You can manage the TPE-4840WS websmart switch using Internet web browser on your choice. (e.g. Internet Explorer®, Firefox®, Chrome™, Safari®, or Opera™).
  • Page 11 IP Address: Displays the current IPv4 address assigned to your switch. Subnet Mask: Displays the current IPv4 subnet mask assigned to your switch. Default Displays the current gateway address assigned to Gateway: your switch. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 12: System

    30 characters. System Specifies the name of the network administrator Contact: responsible for managing the switch. This contact name is optional and may contain up to 30 characters. © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 13 System IP Mode: Click the drop-down list and select Static to manually specify your IP address settings or DHCP to allow your switch to obtain IP address settings automatically from a DHCP server on your network. © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 14 A link local address has a prefix of FE80, is not Local Address: routable, and can be used for communication only on the local network. Only one link local address is supported. If a link local address exists on the © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 15 Click Apply to apply the change to the switch. Go Save Settings to Flash section to save the change on the flash to make sure the change is permanent © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 16 First, Previous, Next, and Last Page to navigate the pages. Go Save Settings to Flash section to save the change on the flash to make sure the change is permanent. © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 17 IP Access List IP Restriction Enable or Disable Access Control List. Default: Status: Disabled IP Address Settings IP Address: Enter the IPv4 or IPv6 address and then click Add to create an access list entry. © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 18 Password: Enter the password for the new account Confirm Enter the password again for verification. Password: Note: The password consists of up to 12 alphanumeric characters. Click Add to add the new administrator. © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 19  Enabled: The SNMP agent is active. You can manage the switch with SNMP network management software and the switch’s private MIB.  Disabled: The SNMP agent is inactive. Web Server Displays the current SNMP status. Status: © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 20 IPv4, IPv6 address or domain name. SNTP Select the format of the URL you want to enter for Secondary SNTP server address. Enter the secondary network Server: time server IPv4, IPv6 address or domain name. © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 21 When select the clock mode to SNTP, enter the SNTP server information here. Click Apply to apply the change to the switch Go Save Settings to Flash section to save the change on the flash to make sure the change is permanent. © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 22 SSL Status: Enable or disable HTTPS/SSL management access and disable/enable HTTP clear text mode at the same time. Default: Disabled. Note: When SSL is enabled, you need to access the switch management page using HTTPS instead of HTTP. (e.g. https://192.168.10.200) © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 23 DHCP/TFTP server. Default: Disabled. State: Click Apply to apply the change to the switch Go Save Settings to Flash section to save the change on the flash to make sure the change is permanent. © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 24 7. Debug: Debug-level messages are displayed. Click Apply to apply the change to the switch Go Save Settings to Flash section to save the change on the flash to make sure the change is permanent. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 25: Physical Interface

    You can also disable an unused port to secure it from unauthorized connections. All Ports: If you select Ignore and click on Apply for all ports, the Admin Status is not changing. If you select Enabled © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 26 You may want to duplex mode. activate jumbo frames when your switch will transmit o 100/Full -This parameter indicates the port is video and audio files. configured for 100Mbps operation in full-duplex mode. All Ports: © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 27 EAP: This number shows the current Extensible Go Save Settings to Flash section to save the change on the flash to make Authentication Protocol (EAP) setting on the port. sure the change is permanent. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 28: Bridge

    STP: Enables STP 802.1D on the device. • RSTP: Enables Rapid STP 802.1w on the device. • This is the default value. MSTP: Enables Multiple STP 802.1s on the device. • • © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 29 Click Apply to apply the change to the switch on the port. Enable Disable Go Save Settings to Flash section to save the change on the flash to make sure the change is permanent. © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 30 Selecting the Auto except for BPDU data. A port with a higher path parameter indicates that the port have edge port cost to the root bridge than another on the switch © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 31 If set to True, it stops the port from propagating received TCN and to other ports. The default value is False. Migrate: Indicates if the port is configured to accept RSTP and STP BPDUs. © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 32 Revision Level: This value, together with the configuration name, and identical VLAN mapped for STP instance IDs identifies the MST region configured on the switch. Range: 0 to 65535. Click Apply to apply the change to the switch © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 33 Priority: State: STP port fording state Role: The port role in the STP: root port, designated port, backup port, or disabled port. Action: Click Apply to apply the change to the MST port © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 34 TRENDnet User’s Guide TPE-4840WS Go Save Settings to Flash section to save the change on the flash to make sure the change is permanent. © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 35 Click Apply to apply the change to the switch Go Save Settings to Flash section to save the change on the flash to make sure the change is permanent. © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 36 This value cannot be modified. Priority: value applies to the switch. System ID: MAC address value assigned to the individual switch. This value cannot be modified. Group: The trunk group (link aggregation group) ID number and status. © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 37 (65535 represents the highest priority). Click Apply to apply the change to the switch Go Save Settings to Flash section to save the change on the flash to make sure the change is permanent. © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 38 Egress Port section or you could click All to copy data transmitted on all ports. Go Save Settings to Flash section to save the change on the flash to make sure the change is permanent. © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 39 Detection feature on the selected port. Note: In the All row when you select Enable or Disable instead of Ignore, the selection applies to all of the Switch ports. Loop Status: Display the current loopback status. © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 40 Action: Next to each entry, click Apply to apply the change of the port. Go Save Settings to Flash section to save the change on the flash to make sure the change is permanent. © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 41 802.1Q VLAN: Enter the VLAN ID where the MAC address will reside. Note: By default, all switch ports are part of the default VLAN, VLAN ID 1. MAC Address: Enter the MAC address of the device to add. © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 42 802.1Q VLAN: Enter the VLAN ID where the MAC address will reside. Note: By default, all switch ports are part of the default VLAN (VLAN 1). MAC Address: Enter the MAC address of the device to add. © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 43 Age-Out Timer: Enter the amount of time in seconds that you want your switch to wait before it purges an inactive dynamic MAC address. Querier Status: Click the drop-down list and select Enabled to enable the Querier Status or Disabled to disable this feature. © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 44 Router Port, and a Dynamic Router Port is dynamically configured by sure the change is permanent. the Switch when a query control message is received. To modify an entry, click Modify to add statically add router ports. © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 45 Port: The port ID you want to implement the storm control. DLF: Destination Lookup Failure: Click the drop-down list and select Enabled to enable DLF storm control. Broadcast: Click the drop-down list and select Enabled to enable broadcast storm control. © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 46 Ingress Rate Limiting Settings Port: The port number. Bandwidth Enter the ingress rate limit value. Status Click the drop-down list and select Enabled to enable ingress rate limiting or select Disabled to disable ingress rate limiting. © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 47 Egress Rate Limiting Settings Port: The port number. Bandwidth Enter the egress rate limit value. Status Click the drop-down list and select Enabled to enable egress rate limiting or select Disabled to disable egress rate limiting. © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 48 VLAN, typically tagged VLAN ports are used for uplink and downlink to other switches to carry and forward traffic for multiple VLANs across multiple switches. © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 49 Next, and Last Page to navigate the pages. Note: VLAN 1 is the default VLAN and cannot be removed. Go Save Settings to Flash section to save the change on the flash to make sure the change is permanent. © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 50  Tagged: The port can accept tagged frames only. Untagged frames are discarded.  Untagged & Priority Tagged: The port can accept untagged frames and frames with tagged priority information only such as 802.1p. © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 51 Go Save Settings to Flash section to save the change on the flash to make When using SVL mode, Voice VLAN will not be supported.  sure the change is permanent. When using SVL mode, the VID field on 802.1Q-VLAN mode will be displayed as "N/A". © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 52 If the entries span multiple pages, you can navigate page number in the Page field and click Go or you can click First, Previous, Next, and Last Page to navigate the pages. © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 53 Press Apply to make the changes to take effect.  Set the Source Port to on port 1 – 8.  Click on the Forwarding Ports ratio button that applies to your configuration.  Click Apply. © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 54 Bridge > VLAN > VLAN Database If the entries span multiple pages, you can navigate page number in the Page field and click Go or you can click First, Previous, Next, and Last Page to navigate the pages. © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 55 Click the GVRP Status drop-down list and select Enabled to activate GVRP or Disabled to deactivate GVRP. Click Apply to save the settings. Go Save Settings to Flash section to save the change on the flash to make sure the change is permanent. © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 56 From the Dynamic Vlan Status field, select one of the following choices from the pull-down menu:  Ignore: This parameter indicates that the setting in the All row does not apply to the Dynamic Vlan © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 57 Note: The GARP LeaveTime must be greater than (GARP JoinTimer x2 + sure the change is permanent. 10) and the GARPLeaveAllTime must be greater than (GARP LeaveTime + 10). The acceptable input values are multiples of 10. If you try to enter a © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 58 Go Save Settings to Flash section to save the change on the flash to make Jumbo frame parameter on each port. When Jumbo frames are enabled, COS cannot sure the change is permanent. be enabled. © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 59 For each port whose priority you want to change, select a priority (0-7) in the User Priority column. Click Apply to save the settings. Go Save Settings to Flash section to save the change on the flash to make sure the change is permanent. © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 60 (Low, Medium, High, or Highest). The default queue for all DSCP values is 0. To assign the queue mappings to the DSCP values, perform the following procedure. © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 61 Round Robin) has a chance to transmit traffic. Go Save Settings to Flash section to save the change on the flash to make sure the change is permanent. © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 62 Specify the value of IPv6 class. Range: 0 – 255. Class: Class ID: Defines the priority assigned to the port. The priorities are Highest, High, Medium and Low. Click Add to add the traffic class setting entry to the table. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 63: Snmp

    Use the device-generated Engine ID (Reset to Default: Default will override any entry in the Engine ID field). Go Save Settings to Flash section to save the change on the flash to make sure the change is permanent. © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 64 To creating SNMP View Table Entries:  Enter the View Name. This value must be pre-defined on the SNMP User/Group page.  Enter the Subtree OID.  Enter “1” for the OID Mask. © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 65 Auth-Protocol has a password assigned and the Priv-Protocol has been selected as none on the SNMP User/Group page. o AuthPriv: When the Auth-Protocol or Priv-Protocol have been enabled, choose this selection.  Click the Add button. © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 66 Note: The views corresponding to the ReadOnly and ReadWrite Group Names are default values and cannot be removed. Go Save Settings to Flash section to save the change on the flash to make sure the change is permanent. © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 67 None: Specifies no encryption is applied to SNMP data.  Click Add. The new User Name and Group Name are displayed on the SNMP User/Group page. © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 68 In the Action column of the table, click Delete for the User Name and Group Name that you want to remove. Go Save Settings to Flash section to save the change on the flash to make sure the change is permanent. © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 69 The deleted Community Name is no longer displayed in the Community table. No confirmation message is displayed. Go Save Settings to Flash section to save the change on the flash to make sure the change is permanent. © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 70 If you need to modify an SNMP Trap entry, you must first delete the entry by using the procedure below and then re-enter it with the modification by creating a new SNMP trap. © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 71 The Host table entry is removed from the table. No confirmation message is displayed. Go Save Settings to Flash section to save the change on the flash to make sure the change is permanent. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 72: Access Control Config

    Note: Please note that when adding polices, it is important to note that the rule/policy order of priority in which the rules/policies are evaluated by the switch, one (1) being the highest priority. © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 73 0 to 63. This field indicates the o Destination IP Address: Specifies the destination IP DSCP level of interest. This field is not mandatory and you address. may elect to leave it blank. © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 74 4 port ranging from 1 to 65535. o Policy Sequence: Enter a number in the Policy Sequence field. The Policy Sequence must be a unique number within the range of 1 to 65535. This field is mandatory. © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 75 If the entries span multiple pages, you can navigate page number in the Page field and click Go or you can click First, Previous, Next, and Last Page to navigate the pages. © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 76 1–65535 which identifies the policy. This field is mandatory.  Enter a number in the Committed Rate column ranging from 1 to 15625.  Click Add to add the rate control settings to the Rate Control Table. © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 77 Then select the order to sort Index or Sequence. Note: The Any option will display policies for all ports. View the active policies associated with the specified port. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 78: Rmon

    RMON feature to be active. RMON. Click Apply to save settings. Go Save Settings to Flash section to save the change on the flash to make sure the change is permanent. © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 79 Ethernet traffic. Owner: This parameter is used to identify the person who created an entry. It is primarily intended for switches that are managed by more than one person, and is an optional field. © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 80 Page field and click Go or you can click First, Previous, Next, and Last Page to navigate the pages. Go Save Settings to Flash section to save the change on the flash to make sure the change is permanent. © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 81 The choices are to log a message in the event log of the Switch, send an SNMP trap to an SNMP workstation, or © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 82 This parameter specifies the event index for the Index: falling threshold. Its range is 1 to 65535. This field is mandatory and must match an Event Index that you previously entered in “Events”. © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 83 Page field and click Go or you can click First, Previous, Next, and Last Page to navigate the pages. Go Save Settings to Flash section to save the change on the flash to make sure the change is permanent. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 84: Voice Vlan

    IP phone in the first three complete bytes of its MAC address. The “Not Member” ports are eligible to dynamically join the voice VLAN when voice data is detected with a predefined OUI in the source MAC © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 85 VLAN ID that matches your voice VLAN ID. Each of the voice VLAN ports connected to an IP phone should be configured as “Not Member” ports of the tagged VLAN. © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 86 CoS: This parameter is CoS priority level assigned to the voice data packets received on each voice VLAN port. For the COS priority to be effective, QoS must be Enabled. Click Apply to apply the settings. • © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 87 Enter the MAC address in the User Defined OUI. Telephony OUI • field of one of the IP phones with the manufacturer's OUI. Click Add. The new OUI entry is displayed in the table at the • bottom of the page. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 88: Security

    Based on these entries, the authentication process is done locally by the Web Management using a standard EAPOL transaction. Note: RADIUS with Extensible Authentication Protocol (EAP) extensions is the only supported authentication server for this feature. © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 89 Port Access Control: This parameter enables or disables Port • Access Control. Select one of the following choices from the pull down menu: o Enable: The Port Access Control feature is activated. o Disable: The Port Access Control feature is de-activated. © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 90 Page field and click Go or you can click First, Previous, Next, and Last Page to navigate the pages. Go Save Settings to Flash section to save the change on the flash to make sure the change is permanent. © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 91 1813. Range: 1 – 65535. Shared Secret: Enter the default authentication and encryption key for RADIUS communication between the device and the RADIUS server. Click Add to add the entry to the table. © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 92 In the list, you can click Modify to modify an entry or click Delete or delete the entry. Go Save Settings to Flash section to save the change on the flash to make sure the change is permanent. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 93: Destination Mac Filter

    Next, and Last Page to navigate the pages. The Destination MAC Filter is a subset of the static MAC address. Go Save Settings to Flash section to save the change on the flash to make sure the change is permanent. © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 94 (Ex. If ARP MAC SA Mismatch is set to Deny, it may cause devices in load balance configuration using shared virtual IP addresses communication issues essential for network server load balancing.) For additional security, you can set these rules to Deny as necessary. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 95: Power Over Ethernet Configuration

    The ports on the PoE switch are assigned to one of three priority levels: power sourcing equipment (PSE). The TPE-4840WS is a PSE device which Critical, High and Low. If all PoE ports are set to the same PoE port priority...
  • Page 96 Review the settings for each port. Next to each port entry, click Apply to save the settings.  Power Budget – Displays the maximum overall TPE-4840WS power budget in watts.  Power Consumption – Displays the current PoE power provided to PoE devices or PDs (Powered devices) in watts.

  • Page 97: Dhcp Snooping

    Select one of the following choices from the pull- Option 82: down menu:  Enabled: Allows an Option 82 packet to be passed through the switch without being altered.  Disabled: Blocks an Option 82 packet from passing through the switch. © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 98 Go Save Settings to Flash section to save the change on the flash to make Go Save Settings to Flash section to save the change on the flash to make sure the change is permanent. sure the change is permanent. © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 99 Apply. Click All if you want to choose all ports to be trusted. Go Save Settings to Flash section to save the change on the flash to make sure the change is permanent. © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 100 Go Save Settings to Flash section to save the change on the flash to make IP Address: Enter the static IP Address assigned to the host. VLAN: Enter the host’s VLAN ID. sure the change is permanent. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 101: Lldp (Link-Layer Discovery Protocol)

    Link Layer Discovery Protocol (LLDP) allows Ethernet network devices, such as switches and routers, to receive and transmit device-related information to directly connected devices on the network and to store data that is learned about other devices. © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 102 Chassis ID This parameter describes the Chassis ID subtype Subtype: which is “macAddress”. You cannot change this parameter. Chassis ID: This parameter lists the MAC Address of the switch. You cannot change this parameter. © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 103 Chassis ID: This parameter is the neighboring device’s chassis Port ID This parameter describes the Port ID subtype of the Subtype: neighboring network device’s port that is connected directly to the switch port. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 104: Statistic

    OutUcastPkts: Outbound Unicast Packets (Pkts), number of outbound unicast packets in packets per second. OutNUcastPkts: Outbound Non-unicast Packets (Pkts), number of outbound non-unicast (such as broadcast and multicast packets) packets. OutDiscards: Outbound Discards (Pkts), number of outbound discarded packets. © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 105 FCS octets) received. Collisions: Number of collisions received. If Jumbo Frames are enabled, the threshold of Jabber Frames is raised to the maximum size of Jumbo Frames. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 106: Switch Maintenance

    To check if there is a firmware upgrade available for your device, please check your TRENDnet model and version using the link. http://www.trendnet.com/downloads/ In addition, it is also important to verify if the latest firmware version is newer than the one your switch is currently running.
  • Page 107 Enter the firmware filename with extension. (.hex) Name: Retry Count: Defined the number of time to attempt to pull the firmware file from the TFTP server. Click Apply to start the firmware upgrade. © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 108 1. Make sure your TFTP server is running and note the IP address of prompted, the configuration file (config.bin) will be saved to your default your server and firmware file name. The TFTP server should be in downloads folder. the same IP subnet as the switch. © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 109 TFTP Server IP: Enter the IP address of your TFTP server.  Config File Name: Enter the configuration file name for the backup. (Default: config.bin) 3. Wait for the switch to restore settings. © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 110 100M, or the cables used are broken and/or of bad in quality. The deviation of “Cable Fault Distance” is +/- 2 meters. No cable may be displayed in the table when the cable is less than 2 meters in length. © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 111 Go Save Settings to Flash section to save the change on the flash to make will be lost after a reboot. sure the change is permanent. © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 112 With Web GUI: You can choose reset to Factory Default or • Factory Default Except IP. If you select Factory Default Except IP, all the configurations will be set to the factory defaults, but the switch management IP remains the same. © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 113 Click Start to start the network connectivity ping test. After the ping test, switch must be an untagged or tagged member of the Default VLAN. click Show Ping Results to check the ping test result. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 114: Save Settings To Flash

    TRENDnet User’s Guide TPE-4840WS Save Settings to Flash Save Settings to Flash Click Save Settings to Flash button to save the change on the flash to make sure the change is permanent. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 115: Web Smart Switch Management Utility

    4. At the Utility installation window, click Next. The TRENDnet Management Utility allows you to do the following:  You can easily discover all TRENDnet web smart switches on your network using the discover feature.  You can modify the IP address settings, change the admin password, and upgrade firmware for multiple switches.

  • Page 116: Using The Utility

    You can also launch the utility from the Start Menu programs. 7. In the Completion window, click Finish. Start > Programs (or All Programs) > TRENDnet Management Utility > TRENDnet Management Utility.exe © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 117: Discovery List

    Delete Item: To delete the device in the Monitor List. switches in the discovery list. Double click or click on the Add to monitor list button to select a device from the Discovery List to the Monitor List. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 118: Device Setting

    Set to switch configuration. The default password of TRENDnet Web Smart Switches is admin. Note: Make sure your computer is in the same sub net with the switch management IP.

  • Page 119: Main Menu Options

    DHCP server. (Only applies if Web Smart switch IP address settings View Log: To show the event of the Switch Management are set to DHCP). Utility and the device. Clear Log: To clear the log. © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 120 Group Interval: This is IGMP group interval. The range is from 120 to 1225 seconds. In the Help tab, you can find the utility information with About action, it will show out the version of the Switch Management Utility. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 121: Technical Specifications

    Management:  HTTP/HTTPS (SSL v2/3 TLS) Web based GUI 16K MAC address entries Address Table:  SNMP v1, v2c, v3 Switch Up to 96Gbps  RMON v1 Fabric/Capacity:  Static Unicast MAC Address © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 122 VLAN:  Multiple management VLAN assignment  Asymmetric VLAN  802.1Q Tagged VLAN  Dynamic GVRP  Up to 256 groups, ID Range 1-4094  Private VLAN (Protected Ports)  Voice VLAN (10 user defined OUIs) © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 123: Troubleshooting

    4. Make sure your computer is connected to one of the Ethernet switch ports. Using the TRENDnet Switch Management Utility to find your smart 5. Since the switch default IP address is 192.168.10.200, make sure switch. Or, you can reset your smart switch to factory default.

  • Page 124: Appendix

    1. Enter Terminal in Spotlight to look for the Terminal app. 2. Click on Terminal to launch the command prompt. 3. In the command prompt, enter ifconfig to display all network interface status on your MAC. © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 125 TRENDnet User’s Guide TPE-4840WS 2. Select the network card you want to configure on the left banner and the network adapter status is showing here. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 126: Network Card

    Windows Key + C and click on Search. 2. Type “network” in the search box and click Settings to focus your search. 5. Click Properties on the selected network adapter. © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 127 7. Click Use the following address and enter the static IP address Properties. and related information. For setting up the TRENDnet product, you can enter 192.168.10.10 as your IP address, 255.255.255.0 as the Subnet mask. Leave the other fields blank. Click OK to apply the changes.
  • Page 128 1. Click Control Panel from the Start menu. 4. Click Properties on the selected network adapter. 2. Type “network” in the search box to focus your selection. Click on Network and Sharing Center © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 129 6. Click Use the following address and enter the static IP address and Properties related information. For setting up the TRENDnet product, you can enter 192.168.10.10 as the IP address, 255.255.255.0 as the Subnet mask. Leave other fields blank. Click OK to apply the changes.
  • Page 130 5. Choose TCP/IP. In Configure IPv4, select Manually. Input the static IP address, subnet mask, and your router IP address. (In order to setup the TRENDnet product, you can put in 192.168.10.10 as the IP address, 255.255.255.0 as the subnet mask and leave router in blank.
  • Page 131 TRENDnet User’s Guide TPE-4840WS 6. Click Apply to apply the changes. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 132: How To Find Your Mac Address

    1. Click the Apple logo in the top-left corner of your screen. Click on System Preferences..In the Internet and Wireless section, click on Network. 3. Click Hardware to find out the MAC address of the network adapter. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 133: Regulations

    This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 134: Europe - Eu Declaration Of Conformity

    Alulírott, TRENDnet nyilatkozom, hogy a TPE-4840WS megfelel a [Hungarian] vonatkozó alapvetõ követelményeknek és az 2004/108/EK és a Česky TRENDnet tímto prohlašuje, že tento TPE-4840WS je ve shodě se 2006/95/EK irányelv egyéb elõírásainak. [Czech] základními požadavky a dalšími příslušnými ustanoveními Polski Niniejszym TRENDnet oświadcza, że TPE-4840WS jest zgodny z...

  • Page 135: Limited Warranty

    Go to http://www.trendnet.com/gpl or http://www.trendnet.com Download Canada are responsible for return shipping fees. Customers shipping from section and look for the desired TRENDnet product to access to the GPL Code or outside of the USA are responsible for custom charges, including but not limited LGPL Code.

This manual is also suitable for:

Tpe-484ows

Table of Contents
