15

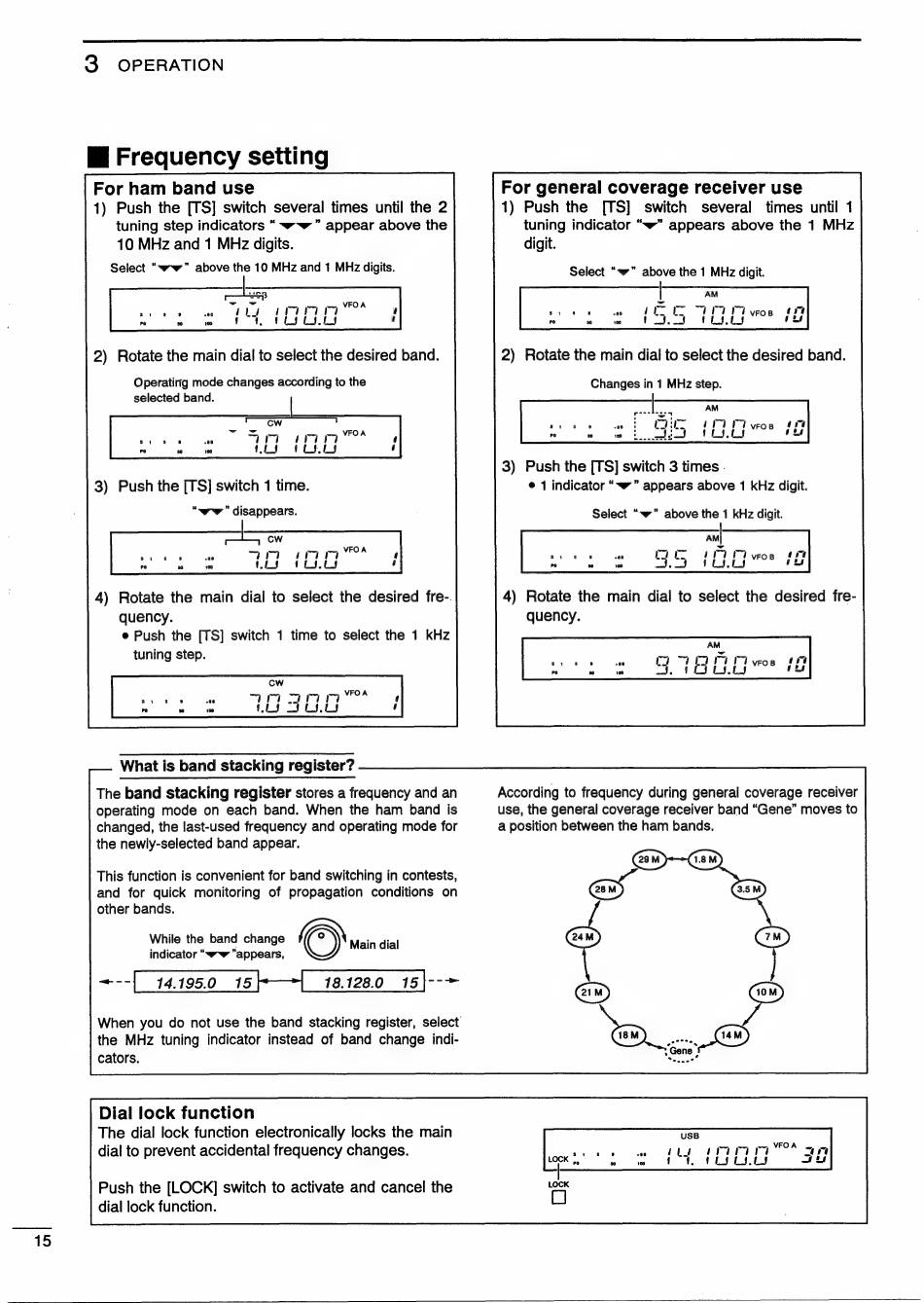

3 OPERATION
For ham band use
1) Push the [TS] switch several times until the 2
tuning step indicators " ww" appear above the
10 MHz and 1 MHz digits.
Select "ww" above the 10 MHz and 1 MHz digits.
4
4
2) Rotate the main dial to select the desired band.
Operating mode changes according to the
selected band.
3) Push the [TS] switch 1 time.
"ww " disappears.
Cw
am sia
LLI 13.19
4) Rotate the main dial to select the desired fre-.
quency.
e Push the [TS] switch 1 time to select the 1 kHz
tuning step.
What is band stacking register?
The band stacking register stores a frequency and an
operating mode on each band. When the ham band is
changed, the last-used frequency and operating mode for
the newly-selected band appear.
This function is convenient for band switching in contests,
and for quick monitoring of propagation conditions on
other bands.
While the band change Main dial
indicator "ww "appears,
—+--| 14.195.0 15 18.128.0 15|--~
the MHz tuning indicator instead of band change indi-
cators.
Dial lock function
The dial lock function electronically locks the main
dial to prevent accidental frequency changes.
Push the [LOCK] switch to activate and cancel the
dial lock function.
According to frequency during general coverage receiver
use, the general coverage receiver band "Gene" moves to
a position between the ham bands.
When you do not use the band stacking register, select
For general coverage receiver use
1) Push the [TS] switch several times until 1
tuning indicator "w" appears above the 1 MHz
digit.
Select "w" above the 1 MHz digit.
AM
v
2) Rotate the main dial to select the desired band.
Changes in 1 MHz step.
3) Push the [TS] switch 3 times .
e 1 indicator "w" appears above 1 kHz digit.
Select "w" above the 1 kHz digit.
AM
Cat tPF) Tivos
3.3 NULI
4) Rotate the main dial to select the desired fre-
quency.
Du
Sosua?
