9

CONNECTIONS AND INSTALLATION

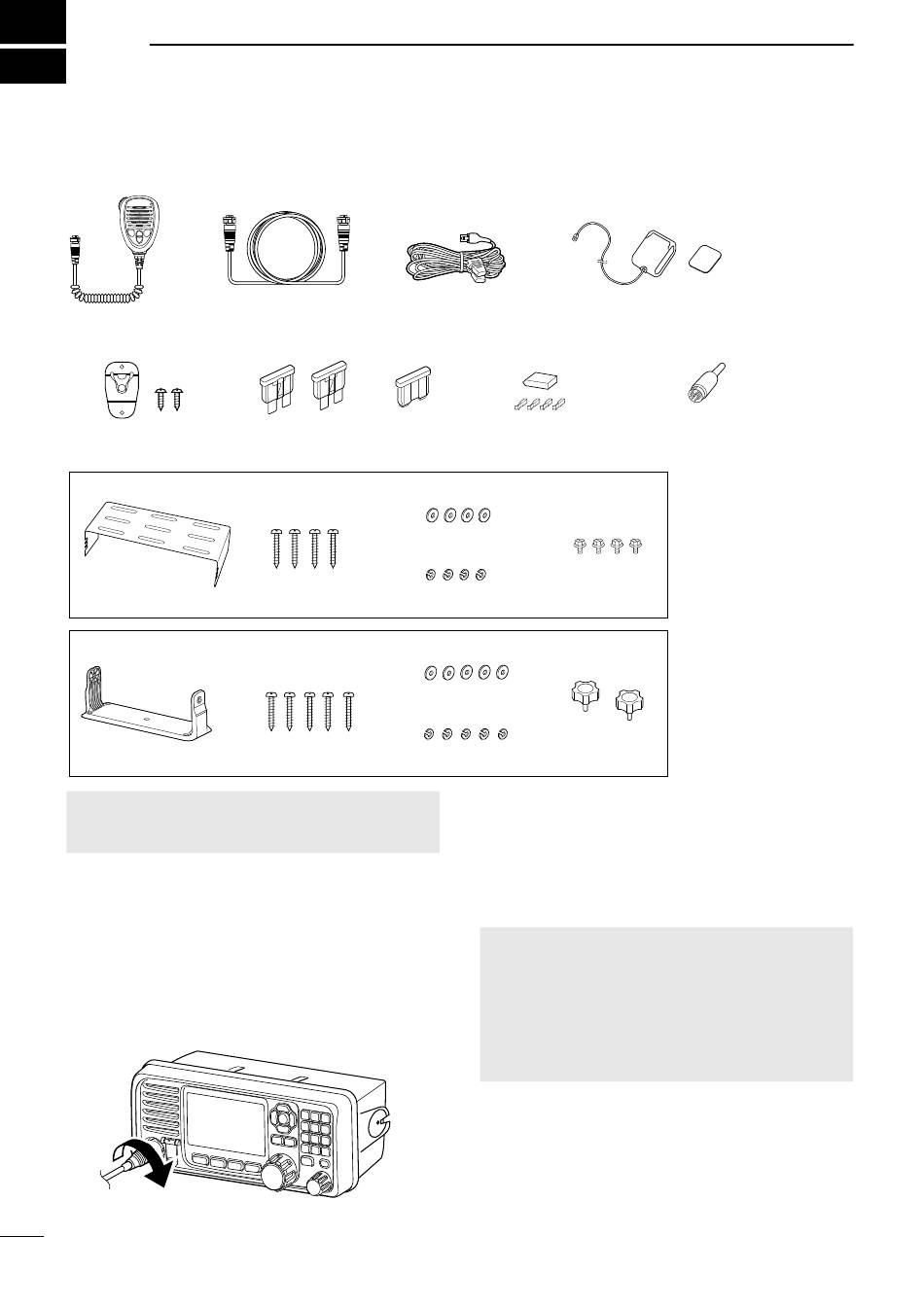

■ Supplied accessories

Microphone
Microphone hanger and
screws (3 × 16 mm)
Mounting bracket kit for the remote controller
Mounting bracket
Mounting bracket kit for the main unit
Mounting bracket
NOTE: Some accessories are not supplied, or the
shape is diff erent, depending on the transceiver
version.

■ Connections

D Connecting the microphone

1. Insert the microphone's connector into the
microphone jack on the remote controller's front
panel.
2. Rotate the connector clockwise until it is
completely tightened.
Microphone's
connector
68
Remote control cable
(5.1 m, 16.7 ft)
Spare fuse Spare fuse
(ATC 30A) (BFLP 5A)
Self-tapping screws (M5) Spring washers (M5)
Self-tapping screws (M5) Spring washers (M5)
DC power cable GPS antenna and
double-sided adhesive pad
Tuner connector kit
Flat washers (M5)
Screws (M5)
Flat washers (M5)
Knobs
CAUTION:
• Be sure that the microphone's connector is
screwed in completely. Otherwise, the remote
controller may lose its waterproof protection.
• DO NOT use non-Icom microphones. Other
manufacturer's microphones have diff erent pin
assignments, and connection to the remote
controller may damage it.
Accessory connector
(8-pin DIN)
