INSTALLATION AND CONNECTIONS 2

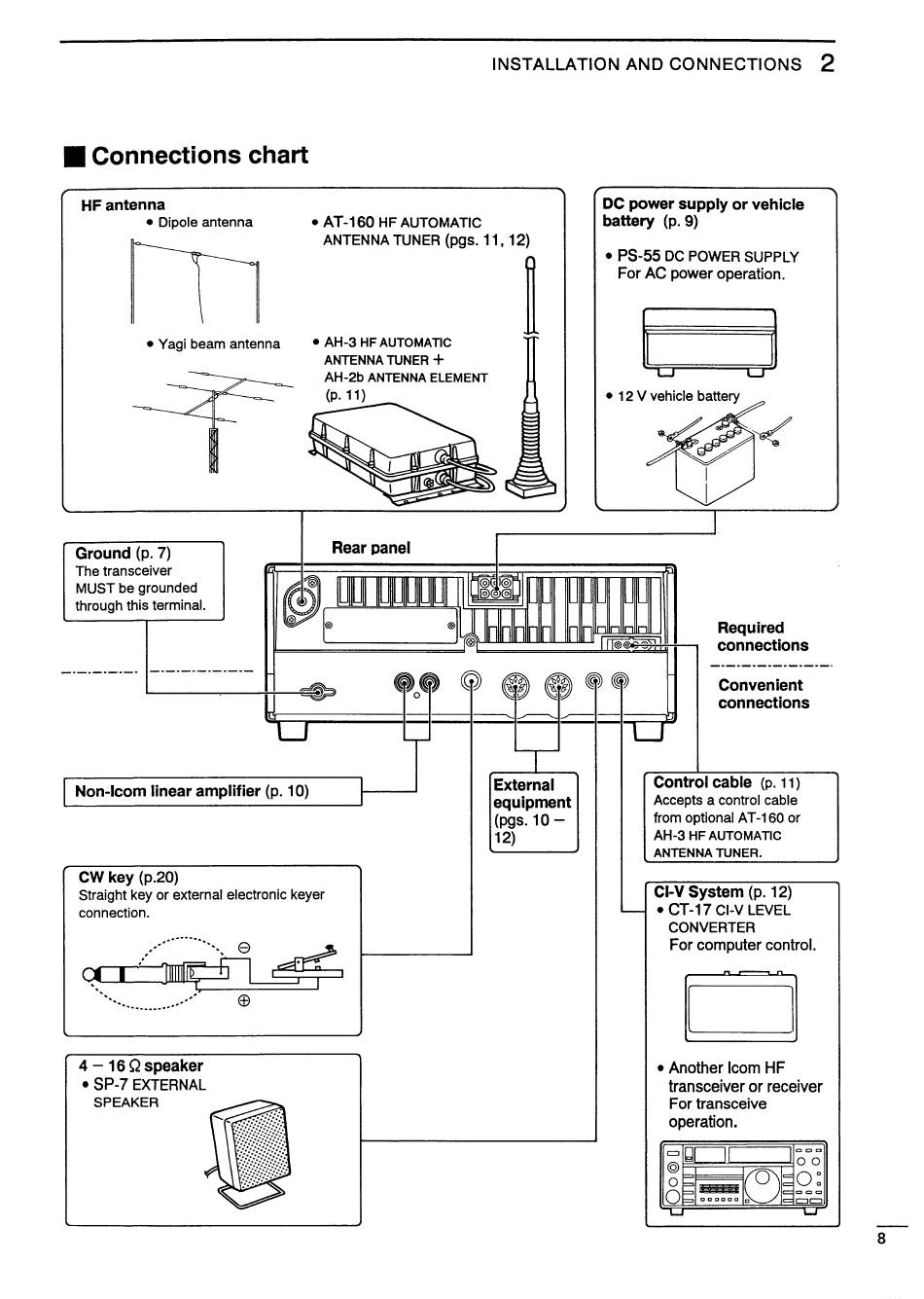

Mi Connections chart
e Yagi beam antenna e AH-3 HF AUTOMATIC
ANTENNA TUNER +
AH-2b ANTENNA ELEMENT
Ground (p. 7)
The transceiver
©
must
bo omas | |I AS) D T
ul
mila
| T Required
connections
Convenient
connections
equipment Accepts a control cable
from optional AT-160 or
AH-3 HF AUTOMATIC
ANTENNA TUNER.
CW key (p.20)
Straight key or external electronic keyer CI-V System (p. 12)
connection. e CT-17 CI-V LEVEL
< CONVERTER
For computer control.
4 — 16 Q speaker
e SP-7 EXTERNAL
SPEAKER
e Another Icom HF
transceiver or receiver
For transceive
operation.
a
oe
o E
cae aco
0009050019 ==
|
