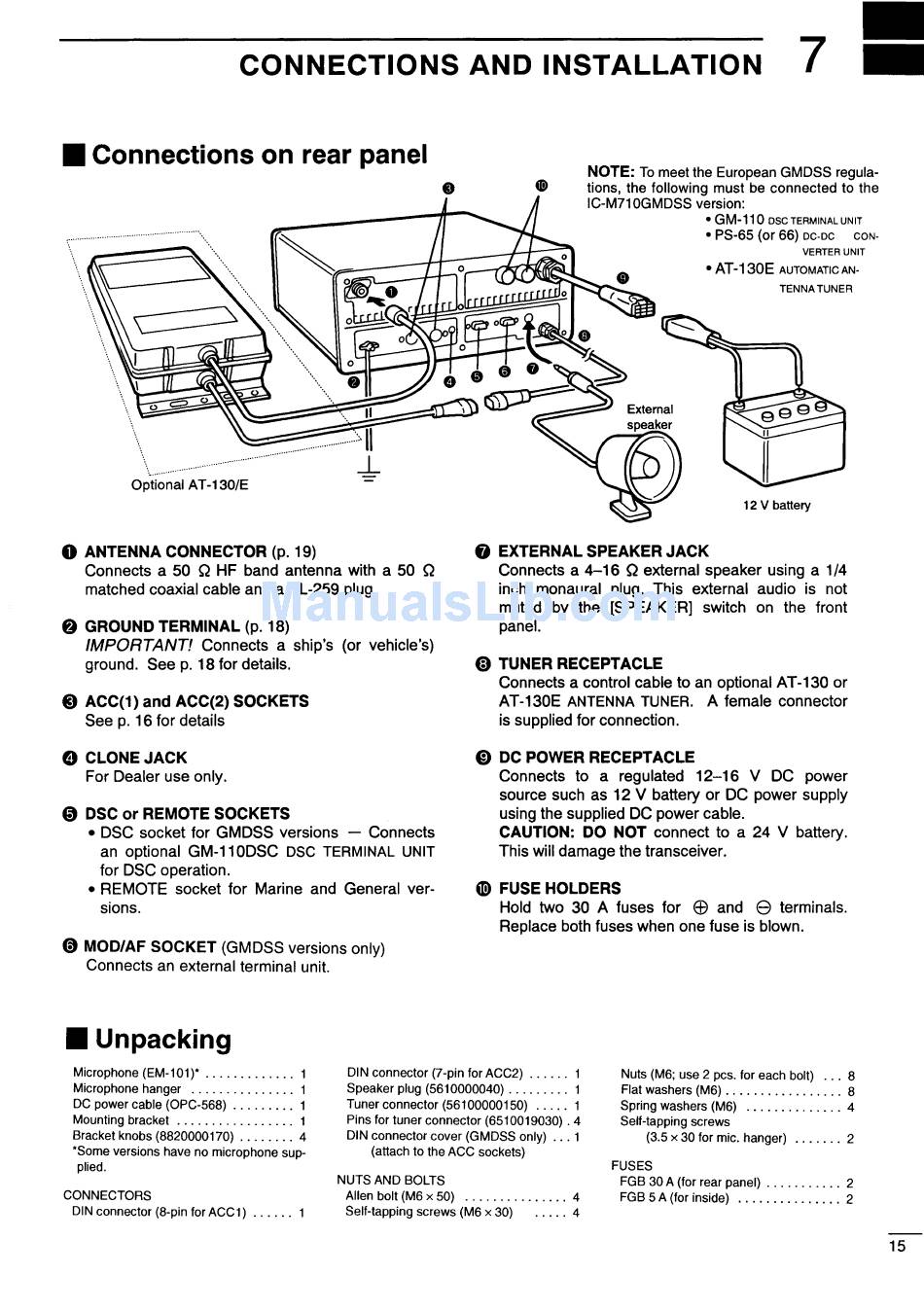

CONNECTIONS AND INSTALLATION
7
• Connections on rear panel
0
ANTENNA CONNECTOR (p. 19)
Connects a 50 Q HF band antenna with a 50 Q
matched coaxial cable and a PL-259 plug.
8
GROUND TERMINAL (p. 18)
IMPORTANT!
Connects a ship's (or vehicle's)
ground. See p. 18 for details.
8
ACC(1) and ACC(2) SOCKETS
See p. 16 for details
8
CLONEJACK
For Dealer use only.
0
DSC or REMOTE SOCKETS
• DSC socket for GMDSS versions - Connects
an optional GM-110DSC
DSC TERMINAL UNIT
for DSC operation.
• REMOTE socket for Marine and General ver-
sions.
0
MOD/AF SOCKET (GMDSS versions only)
Connects an external terminal unit
• Unpacking
NOTE:
To meet the European GMDSS regula-
tions, the following must be connected to the
IC-M710GMDSS version:
• GM-110
DSCTERMINALUNIT
• PS-65 (or 66)
DC-DC
coN-
VERTER UNIT
• AT-130E
AUTOMATIC AN-
TENNA TUNER
12 V battery
6
EXTERNALSPEAKERJACK
Connects a 4-16 Q external speaker using a 1/4
inch monaural plug. This external audio is not
muted by the [SPEAKER] switch on the front
panel.
C) TUNER RECEPTACLE
Connects a control cable to an optional AT-130 or
AT-130E
ANTENNA TUNER.
A female connector
is supplied for connection.
@) DC POWER RECEPTACLE
Connects to a regulated 12-16 V DC power
source such as 12
V
battery or DC power supply
using the supplied DC power cable.
CAUTION: DO NOT connect to a 24 V battery.
This will damage the transceiver.
«!) FUSE HOLDERS
Hold two 30 A fuses for
E6
and
8
terminals.
Replace both fuses when one fuse is blown.
Microphone (EM-101)* ............. 1
DIN connector (7-pin for ACC2) ...... 1
Nuts (M6; use 2 pes. for each bolt) . . . 8
Flat washers (M6) . . . . . . . . . . . . . . . . . 8
Microphone hanger . . . . . . . . . . . . . . . 1
DC power cable (OPC-568) ......... 1
Mounting bracket . . . . . . . . . . . . . . . . . 1
Bracket knobs (8820000170) .. _ ..... 4
*Some versions have no microphone sup-
plied.
CONNECTORS
DIN connector (8-pin for ACC1) ...... 1
Speaker plug (5610000040) ......... 1
Tuner connector (56100000150) ..... 1
Pins for tuner connector (6510019030). 4
DIN connector cover (GMDSS only) ... 1
(attach to the ACC sockets)
NUTS AND BOLTS
Allen bolt (M6 x 50) . . . . . . . . . . . . . . . 4
Self-tapping screws (M6 x 30)
. . . . . 4
Spring washers (M6) .............. 4
Self-tapping screws
(3.5 x 30 for mic. hanger) ....... 2
FUSES
FGB 30 A (for rear panel) . . . . . . . . . . . 2
FGB 5 A (for inside) ............... 2
15
