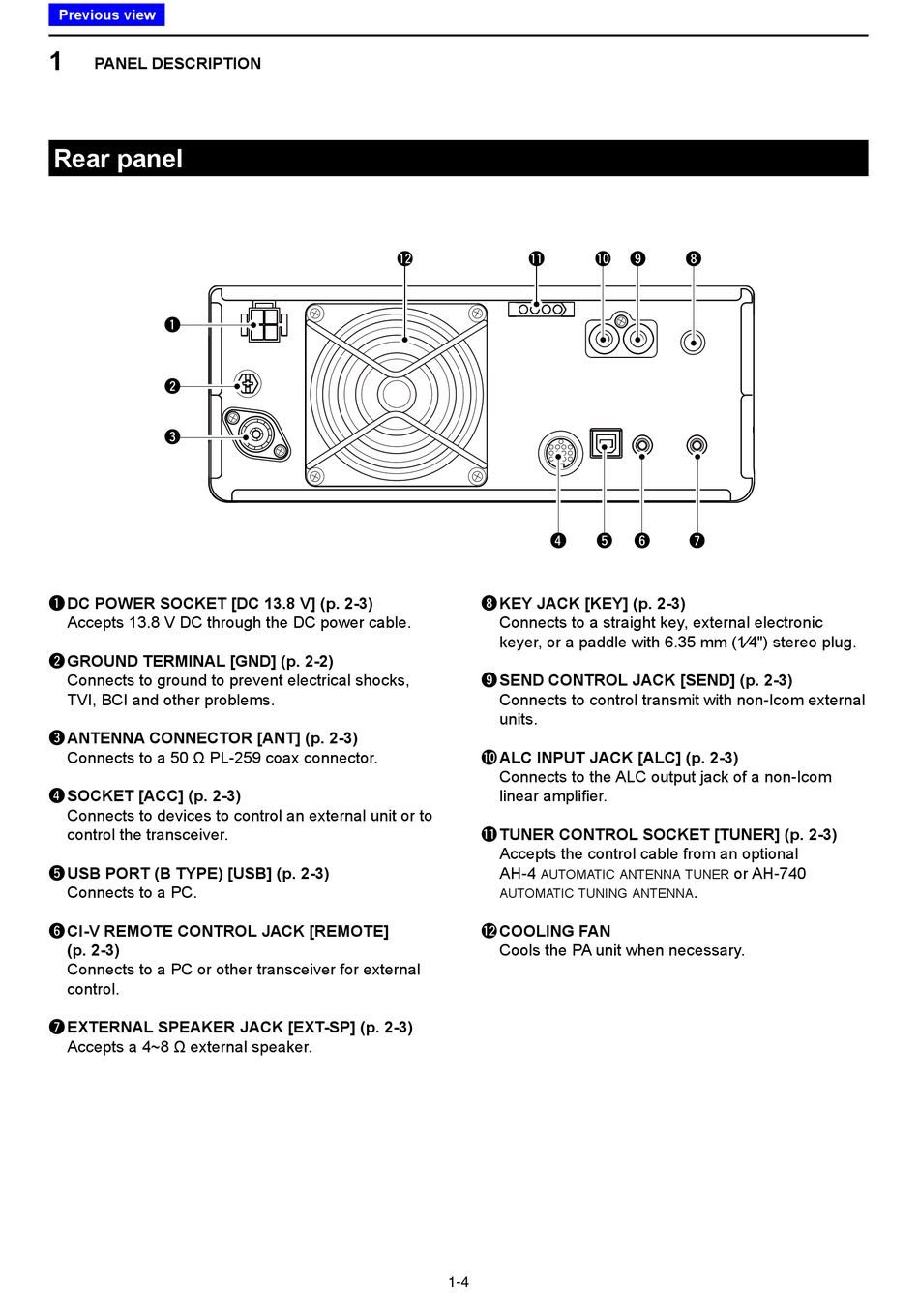

PANEL DESCRIPTION

Rear panel

q
w
e
q DC POWER SOCKET [DC 13.8 V] (p. 2-3)
Accepts 13.8 V DC through the DC power cable.
w GROUND TERMINAL [GND] (p. 2-2)
Connects to ground to prevent electrical shocks,
TVI, BCI and other problems.
e ANTENNA CONNECTOR [ANT] (p. 2-3)
C onnects to a 50 Ω PL-259 coax connector.
r SOCKET [ACC] (p. 2-3)
Connects to devices to control an external unit or to
control the transceiver.
t USB PORT (B TYPE) [USB] (p. 2-3)
Connects to a PC.
y CI-V REMOTE CONTROL JACK [REMOTE]
(p. 2-3)
Connects to a PC or other transceiver for external
control.
u EXTERNAL SPEAKER JACK [EXT-SP] (p. 2-3)
Accepts a 4~8 Ω external speaker.
!2 !1
r
i KEY JACK [KEY] (p. 2-3)
Connects to a straight key, external electronic
keyer, or a paddle with 6.35 mm (1⁄4") stereo plug.
o SEND CONTROL JACK [SEND] (p. 2-3)
Connects to control transmit with non-Icom external
units.
!0 ALC INPUT JACK [ALC] (p. 2-3)
Connects to the ALC output jack of a non-Icom
linear amplifier.
!1 TUNER CONTROL SOCKET [TUNER] (p. 2-3)
Accepts the control cable from an optional
AH-4
automatic antenna tuner
automatic tuning antenna
!2 COOLING FAN
Cools the PA unit when necessary.
1-4
!0 o i
t y u
