A: Technical Specifications and Pinouts

USB Type A Connector

88

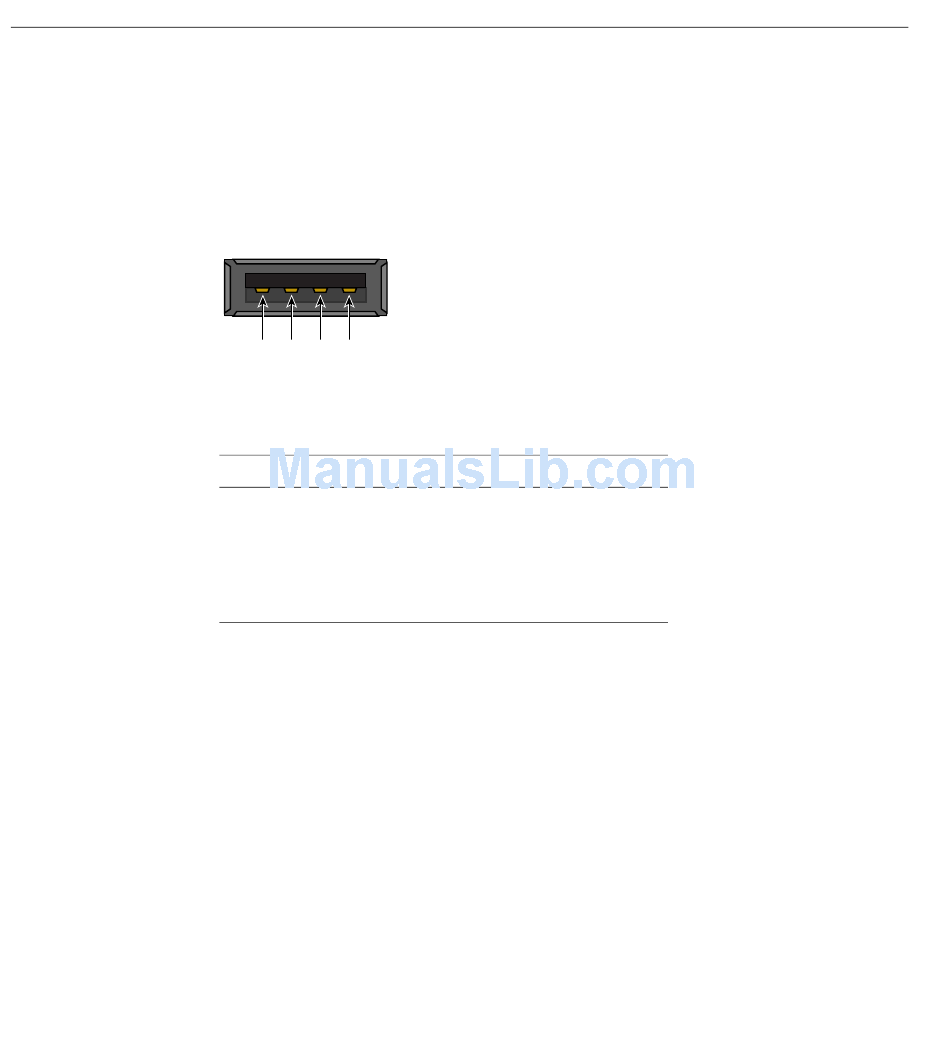

Figure A-4 shows the USB type A connector provided on the baseIO riser blade that supports
general USB applications and optional keyboard and mouse configurations.
Table A-8 lists the pin assignments for the USB type A connector.
1 2 3 4
Figure A-4
Pin Number Locations for USB Type A Connector
Table A-8
Pin Assignments for USB Type A Connector
Signal Color
VCC Red
-Data White
+Data Green
Ground Black
Pin Number
1
2
3
4
007-5832-002
