Expansion cards and backup units

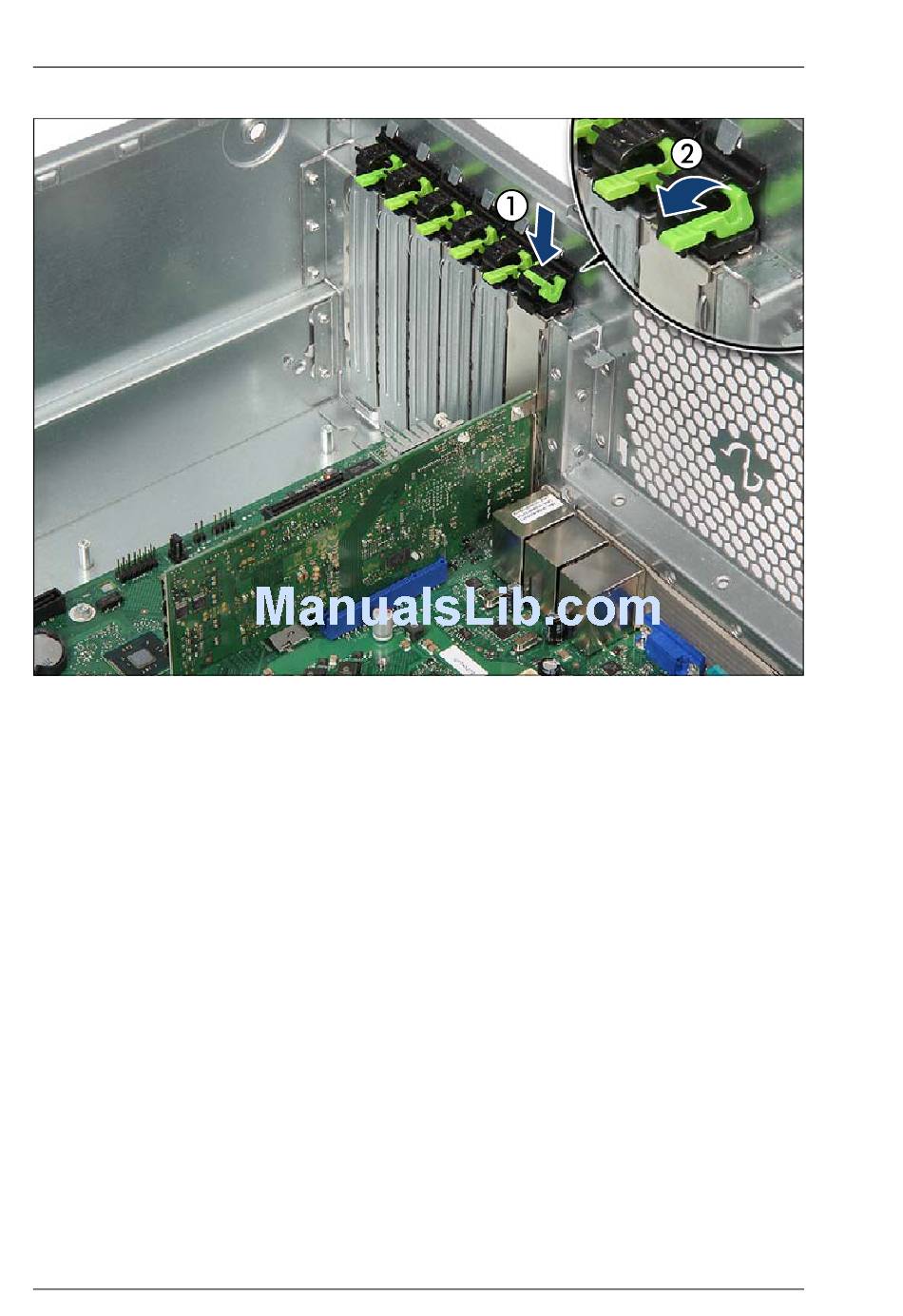

Figure 99: Installing the expansion card (B)
Ê Clip on the PCI slot bracket clamp (1).
Ê Fold down the locking handle on the PCI slot bracket clamp until it locks in
place (2).
Ê If applicable, connect internal cables to the expansion card (see section
"Cabling plans" on page
Ê If applicable, install SFP+ transceiver modules to the expansion card as
described in sections
Ê If applicable, connect a BBU or FBU to the expansion card as described in
sections "Installing a BBU" on page 197
9.4.1.4

Concluding steps

"Installing the fan module" on page 152
Ê
"Reassembling" on page 58
Ê
Ê Reconnect all external cables to the replaced expansion card.
178
303).
"Installing SFP+ transceiver modules" on page
Upgrade and Maintenance Manual
or "Installing an FBU" on page
169.
189.
TX1330 M1
