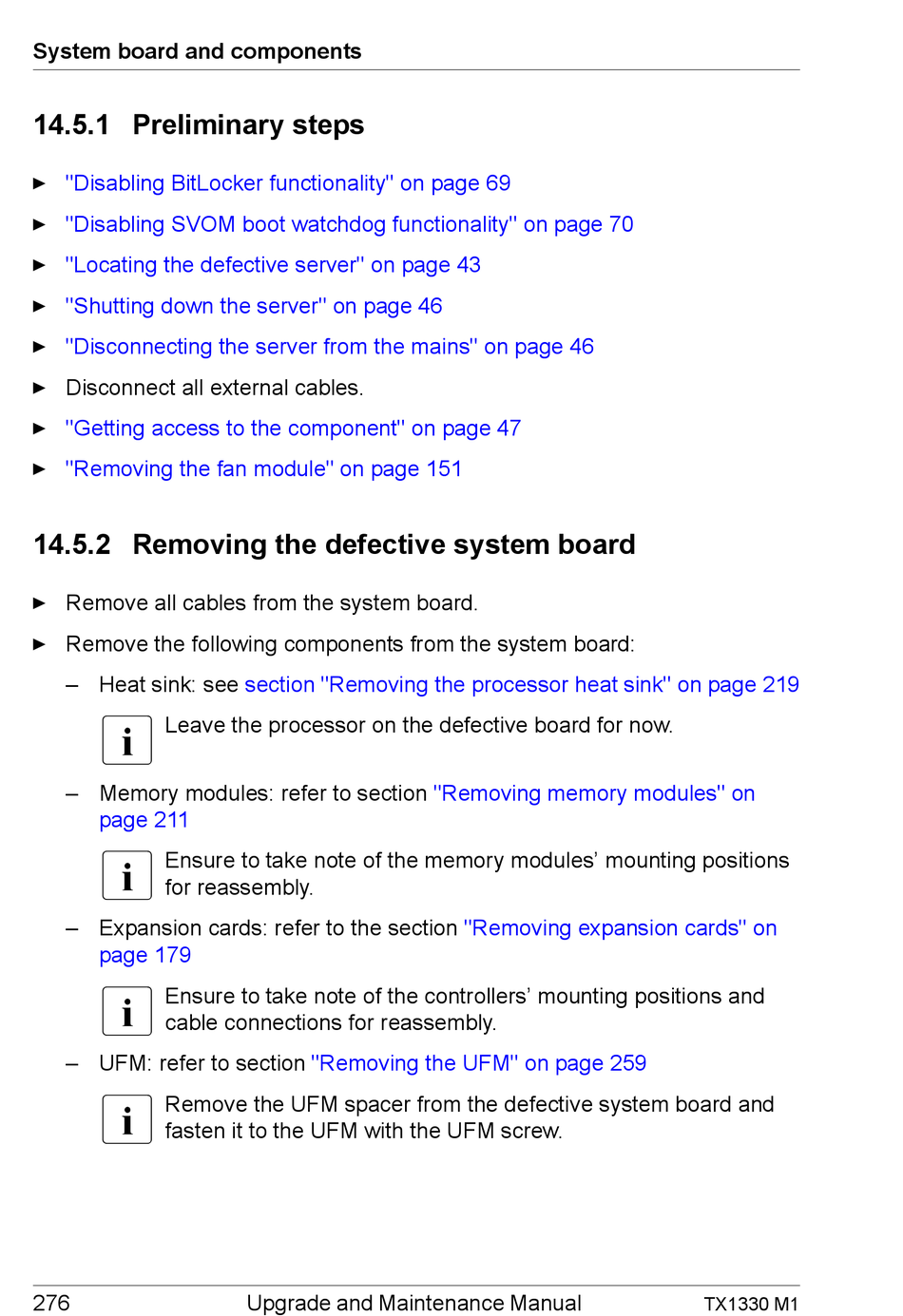

System board and components

14.5.1 Preliminary steps

"Disabling BitLocker functionality" on page 69
Ê
"Disabling SVOM boot watchdog functionality" on page 70
Ê
"Locating the defective server" on page 43
Ê
"Shutting down the server" on page 46
Ê
"Disconnecting the server from the mains" on page 46
Ê
Ê Disconnect all external cables.
"Getting access to the component" on page 47
Ê
"Removing the fan module" on page 151
Ê

14.5.2 Removing the defective system board

Ê Remove all cables from the system board.
Ê Remove the following components from the system board:
– Heat sink: see
I
Leave the processor on the defective board for now.
– Memory modules: refer to section
page 211
I
Ensure to take note of the memory modules' mounting positions
for reassembly.
– Expansion cards: refer to the section
page 179
I
Ensure to take note of the controllers' mounting positions and
cable connections for reassembly.
– UFM: refer to section
I
Remove the UFM spacer from the defective system board and
fasten it to the UFM with the UFM screw.
276
section "Removing the processor heat sink" on page 219
"Removing the UFM" on page 259
Upgrade and Maintenance Manual
"Removing memory modules" on
"Removing expansion cards" on
TX1330 M1
