Fujitsu Server PRIMERGY TX1330 M1 Upgrade And Maintenance Manual page 50

Basic hardware procedures

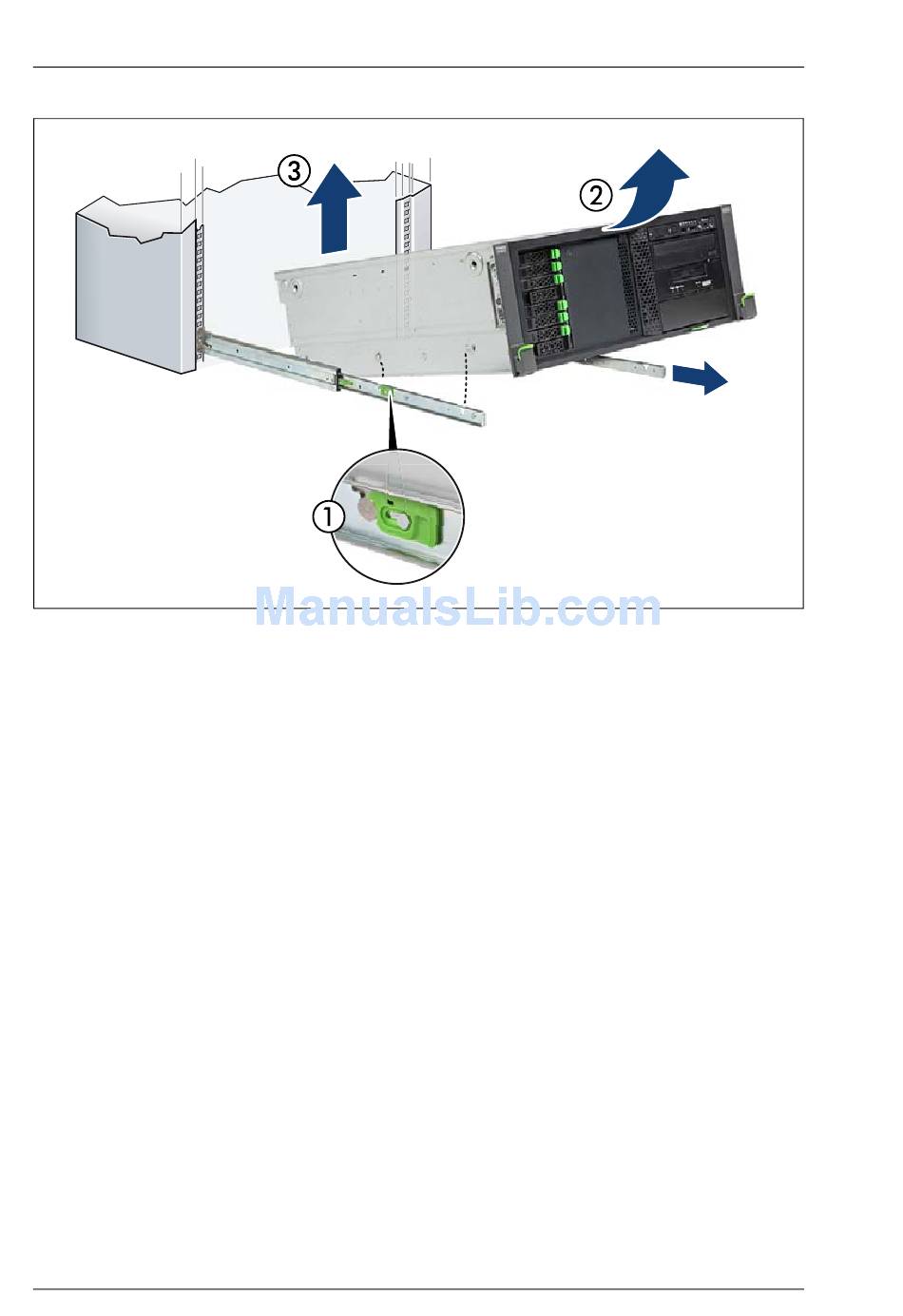

Figure 4: Removing the server from the rack
Ê Release the locking bars on both rails (1).
Ê Lift up the front of the server as shown so that the front and middle rack
mounting bolts are disengaged from the mounting points on the telescopic
rails (2).
Ê Lift the server out of the rear mounting points (3) and place it on an even
surface.
50 Upgrade and Maintenance Manual
TX1330 M1
