17.2.1.4 I/O panel indicators

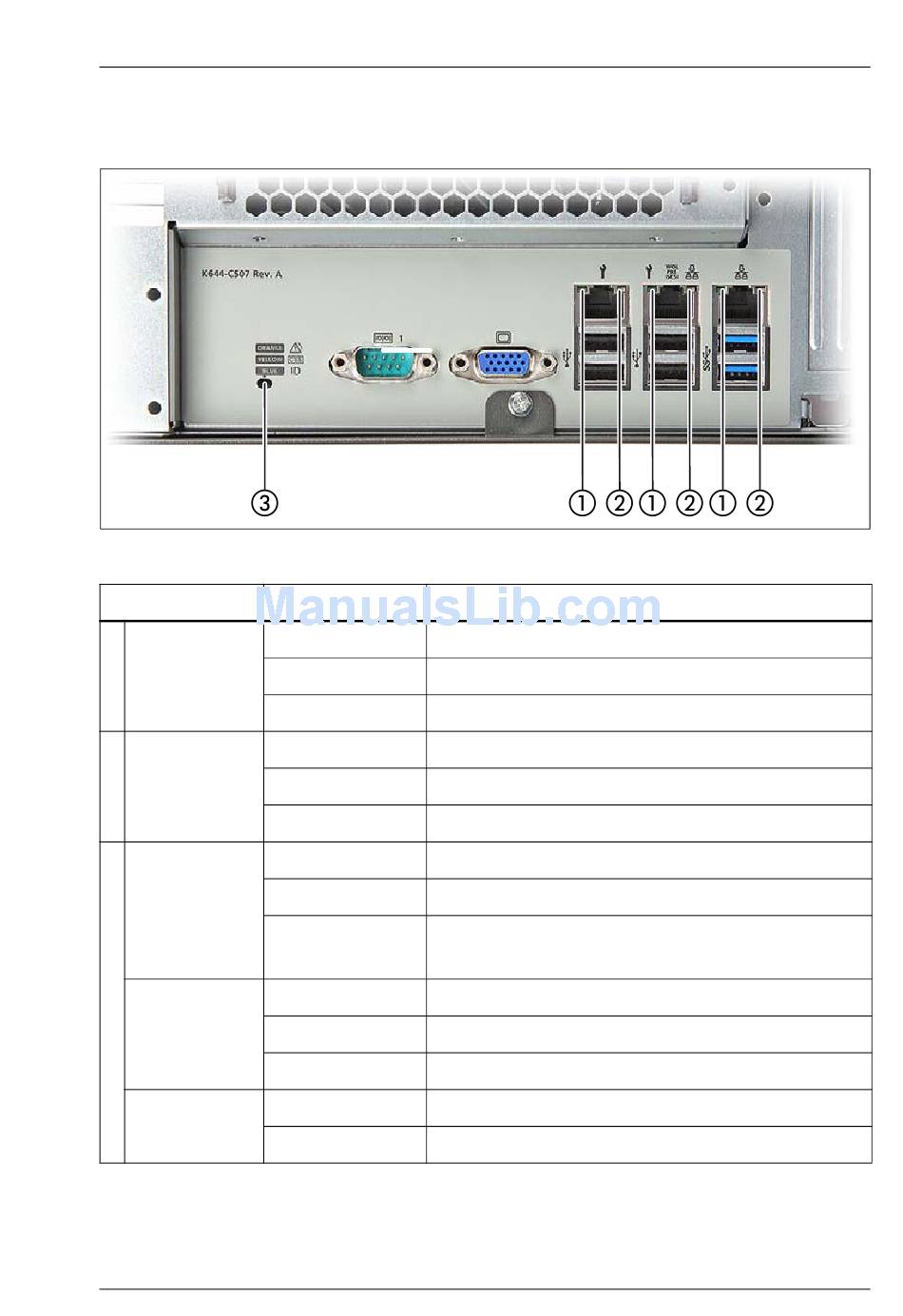

Figure 228: I/O panel indicators
Indicator
LAN
1
link/transfer
2 LAN speed
Global error
indicator
3
CSS
indicator
ID indicator
TX1330 M1
Status Description
green on LAN connection established
off no LAN connection
green flashing data transfer in progress
yellow on traffic a transfer rate of 1 Gbit/s
green on traffic a transfer rate of 100 Mbit/s
off traffic a transfer rate of 10 Mbit/s
off no critical event (non CSS component)
orange on prefailure detected (non CSS component)
orange
non CSS component failure
flashing
off no critical event (CSS component)
yellow on prefailure detected (CSS component)
yellow flashing CSS component failure
blue on Localizes the server
blue flashing Local monitor off
Upgrade and Maintenance Manual
Appendix
327
