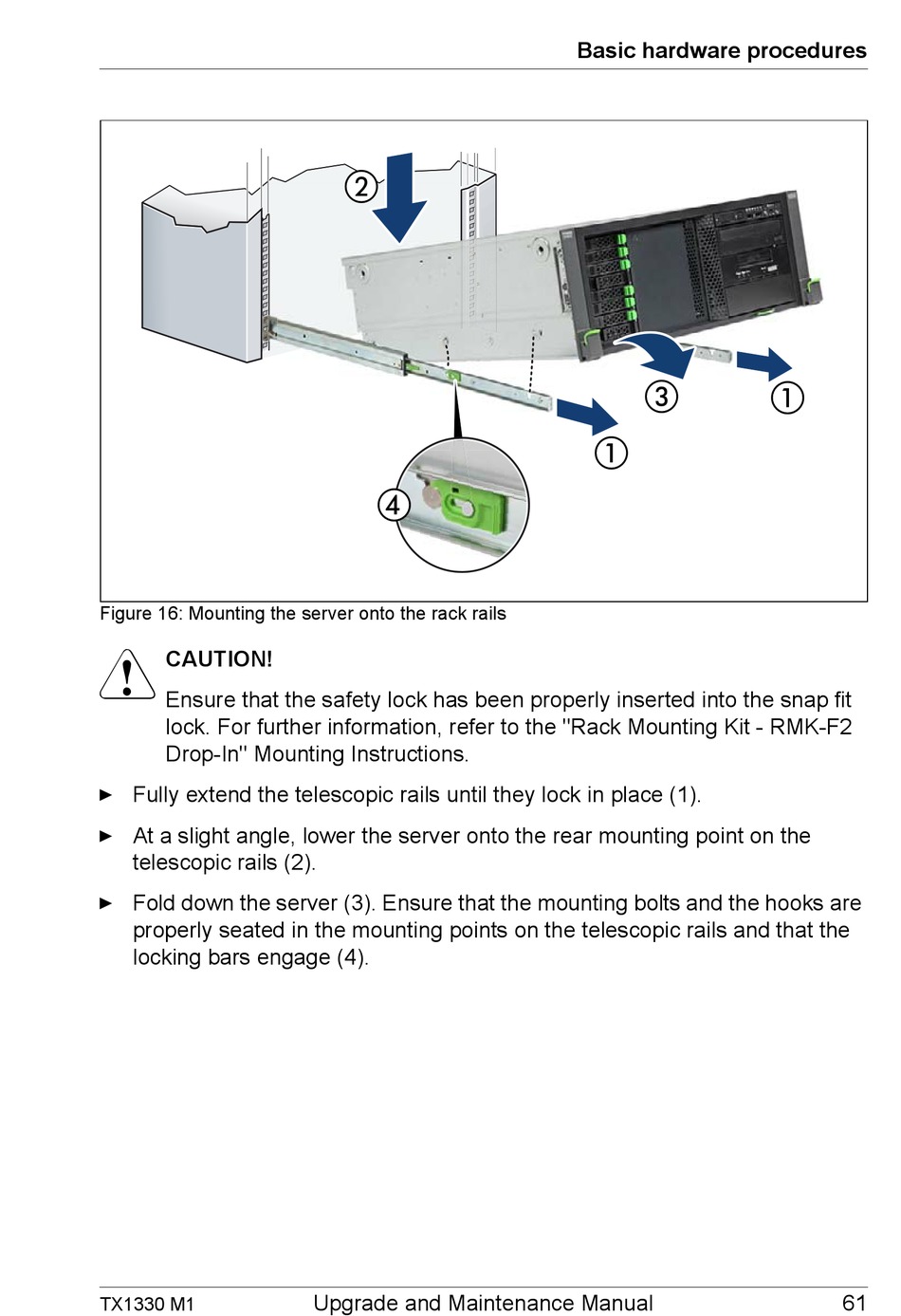

Figure 16: Mounting the server onto the rack rails
V
CAUTION!
Ensure that the safety lock has been properly inserted into the snap fit
lock. For further information, refer to the "Rack Mounting Kit - RMK-F2
Drop-In" Mounting Instructions.
Ê Fully extend the telescopic rails until they lock in place (1).
Ê At a slight angle, lower the server onto the rear mounting point on the
telescopic rails (2).
Ê Fold down the server (3). Ensure that the mounting bolts and the hooks are
properly seated in the mounting points on the telescopic rails and that the
locking bars engage (4).
