13.1.2 Removing the defective front panel module

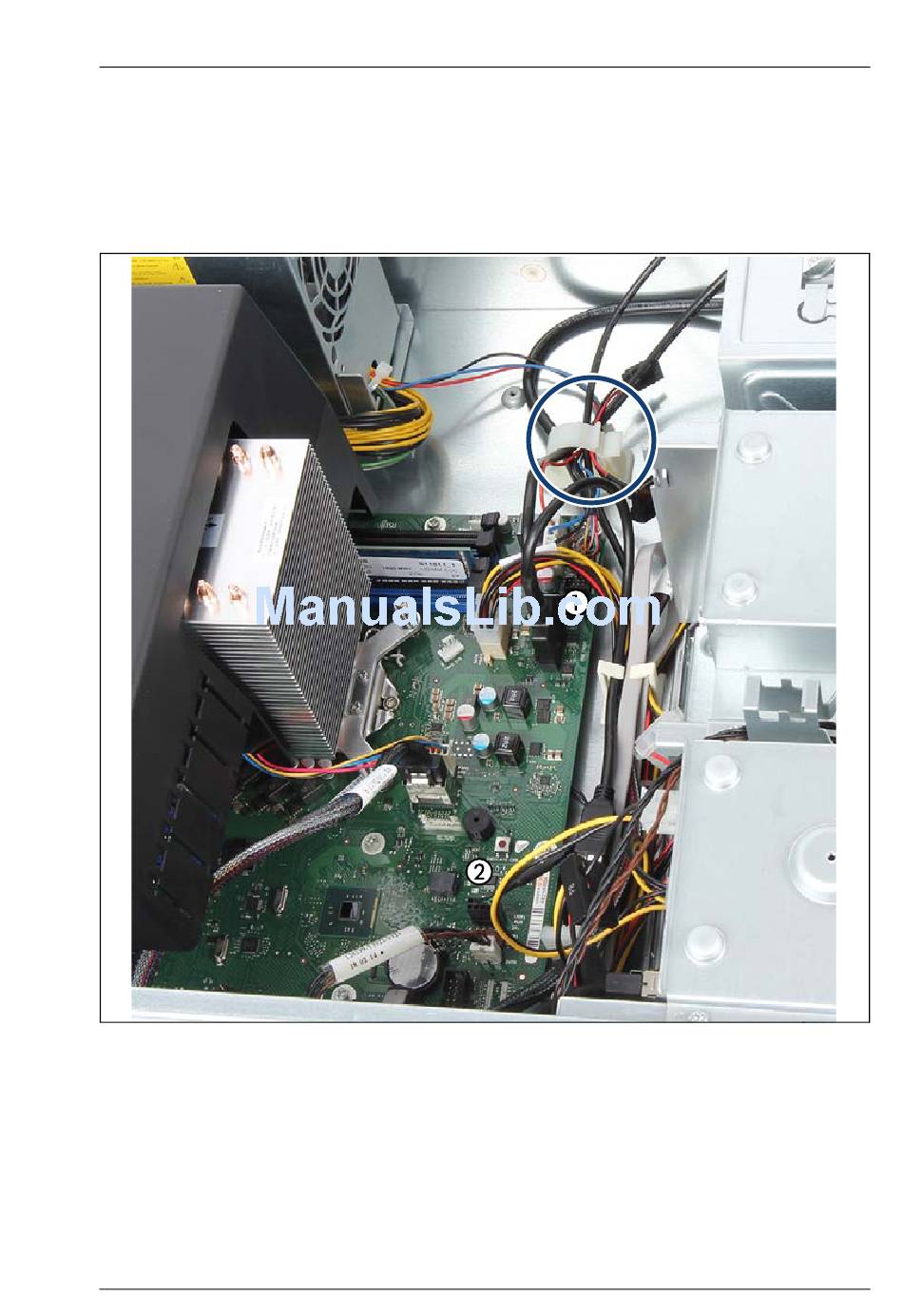

Figure 154: Disconnecting cables from system board
Ê Disconnect the front panel cable (1) and the front USB cable (2) from the
system board.
Ê Remove both cables from the cable clamp (see circle).
TX1330 M1
Upgrade and Maintenance Manual
Front panel module
249
