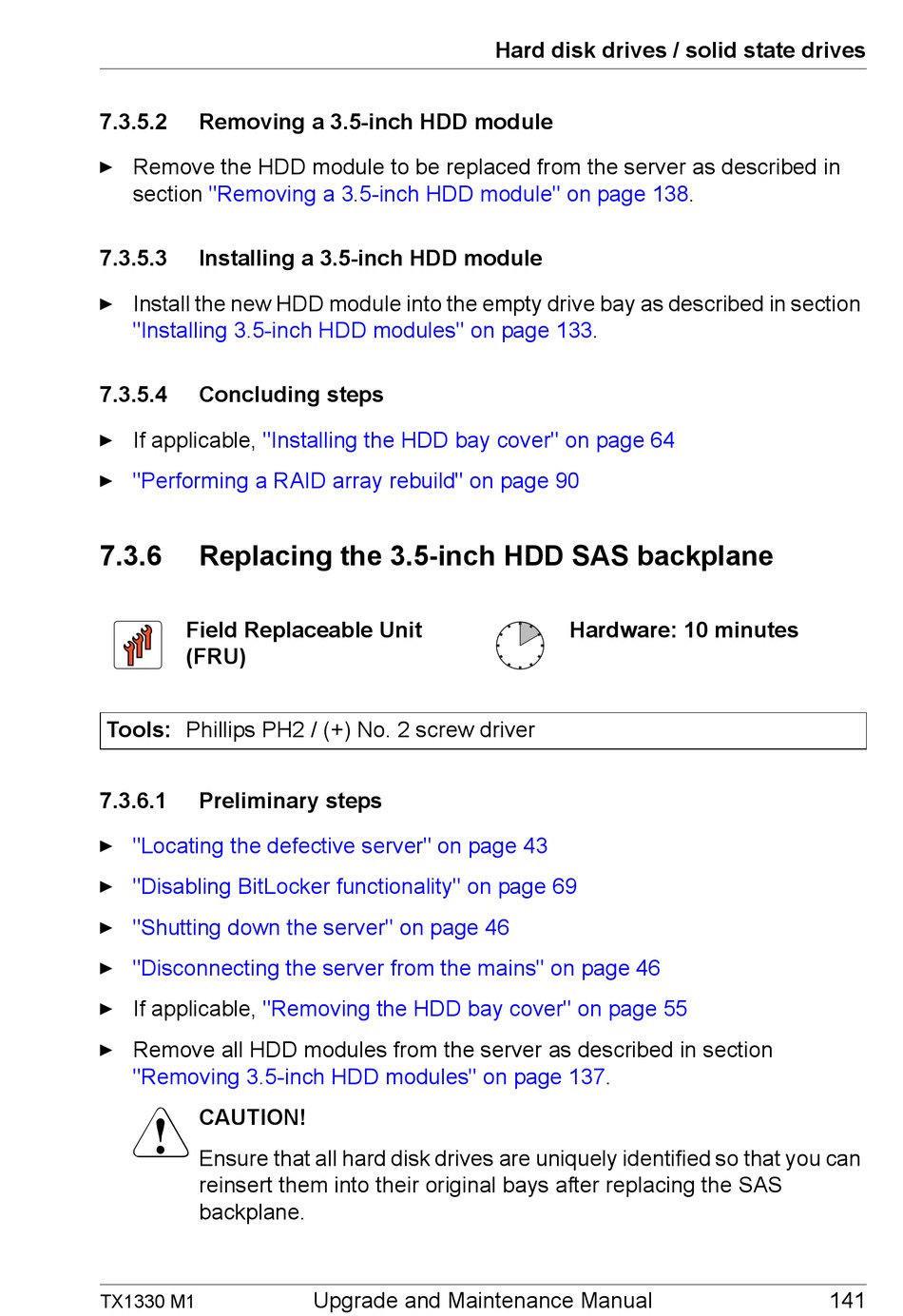

7.3.5.2

Removing a 3.5-inch HDD module

Ê Remove the HDD module to be replaced from the server as described in
section
"Removing a 3.5-inch HDD module" on page
7.3.5.3

Installing a 3.5-inch HDD module

Ê Install the new HDD module into the empty drive bay as described in section
"Installing 3.5-inch HDD modules" on page
7.3.5.4

Concluding steps

Ê If applicable,
"Installing the HDD bay cover" on page 64
"Performing a RAID array rebuild" on page 90
Ê
7.3.6

Replacing the 3.5-inch HDD SAS backplane

Field Replaceable Unit
(FRU)
Tools: Phillips PH2 / (+) No. 2 screw driver
7.3.6.1

Preliminary steps

"Locating the defective server" on page 43
Ê
"Disabling BitLocker functionality" on page 69
Ê
"Shutting down the server" on page 46
Ê
"Disconnecting the server from the mains" on page 46
Ê
Ê If applicable,
"Removing the HDD bay cover" on page 55
Ê Remove all HDD modules from the server as described in section
"Removing 3.5-inch HDD modules" on page
V
CAUTION!
Ensure that all hard disk drives are uniquely identified so that you can
reinsert them into their original bays after replacing the SAS
backplane.
TX1330 M1
Upgrade and Maintenance Manual
Hard disk drives / solid state drives
138.
133.
Hardware: 10 minutes
137.
141
