Expansion cards and backup units
9.4.1.2

Removing the PCI slot bracket

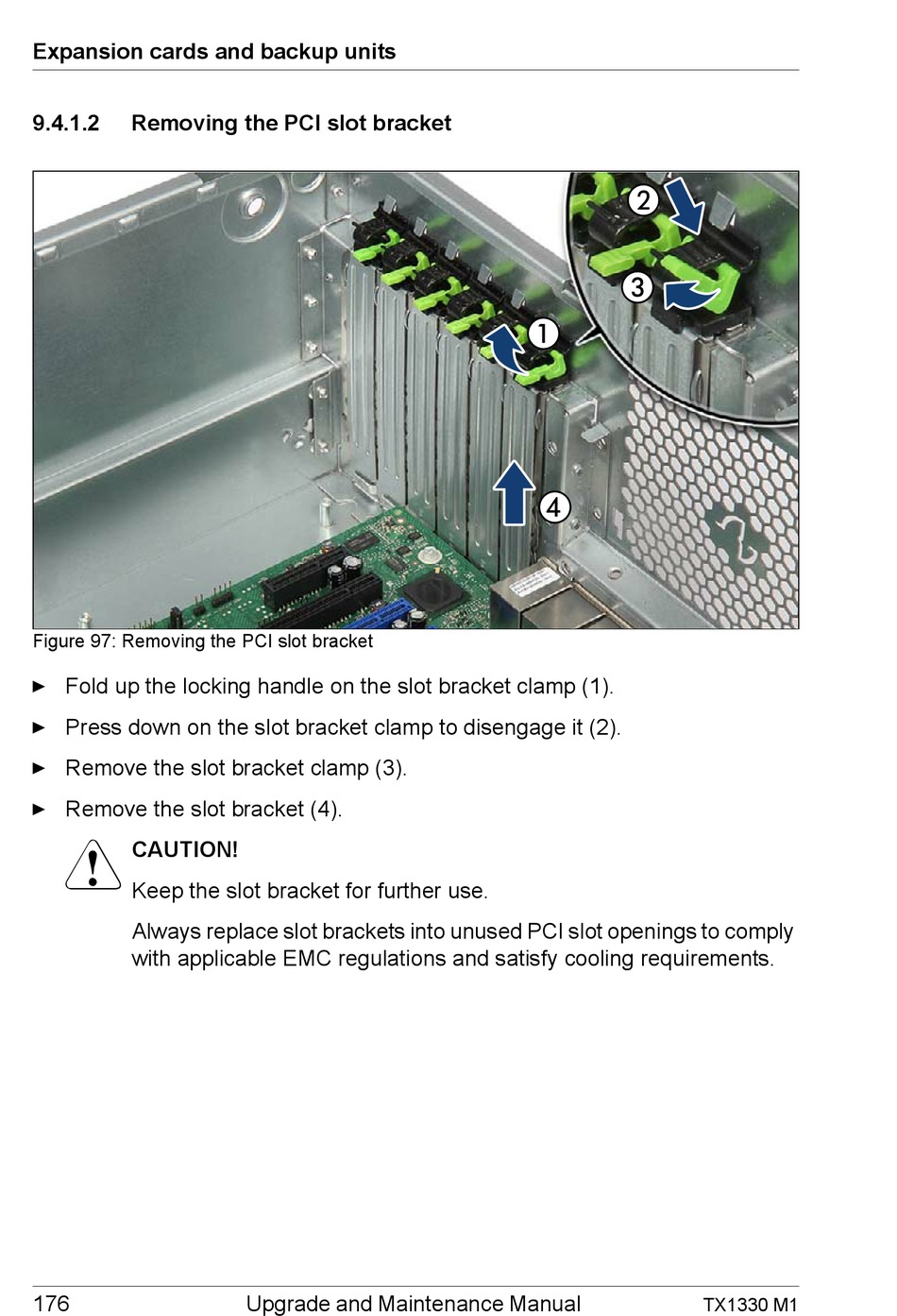

Figure 97: Removing the PCI slot bracket
Ê Fold up the locking handle on the slot bracket clamp (1).
Ê Press down on the slot bracket clamp to disengage it (2).
Ê Remove the slot bracket clamp (3).
Ê Remove the slot bracket (4).
V
CAUTION!
Keep the slot bracket for further use.
Always replace slot brackets into unused PCI slot openings to comply
with applicable EMC regulations and satisfy cooling requirements.
