Ê If applicable, cut open the cable clamp (see circle) and remove it.

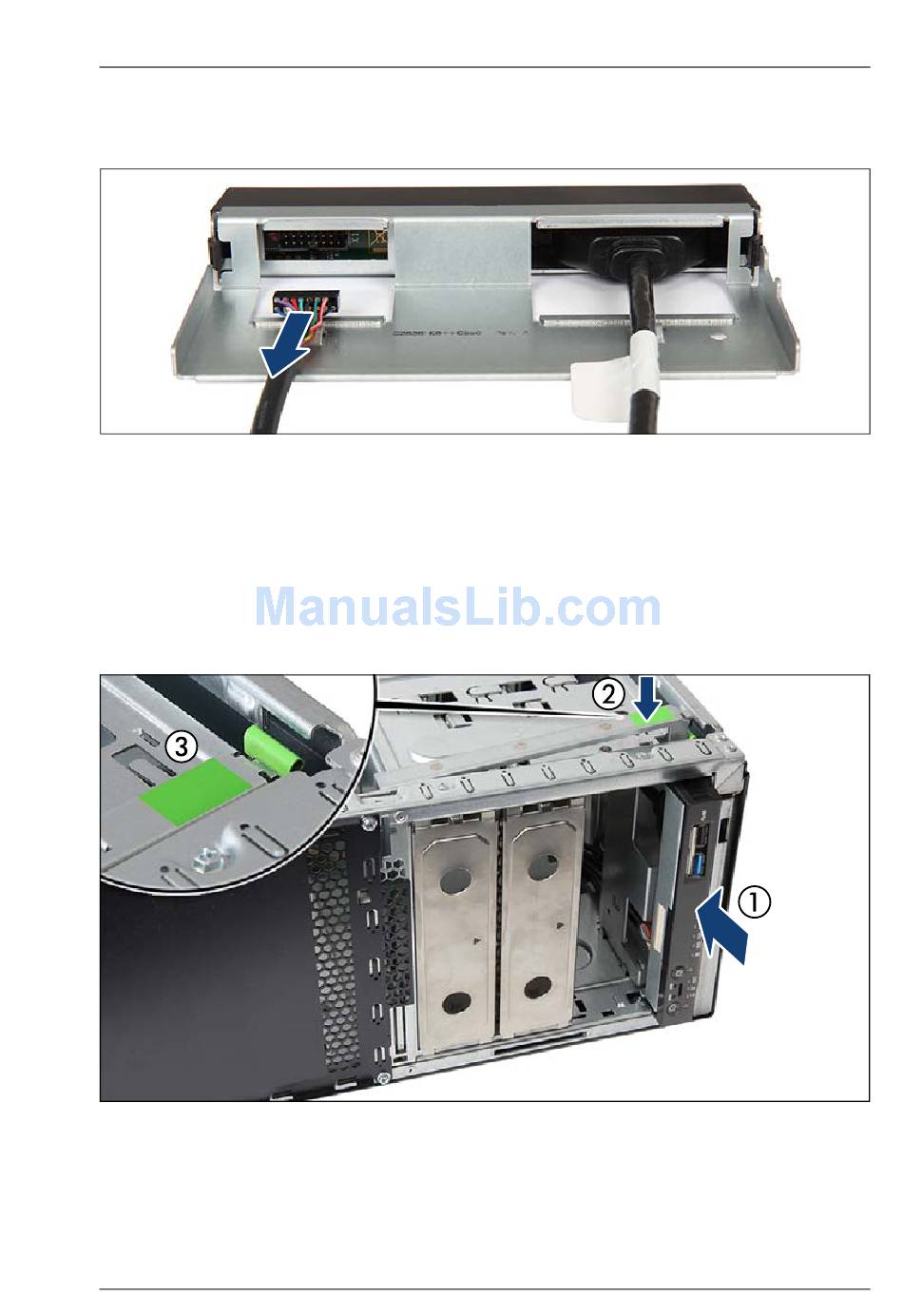

Figure 157: Removing the front panel cable
Ê Remove the front panel cable from the front panel module.

13.1.3 Installing the new front panel module

Ê Connect the front panel cable to the front panel module (see figure 157).
Figure 158: Installing the front panel module
Ê Insert the front panel module into its installation bay and carefully push in
until the front screw hole on the front panel frame lines up with the centering
pin on the locking bar (1).
