Basic hardware procedures
4.4.1.4

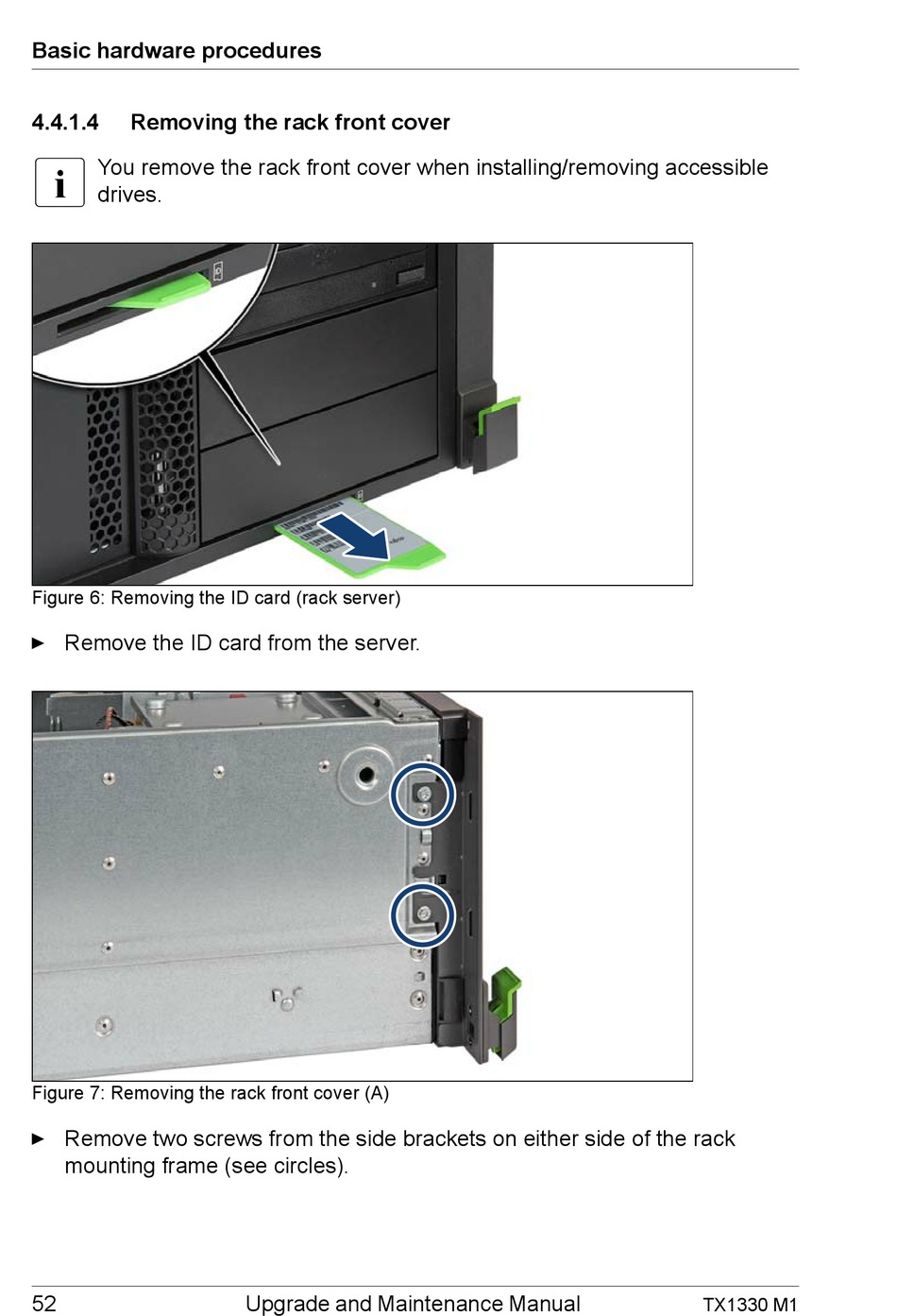

Removing the rack front cover
I
You remove the rack front cover when installing/removing accessible
drives.
Figure 6: Removing the ID card (rack server)
Ê Remove the ID card from the server.
Figure 7: Removing the rack front cover (A)
Ê Remove two screws from the side brackets on either side of the rack
mounting frame (see circles).
52
Upgrade and Maintenance Manual
TX1330 M1
