Installing The Fbu Holder Into The Chassis - Fujitsu Server PRIMERGY TX1330 M1 Upgrade And Maintenance Manual

Expansion cards and backup units
9.5.2.4

Installing the FBU holder into the chassis

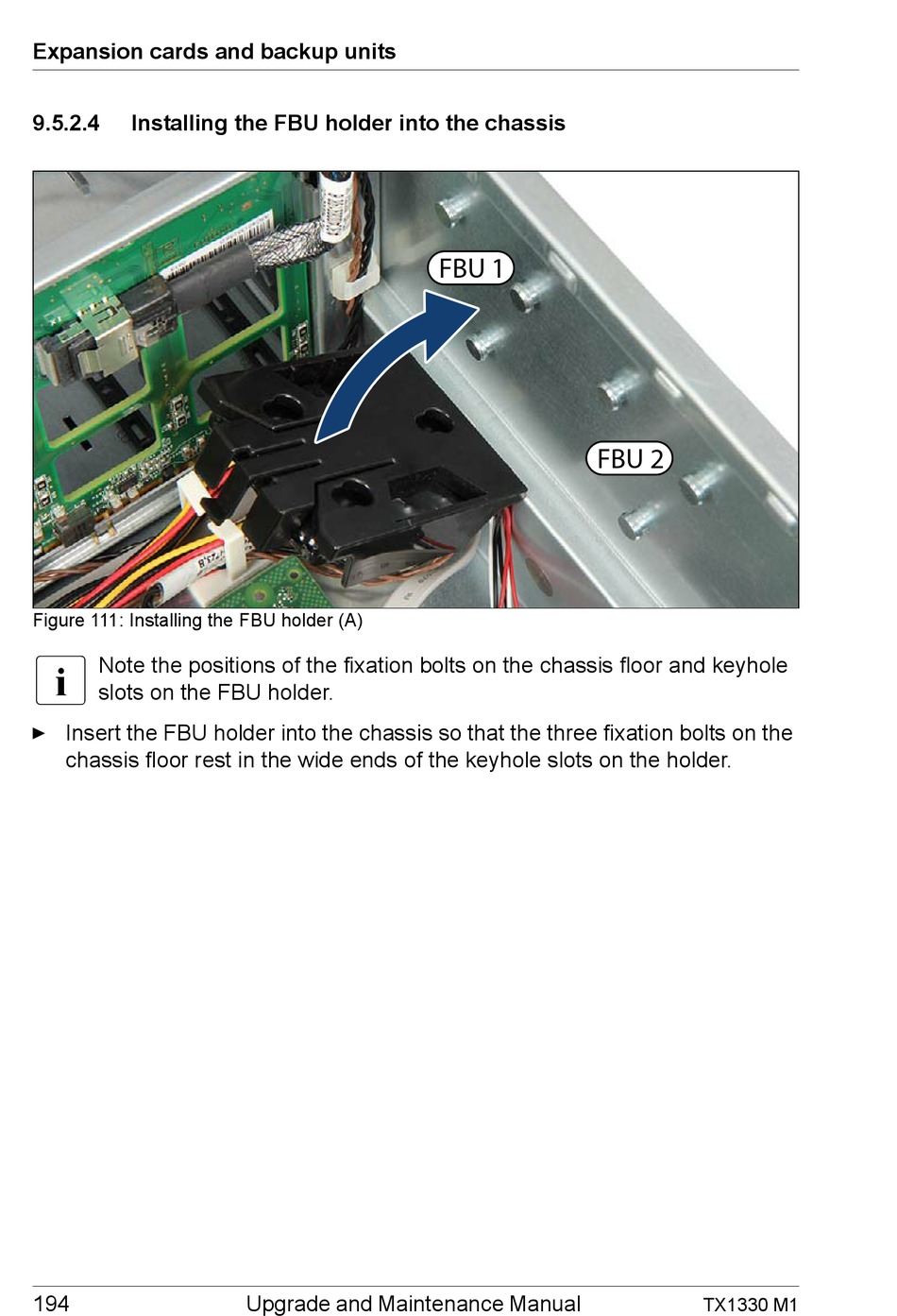

Figure 111: Installing the FBU holder (A)
I
Note the positions of the fixation bolts on the chassis floor and keyhole
slots on the FBU holder.
Ê Insert the FBU holder into the chassis so that the three fixation bolts on the
chassis floor rest in the wide ends of the keyhole slots on the holder.
194 Upgrade and Maintenance Manual
FBU 1
FBU 2
TX1330 M1
