Power supply

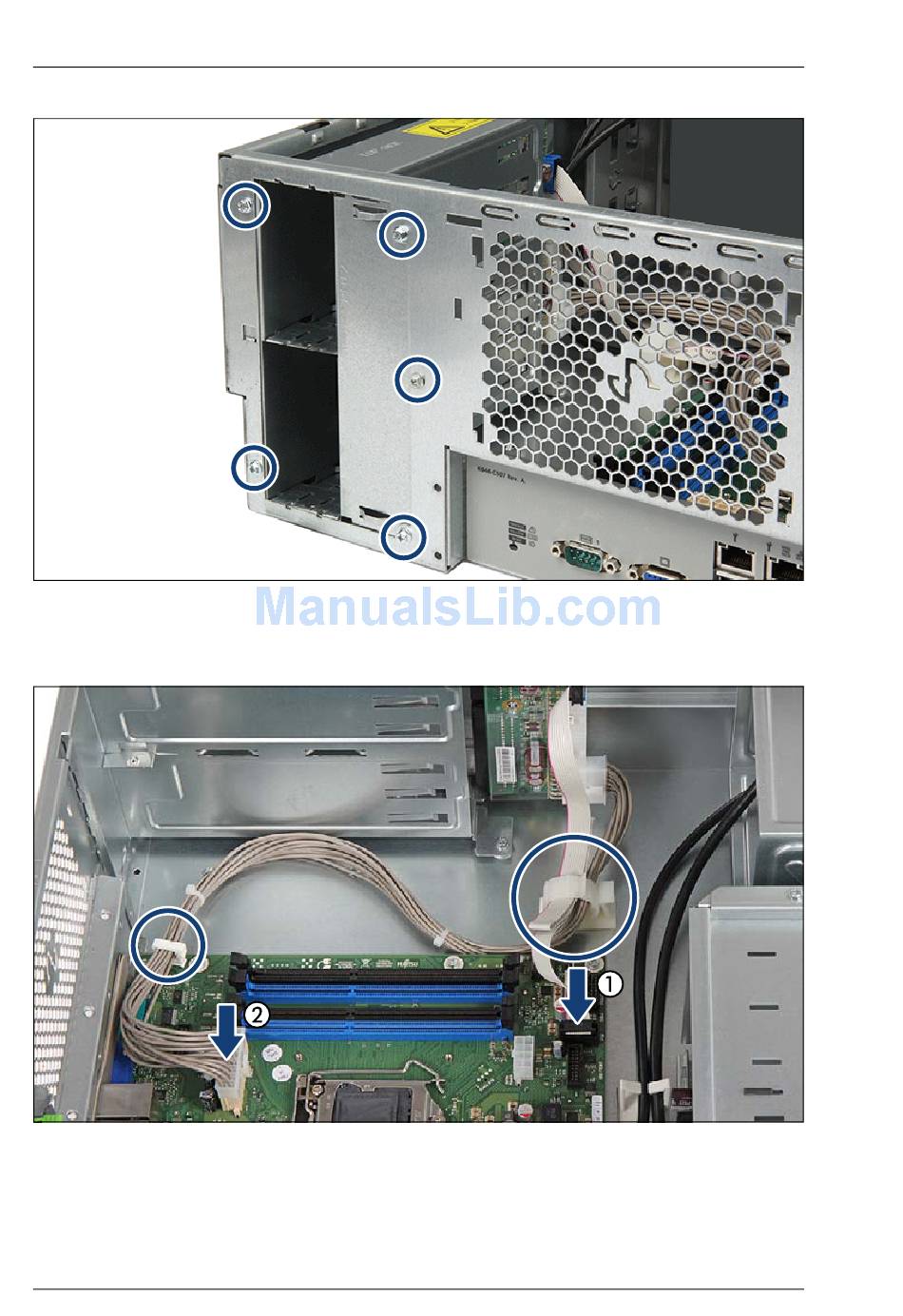

Figure 41: Securing the PSU cage
Ê Secure the PSU cage to the chassis with five screws (see circles)
Figure 42: Connecting power cables to the system board
Ê Connect the black power connector to system board connector "P30" (1)
(see
figure 203 on page
304).
