Expansion cards and backup units
9.5.2.3

Installing the FBU in the holder

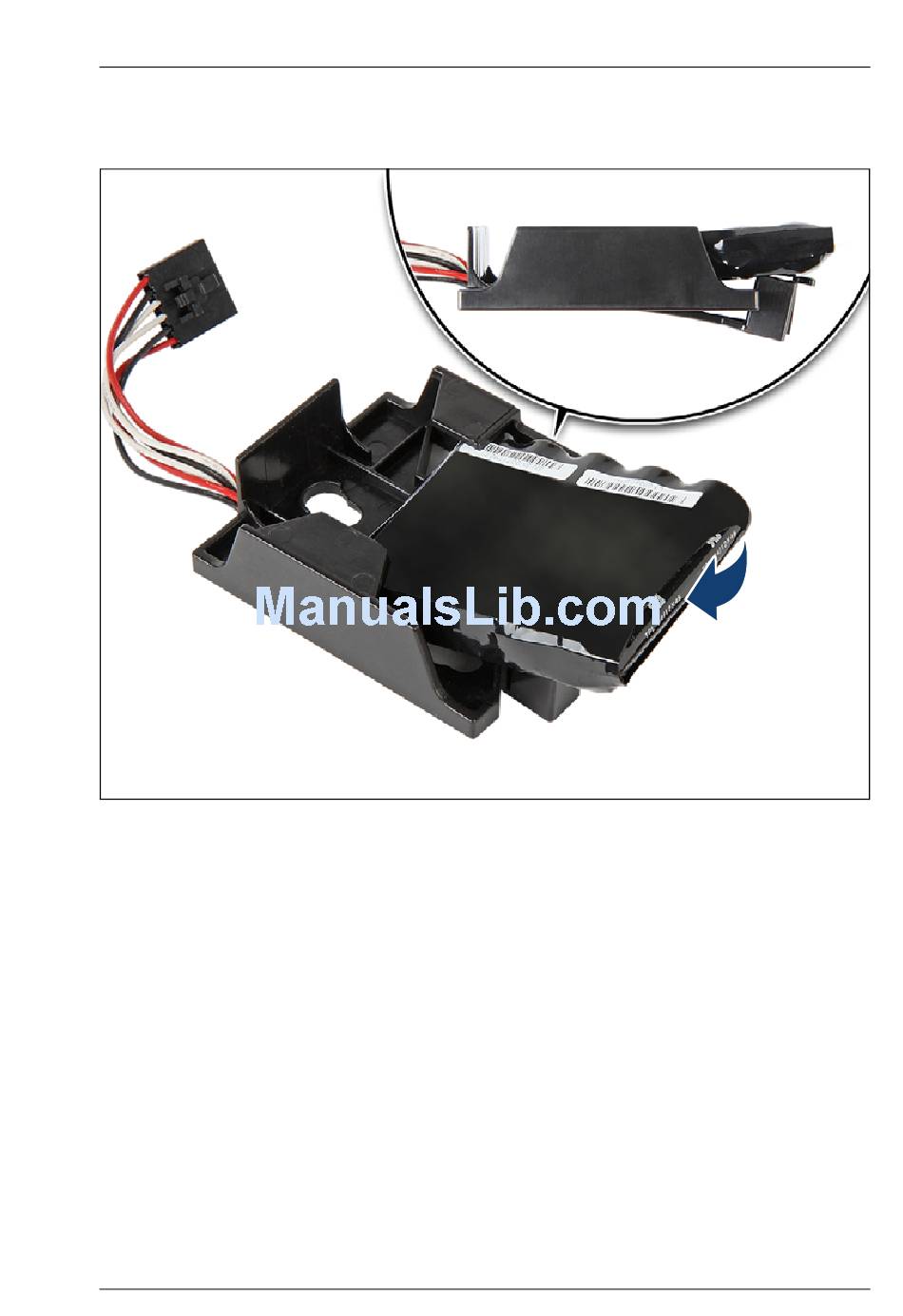

Figure 108: Installing the FBU in the holder (A)
Ê At a slight angle, fit the FBU under the right retaining bracket on the holder.
Ê Push down the FBU until it locks in place.
Upgrade and Maintenance Manual
191
TX1330 M1
