Inch Hdd / Ssd Configurations; Mounting Order; Hdd / Ssd Naming Scheme - Fujitsu Server PRIMERGY TX1330 M1 Upgrade And Maintenance Manual

7.2

2.5-inch HDD / SSD configurations

7.2.1

Mounting order

Maximum configuration: 8x 2.5-inch HDDs / SSDs

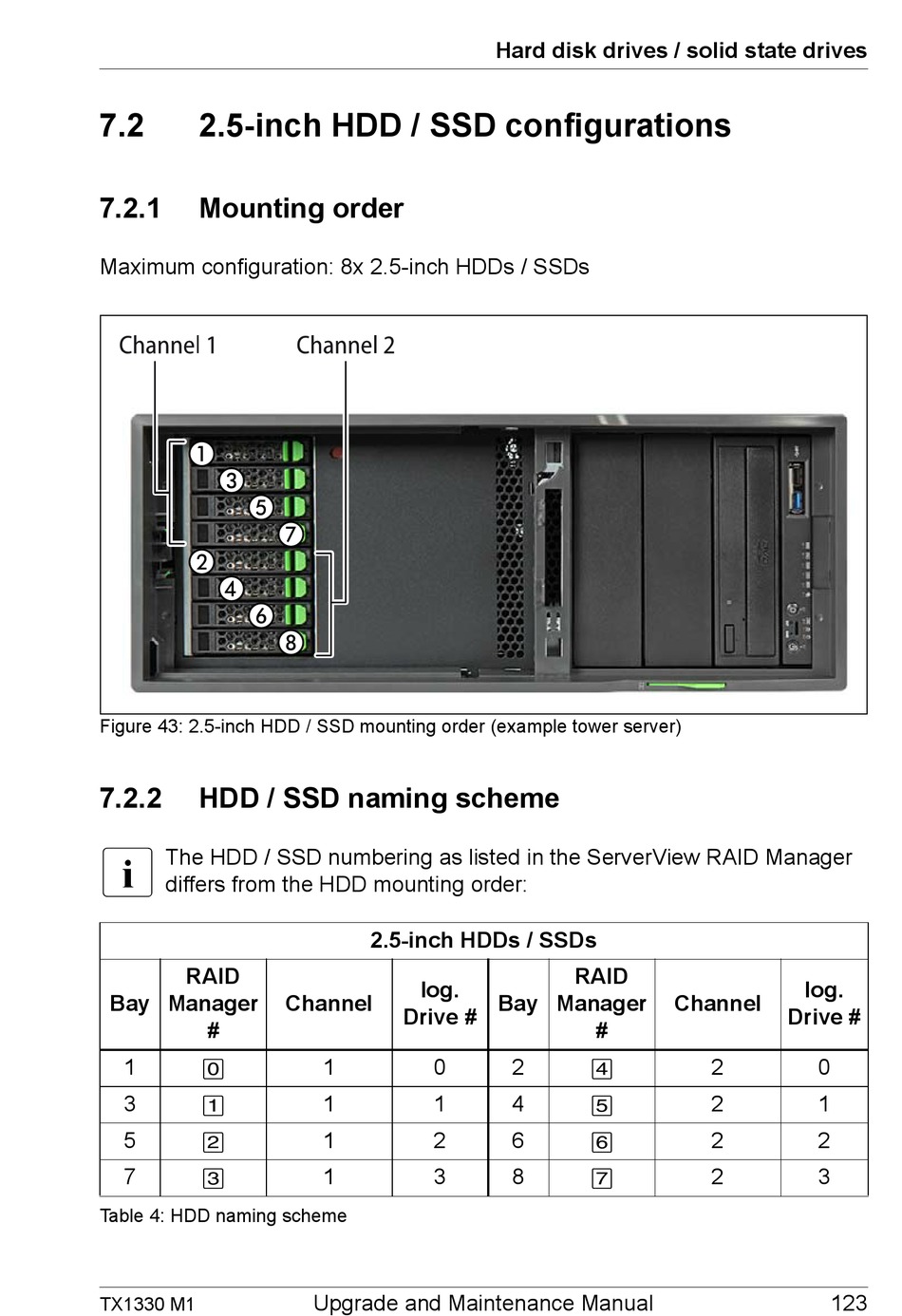

Figure 43: 2.5-inch HDD / SSD mounting order (example tower server)
7.2.2

HDD / SSD naming scheme

I
The HDD / SSD numbering as listed in the ServerView RAID Manager
differs from the HDD mounting order:
RAID
Bay Manager
#
1
[0]
3
[1]
5
[2]
7
[3]
Table 4: HDD naming scheme
TX1330 M1
2.5-inch HDDs / SSDs
log.
Channel
Drive #
1 0
1 1
1 2
1 3
Upgrade and Maintenance Manual
Hard disk drives / solid state drives
RAID
Bay Manager
#
2
[4]
4
[5]
6
[6]
8
[7]
log.
Channel
Drive #
2 0
2 1
2 2
2 3
123
