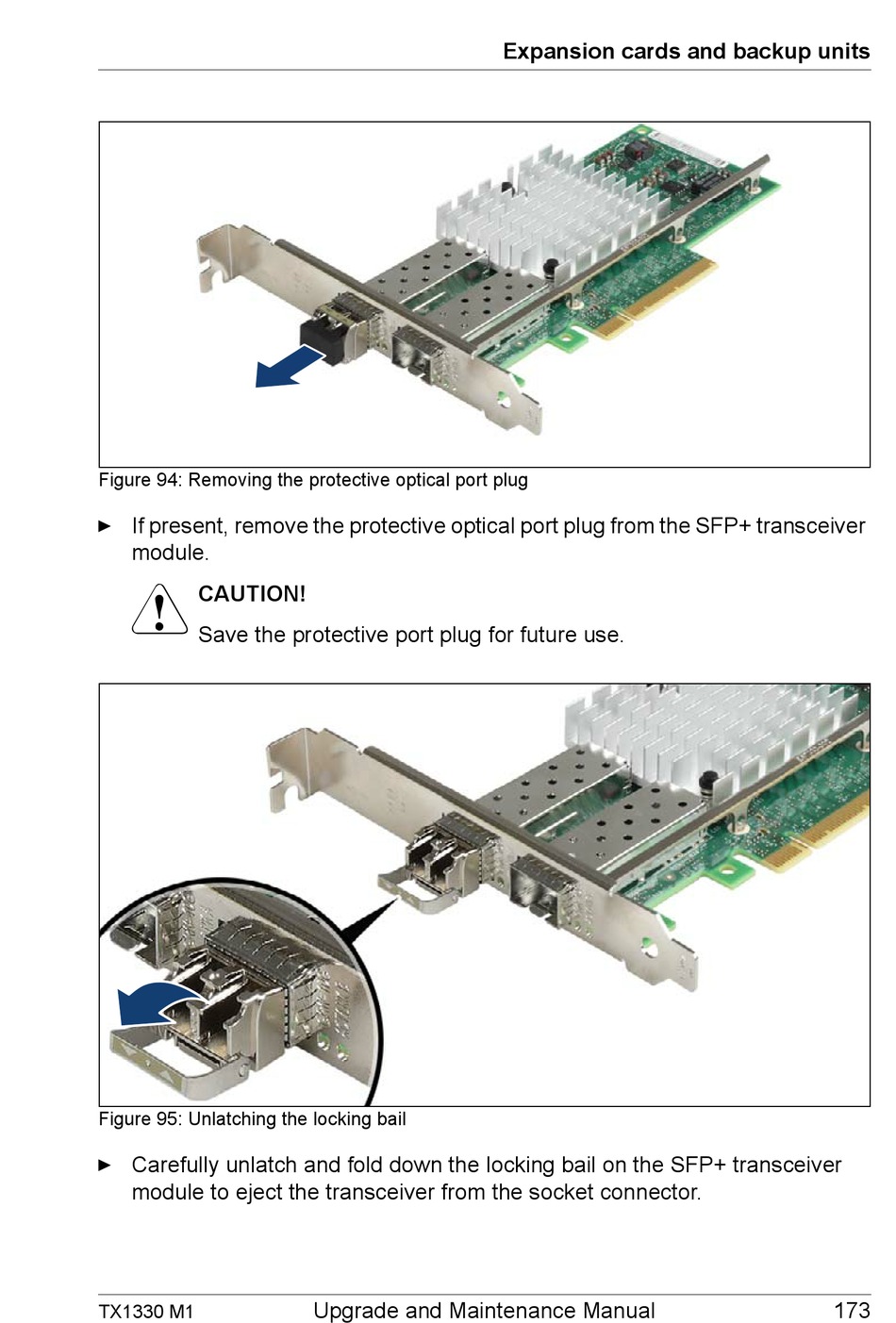

Figure 94: Removing the protective optical port plug
Ê If present, remove the protective optical port plug from the SFP+ transceiver
module.
V
CAUTION!
Save the protective port plug for future use.
Figure 95: Unlatching the locking bail
Ê Carefully unlatch and fold down the locking bail on the SFP+ transceiver
module to eject the transceiver from the socket connector.
TX1330 M1
Upgrade and Maintenance Manual
Expansion cards and backup units
173
