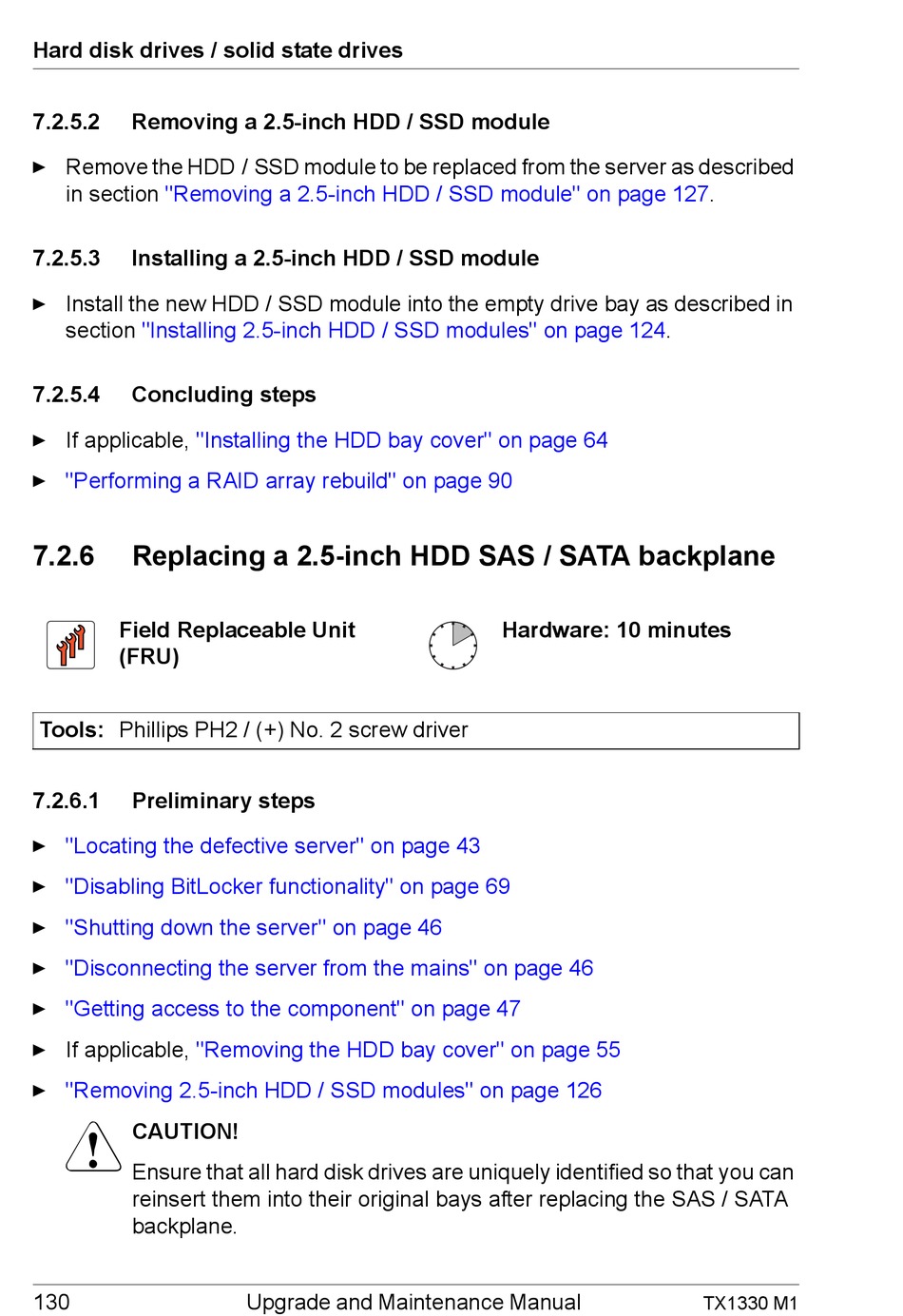

Hard disk drives / solid state drives
7.2.5.2

Removing a 2.5-inch HDD / SSD module

Ê Remove the HDD / SSD module to be replaced from the server as described
in section "Removing a 2.5-inch HDD / SSD module" on page
7.2.5.3

Installing a 2.5-inch HDD / SSD module

Ê Install the new HDD / SSD module into the empty drive bay as described in
section "Installing 2.5-inch HDD / SSD modules" on page
7.2.5.4

Concluding steps

Ê If applicable, "Installing the HDD bay cover" on page 64
"Performing a RAID array rebuild" on page 90
Ê
7.2.6

Replacing a 2.5-inch HDD SAS / SATA backplane

Field Replaceable Unit
(FRU)
Tools: Phillips PH2 / (+) No. 2 screw driver
7.2.6.1

Preliminary steps

"Locating the defective server" on page 43
Ê
"Disabling BitLocker functionality" on page 69
Ê
"Shutting down the server" on page 46
Ê
"Disconnecting the server from the mains" on page 46
Ê
"Getting access to the component" on page 47
Ê
Ê If applicable, "Removing the HDD bay cover" on page 55
"Removing 2.5-inch HDD / SSD modules" on page 126
Ê
V
CAUTION!
Ensure that all hard disk drives are uniquely identified so that you can
reinsert them into their original bays after replacing the SAS / SATA
backplane.
130 Upgrade and Maintenance Manual
124.
Hardware: 10 minutes
127.
TX1330 M1
