17.2.2 Connectors and indicators on the front panel

17.2.2.1 Front panel controls and indicators

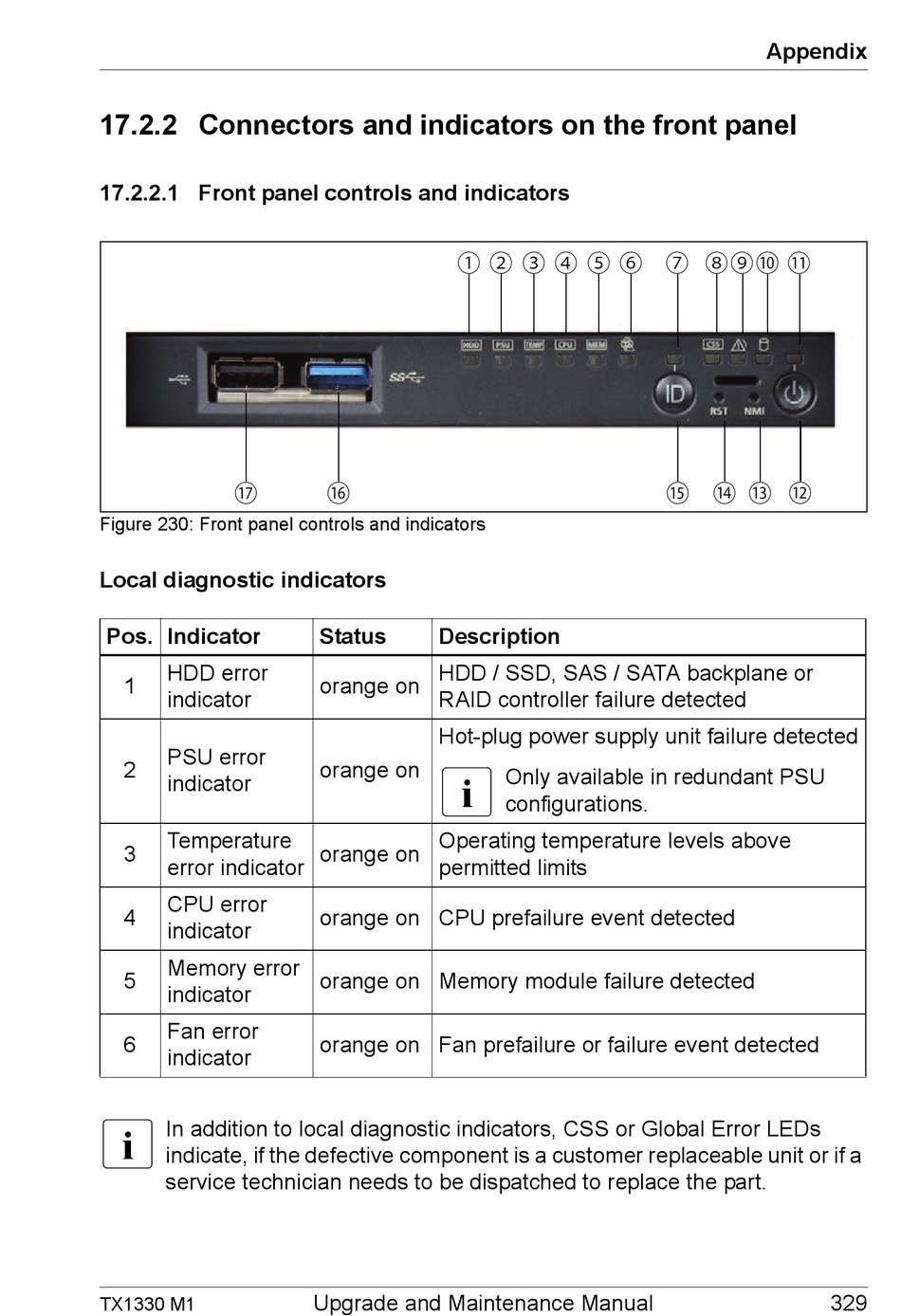

Figure 230: Front panel controls and indicators
Local diagnostic indicators
Pos. Indicator
HDD error
1
indicator
PSU error
2
indicator
Temperature
3
error indicator
CPU error
4
indicator
Memory error
5
indicator
Fan error
6
indicator
I
In addition to local diagnostic indicators, CSS or Global Error LEDs
indicate, if the defective component is a customer replaceable unit or if a
service technician needs to be dispatched to replace the part.
TX1330 M1
Status Description
HDD / SSD, SAS / SATA backplane or
orange on
RAID controller failure detected
Hot-plug power supply unit failure detected
I
orange on
Operating temperature levels above
orange on
permitted limits
orange on CPU prefailure event detected
orange on Memory module failure detected
orange on Fan prefailure or failure event detected
Upgrade and Maintenance Manual
Only available in redundant PSU
configurations.
